HANDLEBAR

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

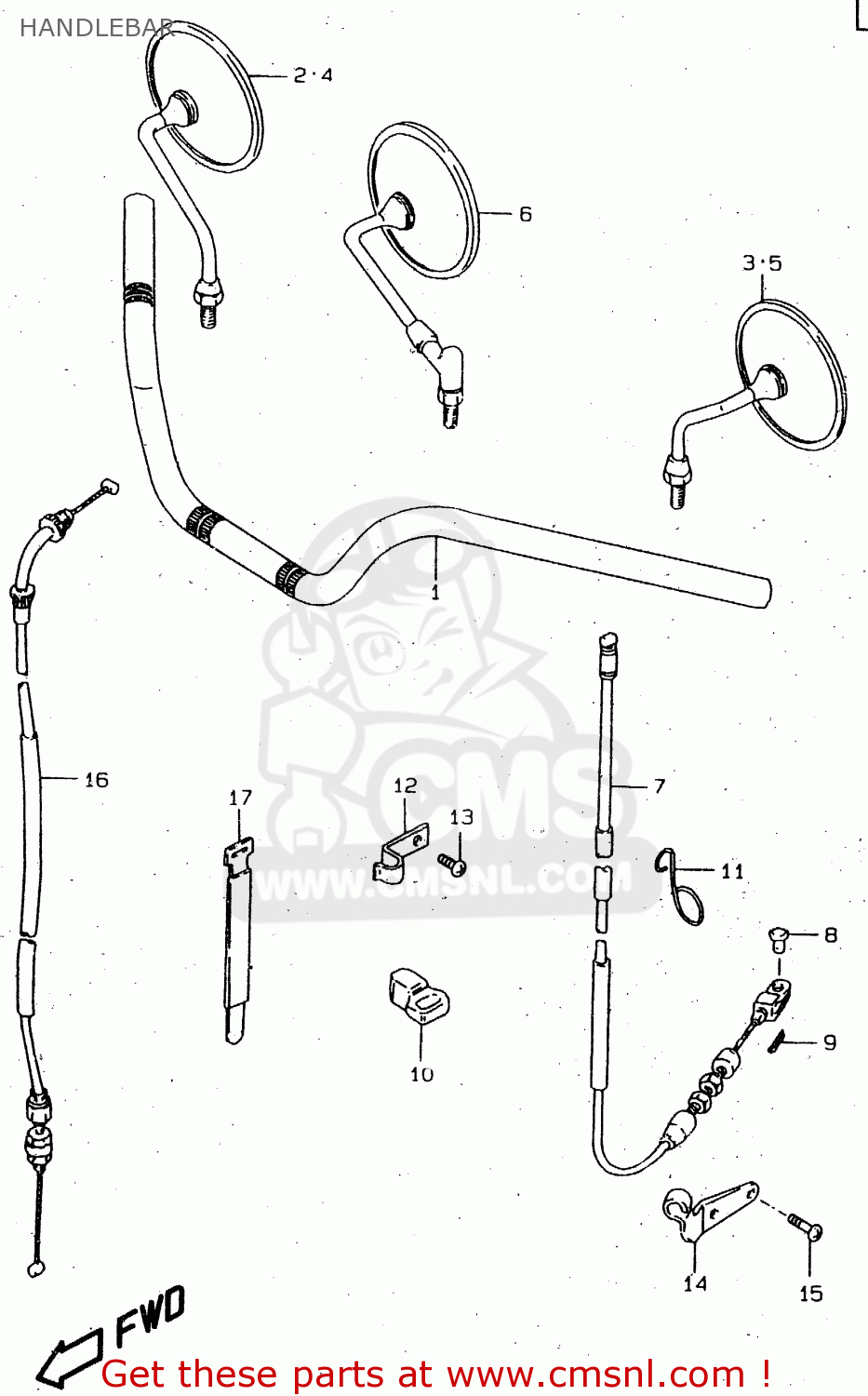

Handlebar diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

HANDLEBAR GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
HANDLEBAR GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
HANDLEBAR GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
5611038311
ref: 1
HANDLEBAR
5611038311
€ 178.00
2
5650044210
ref: 2
E22
MIRROR ASSY,RH
5650044210
€ 72.00
3
5660044210
ref: 3
E22
MIRROR ASSY,LH
5660044210
€ 72.00
4
5650044220
ref: 4
E24
MIRROR, REAR VIEW RH
€ 72.00
4
5650044200
ref: 4
E1,E25,E39,P37
MIRROR ASSEMBLY,RIGHT
5650044200
€ 72.00
5
5660044220
ref: 5
E24
MIRROR, REAR VIEW LH
5660044220
€ 72.00
5
5660044200
ref: 5
E1,E25,E39,P37
MIRROR ASSEMBLY,LEFT
5660044200
€ 72.00
6
5650045640
ref: 6
MIRROR ASSY,RH
5650045640
€ 119.50
6
5650028601
ref: 6
E4
MIRROR ASSY,RH
€ 70.00
7
5820038301
ref: 7
CABLE ASSY,CLUTCH
5820038301
€ 25.50
8
0920006004
ref: 8
PIN(L:13)
0920006004
€ 1.50
9
0411120158
ref: 9
PIN
0411120158
€ 1.50
10
5862138300
ref: 10
GUIDE,CLUTCH CABLE
5862138300
€ 7.00
11
5862138320
ref: 11
E22
GUIDE,CABLE
€ 4.00
12
5862637400
ref: 12
CLAMP,CLUTCH CABLE NO.1
€ 8.50
13
0211216103
ref: 13
SCREW
€ 2.00
14
5863438210
ref: 14
STOPPER,CLUTCH CABLE
5863438210
€ 7.00
15
0211206127
ref: 15
SCREW
0211206127
€ 2.00
16
5830038302
ref: 16
CABLE ASSY,THROTTLE
5830038302
€ 27.00
17
0940725401
ref: 17
CLAMP(L:235)
0940725401
€ 4.00
