FUEL TANK (MODEL X)

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

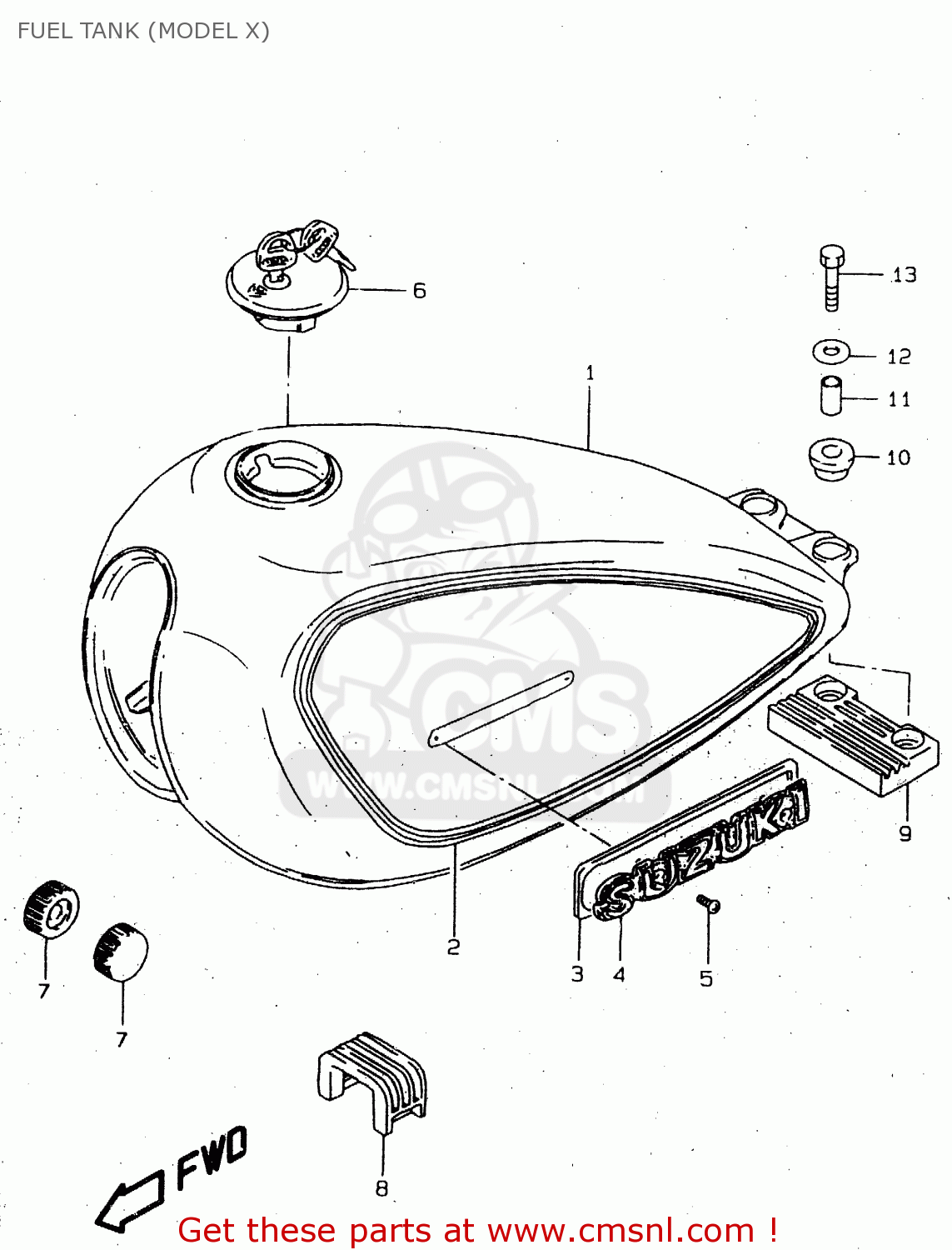

Fuel tank (model x) diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

44100383402AX
ref: 1

TANK ASSY, FUEL (BLACK)

€ 490.50

44100383402HX
ref: 1

TANK ASSY,FUEL(RED)

€ 490.50

44100383401LF
ref: 1
P37

TANK ASSY, FUEL (BLUE)

€ 0.00

44100383D02AX
ref: 1
E22

TANK ASSY, FUEL (BLACK)

€ 490.50

44100383D02HX
ref: 1
E22

TANK ASSY, FUEL (RED)

€ 0.00

6811038330L0W
ref: 2
FOR 2AX

TAPE SET,FUEL TANK STRIPE

€ 101.00

6811038330L0Y
ref: 2
FOR 2HX

TAPE SET, FUEL TANK

€ 101.00

6811038330L0Z
ref: 2
P37 FOR 1LF

TAPE SET, FUEL TANK

€ 0.00

4417544200
ref: 3

CUSHION

€ 5.00

6811115500
ref: 4

EMBLEM,FUEL TANK

€ 28.50

0212203063
ref: 5

SCREW

€ 2.00

4420030830
ref: 6

CAP SET,FUEL TANK

€ 112.00

0932910016
ref: 7

CUSHION

€ 3.00

4454138200
ref: 8

CUSHION,TANK UPR FR

€ 6.00

4454238300
ref: 9

CUSHION,TANK RR NO.1

€ 8.00

0932010022
ref: 10

CUSHION

€ 2.50

0918006067
ref: 11

SPACER(6.5X10.5X22.5)

€ 2.50

0916006054
ref: 12

WASHER(6.5X22X1.6)

€ 2.00

0910006033
ref: 13

BOLT(6X35)

€ 12.50
