CYLINDER HEAD

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

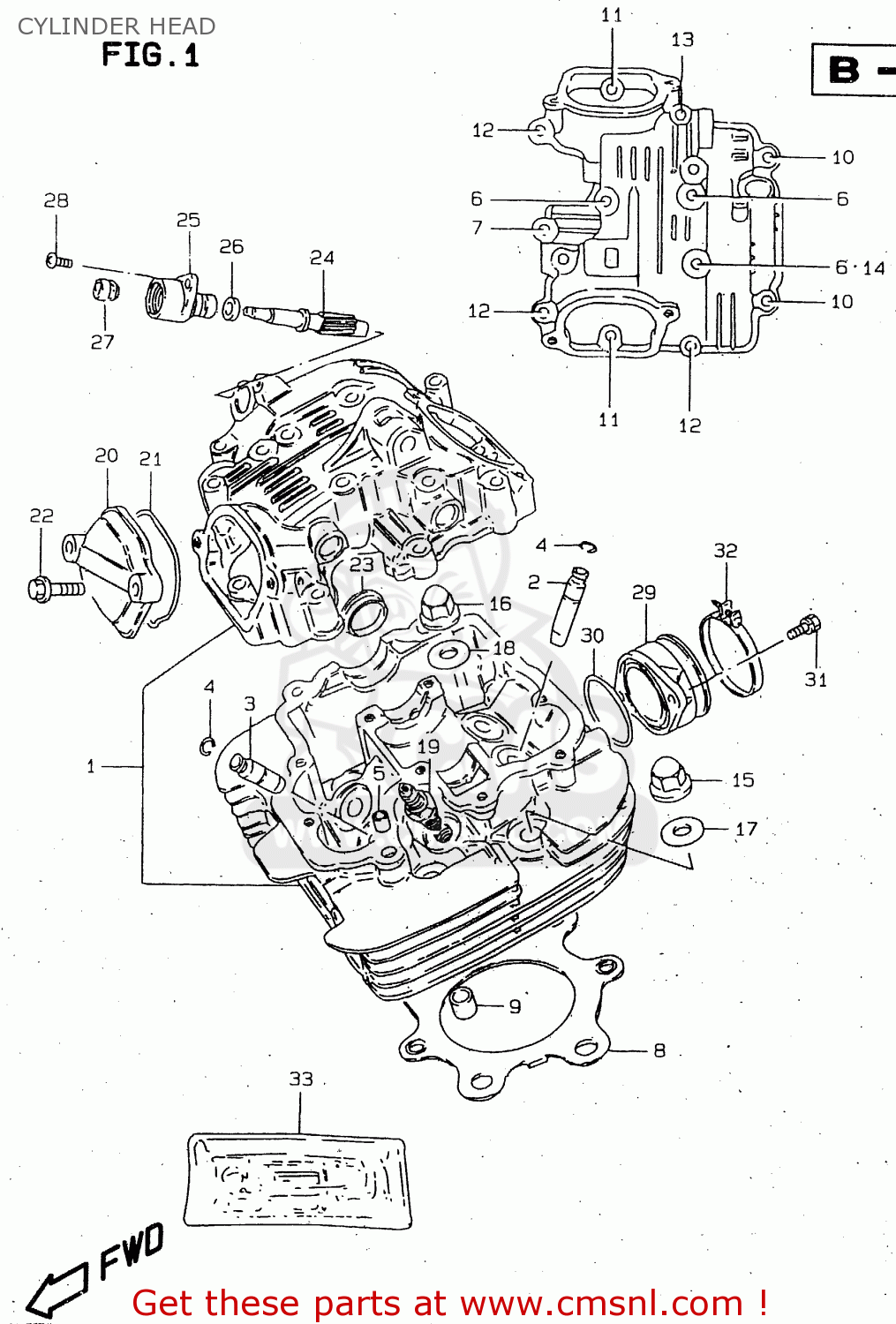

Cylinder head diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

CYLINDER HEAD GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
CYLINDER HEAD GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
CYLINDER HEAD GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
1110038202
ref: 1
HEAD,CYLINDER
€ 787.00
2
1111538270
ref: 2
GUIDE,INTAKE VALVE
1111538270
€ 25.50
3
1111505270
ref: 3
GUIDE,VALVE
1111505270
€ 18.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0155006607
ref: 6
BOLT
0155006607
€ 2.50
7
0155006307
ref: 7
BOLT
0155006307
€ 2.00
8
1114138200
ref: 8
MODEL T/W
GASKET,CYLINDER HEAD (NAS)
1114138200
€ 37.50
8
1114138201
ref: 8
MODEL X
GASKET,CYLINDER HEAD (NAS)
1114138201
€ 37.50
9
0421113189
ref: 9
PIN
0421113189
€ 2.50
10
0910306052
ref: 10
BOLT(6X115)
0910306052
€ 5.00
11
0155006307
ref: 11
BOLT
0155006307
€ 2.00
12
0155006457
ref: 12
BOLT
0155006457
€ 2.50
13
0155006607
ref: 13
BOLT
0155006607
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15
0915910026
ref: 15
NUT
0915910026
€ 6.00
16
0915910069
ref: 16
NUT
0915910069
€ 5.00
17
0916010060
ref: 17
<-09160-10039
WASHER (10.5X22X2.3)
0916010060
€ 2.50
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
19
0948200149
ref: 19
MODEL T
SPARK PLUG DR8ES-L
0948200149
€ 3.50
19
0948200399
ref: 19
MODEL W/X
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
19
0948200223
ref: 19
PLUG,SPARK(X24ESR-U)
€ 3.50
19
0948200144
ref: 19
MODEL T E1,E24
SPARK PLUG D8EA
0948200144
€ 3.50
19
0948200145
ref: 19
MODEL T E1,E24
SPARK PLUG X24ES-U
€ 3.50
20
1117538202
ref: 20
CAP,INSPECTION
1117538202
€ 23.50
12
0928055003
ref: 12
O RING(D:2.4,ID:23)
0928055003
€ 4.50
22
0155006257
ref: 22
BOLT
0155006257
€ 2.50
23
0924130004
ref: 23
PLUG(OD:30)
0924130004
€ 6.50
24
2643137401
ref: 24
GEAR,TACHOMETER DRIVEN
2643137401
€ 35.00
25
2644149000
ref: 25
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
26
2645145000A
ref: 26
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
27
0928905002
ref: 27
SEAL,OIL(5X12X8)
0928905002
€ 11.00
28
0912805101
ref: 28
SCREW(5X12)
0912805101
€ 1.50
29
1311038200
ref: 29
PIPE,INTAKE
1311038200
€ 38.50
30
0928040010
ref: 30
<-09280-40003
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
31
0211236163
ref: 31
SCREW
0211236163
€ 2.50
32
0940252208
ref: 32
CLAMP
0940252208
€ 5.50
33
1140038828
ref: 33
GASKET SET
€ 97.00
