FOOTREST

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

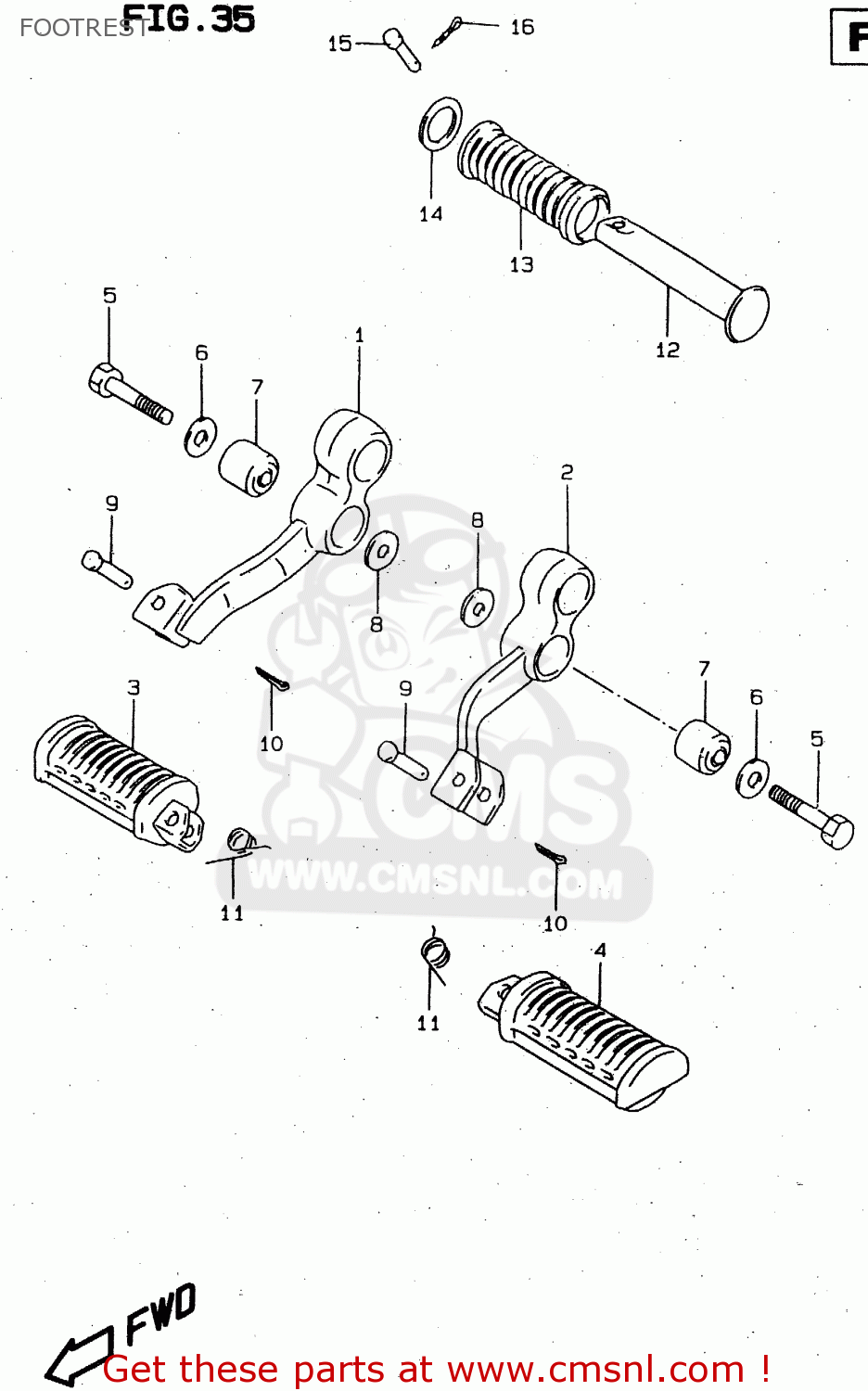

Footrest diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

4351038311
ref: 1

BAR,FRONT FOOTREST,RIGHT

€ 52.50

4352038350
ref: 2

BAR,FR FOOTREST,L

€ 54.00

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

0911610123
ref: 5

BOLT(10X35)

€ 5.50

0916010059
ref: 6
MODEL T

WASHER

€ 2.50

0916010123
ref: 6
MODEL W/X

WASHER(10.5X20X2.3)

€ 2.00

0931910047
ref: 7

BUSH

€ 8.00

0916010085
ref: 8
MODEL T

WASHER (10X20X2.3)

€ 2.00

0920008002
ref: 9

PIN

€ 2.00

0411120208
ref: 10

PIN 20X20

€ 1.50

0944814012
ref: 11

SPRING

€ 3.00

4361038300
ref: 12

BAR,PILLION FOOTREST

€ 21.50

4361203001
ref: 13

RUBBER,PILLION FOOTREST

€ 3.50

0916019006
ref: 14
MODEL T

WASHER (19.5X32X2)

€ 2.00

0916019024
ref: 14
MODEL W/X

WASHER(19.5X32X2)

€ 2.00

0920006033
ref: 15

PIN

€ 2.00

0411120158
ref: 16

PIN

€ 1.50
