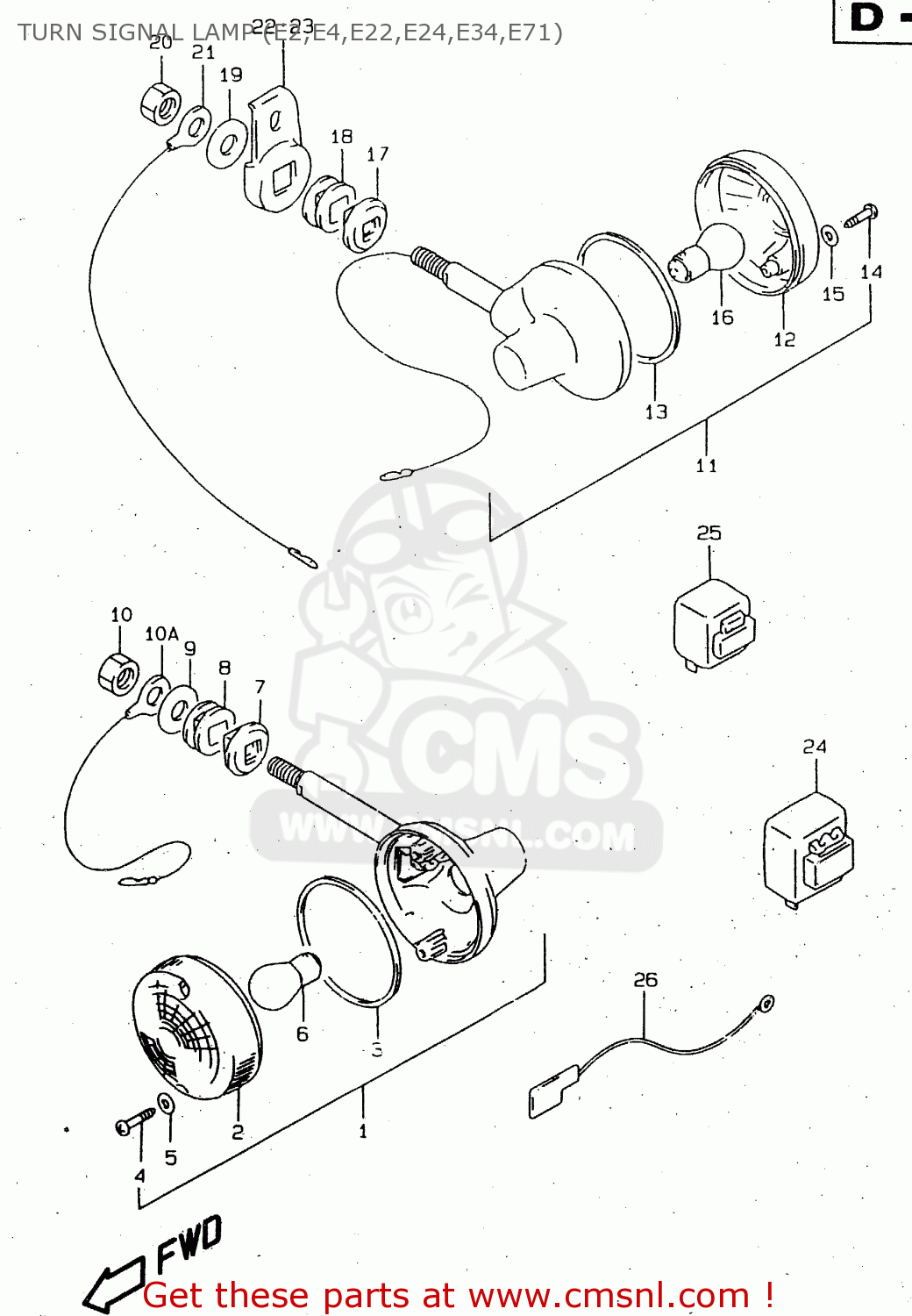

TURN SIGNAL LAMP (E2,E4,E22,E24,E34,E71)

ref

part #

description

quantity

1

3560139370999
ref: 1
<-35601-39370

LAMP ASSY,FR TURN SIGNAL

€ 78.50

2

3561202460
ref: 2

LENS

€ 9.00

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

3569536590
ref: 7

SPACER

€ 6.00

8

3569032200
ref: 8

CUSHION

€ 38.50

9

0916010006
ref: 9
MODEL T

WASHER (10.5X30X2.3)

€ 2.50

9

0916010501
ref: 9
MODEL W/X

WASHER(10.5X30X2.3)

€ 2.50

10

0831000107
ref: 10

NUT

€ 2.50

10A

3666033000
ref: 10A

LEAD WIRE,EARTH

€ 5.00

11

3560326420999
ref: 11

LAMP ASSY,RR TURNSIGNAL

€ 78.50

11

3560339380
ref: 11
E22

LAMP ASSY,RR TURNSIGNAL

€ 102.50

12

3565202470
ref: 12

LENS

€ 7.00

13

3561328620
ref: 13

GASKET (NAS)

€ 7.00

14

0321104208
ref: 14

SCREW

€ 1.50

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

3569536590
ref: 17

SPACER

€ 6.00

18

0932015004
ref: 18

CUSHION

€ 5.00

19

0916010006
ref: 19
MODEL T

WASHER (10.5X30X2.3)

€ 2.50

19

0916010501
ref: 19
MODEL W/X

WASHER(10.5X30X2.3)

€ 2.50

20

0831000107
ref: 20

NUT

€ 2.50

21

3686244000
ref: 21

LEAD WIRE,EARTH

€ 4.00

22

3562138300
ref: 22

BRACKET,RR TURNSIGNAL LAMP,R

€ 7.00

23

3564138300
ref: 23

BRACKET,RR TURNSIGNAL LAMP,L

€ 7.00

24

3861031X50
ref: 24

RELAY ASSY,TURNSIGNAL

€ 54.50

25

3861006F00
ref: 25
E22,<-38610-45091

RELAY ASSY,TURNSIGNAL

€ 67.50

26

3685135010
ref: 26
E22

LEAD WIRE

€ 6.00

all assemblies
