MAGNETO

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

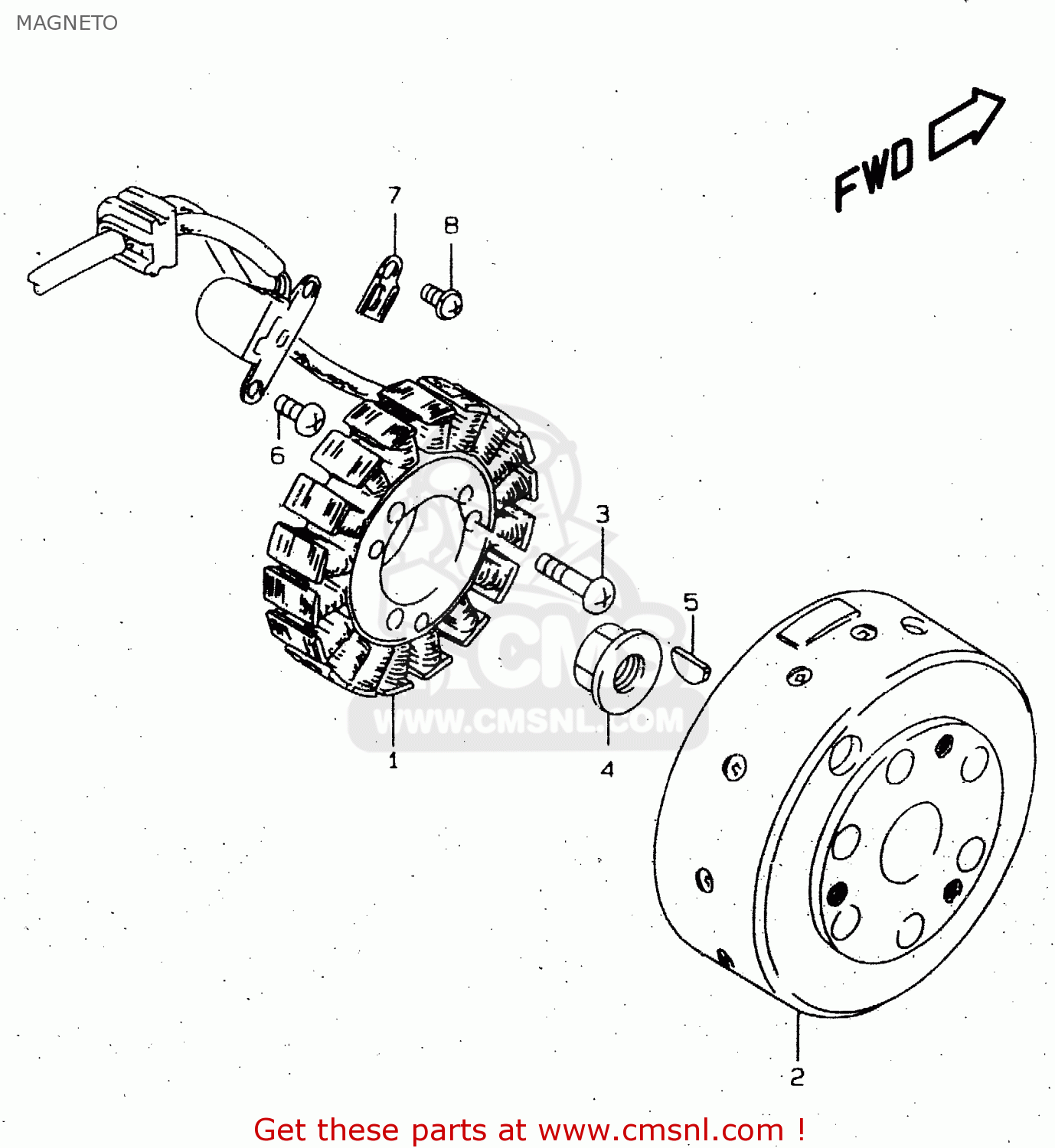

Magneto diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

MAGNETO GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
MAGNETO GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
MAGNETO GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
3210138302
ref: 1
STARTER ASSY
3210138302
€ 665.00
2
3210238301
ref: 2
ROTOR
€ 309.00
3
0211206253
ref: 3
SCREW
0211206253
€ 1.50
4
3179249200
ref: 4
NUT,GENERATOR ROTOR
3179249200
€ 10.00
5
0834131039
ref: 5
KEY
0834131039
€ 2.00
6
0211205103
ref: 6
SCREW
0211205103
€ 2.00
7
3149745000
ref: 7
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
8
0214235083
ref: 8
SCREW
€ 2.50
