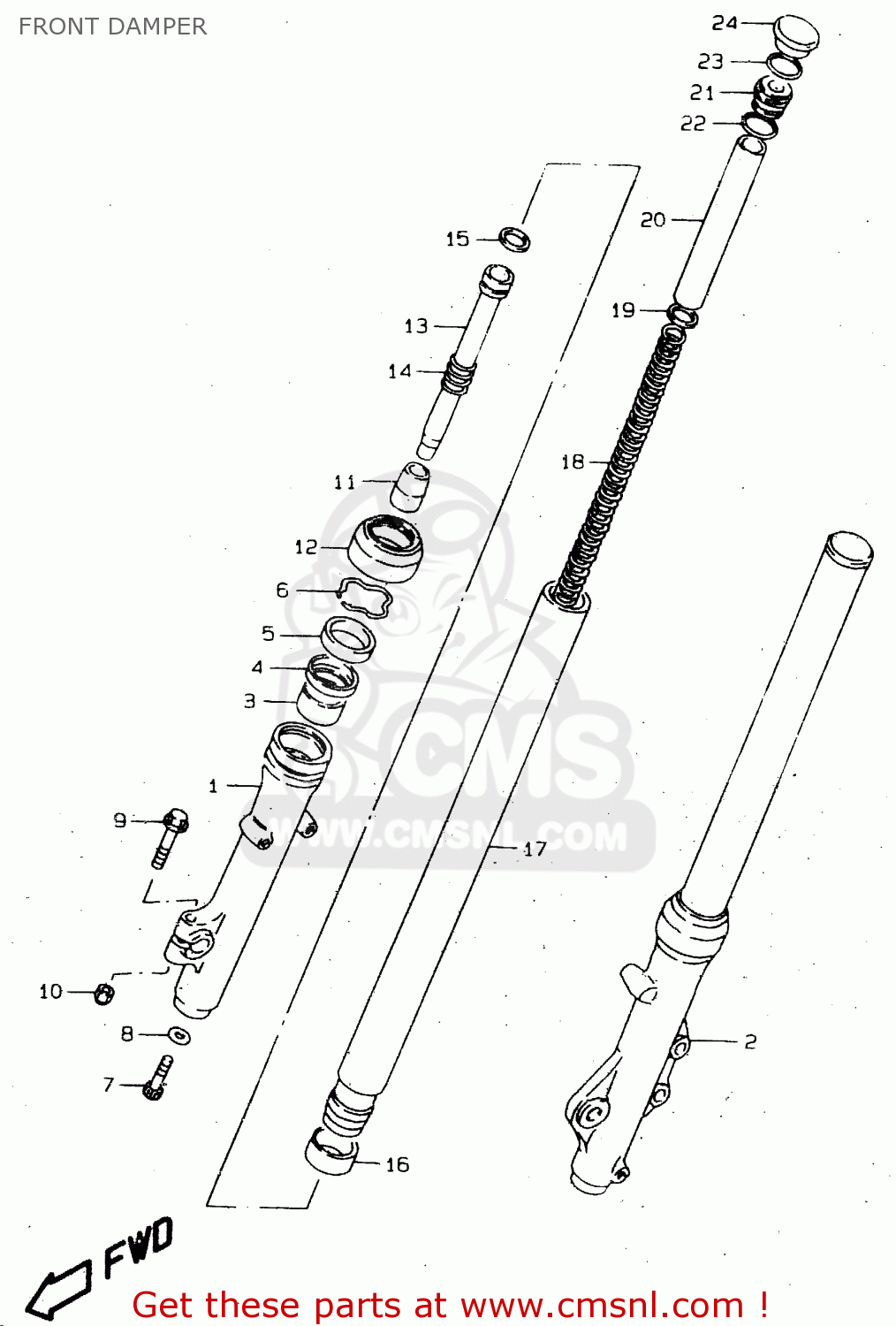

FRONT DAMPER

ref

part #

description

quantity

0

5110338301
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 447.00

0

5110438311
ref: 0

DAMPER ASSEMBLY,LEFT

€ 447.00

1

5113038301
ref: 1

TUBE,OUTER,R

€ 272.00

2

5114038311
ref: 2

TUBE,OUTER,L

€ 272.00

3

5115211420
ref: 3

BUSH,GUIDE

€ 16.50

4

5116838301
ref: 4

SPACER

€ 4.00

5

5115302B00
ref: 5

SEAL,OIL

€ 15.00

6

5115602B00
ref: 6

RING,OIL SEAL STOPPER

€ 4.50

7

5114748130
ref: 7

BOLT(8X27)

€ 3.50

8

5114836011
ref: 8

GASKET (NAS)

€ 4.00

9

0155008457
ref: 9

BOLT

€ 4.00

10

0831610087
ref: 10

NUT

€ 2.50

11

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

12

5157137310
ref: 12

DUST SEAL

€ 22.00

13

5114638300
ref: 13

CYLINDER

€ 42.00

14

5117736030
ref: 14

SPRING,REBOUND

€ 4.50

15

5119633130
ref: 15

RING,PISTON

€ 7.50

16

5112111420
ref: 16

BUSH

€ 16.50

17

5111038300
ref: 17

TUBE,INNER

€ 217.00

18

5117138300
ref: 18

SPRING

€ 32.50

19

5117236331
ref: 19

SEAT,SPRING

€ 2.50

20

5117636331
ref: 20

SPACER,FRONT FORK SPRING

€ 4.00

21

5117548500
ref: 21

SEAT,SPRING

€ 9.00

22

5118133131
ref: 22

O RING

€ 5.00

23

5116948500
ref: 23

RING,STOPPER

€ 2.00

24

5118944031
ref: 24

CAP

€ 7.00

all assemblies
