AIR CLEANER (E2, E4, E17, E18, E21, E22, E24)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

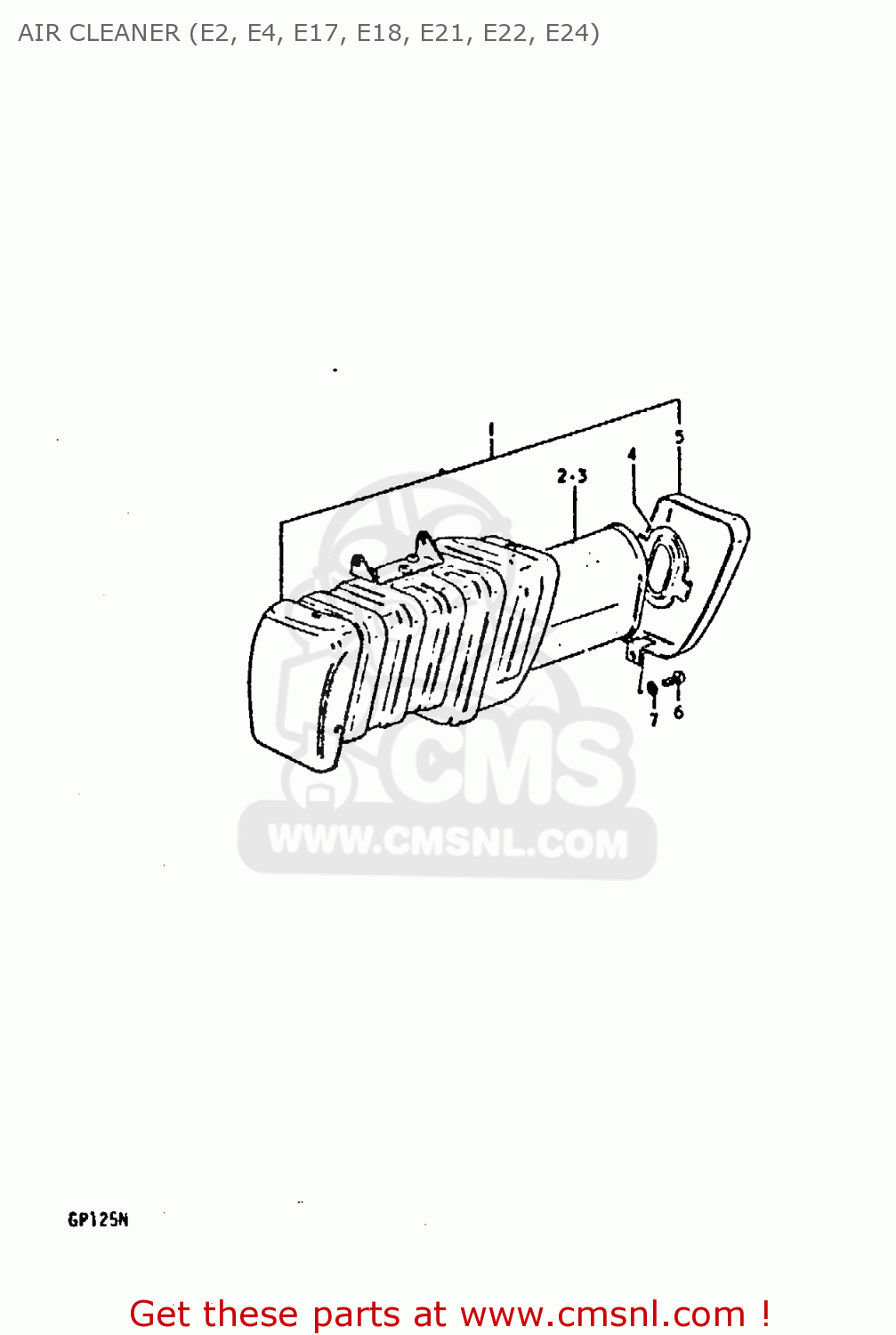

Air cleaner (e2, e4, e17, e18, e21, e22, e24) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

AIR CLEANER (E2, E4, E17, E18, E21, E22, E24) GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

AIR CLEANER (E2, E4, E17, E18, E21, E22, E24) GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1

1370039110
ref: 1

CLEANER ASSY, AIR

€ 127.00

2

1378039110
ref: 2

FILTER ASSY,AIR CLEANER

€ 39.00

3

1378139110
ref: 3

FILTER

€ 17.50

4

1378539110
ref: 4

HOLDER

€ 3.50

5

1377239110
ref: 5

COVER

€ 19.00

6

0211205108
ref: 6

SCREW

€ 2.00

7

0832121058
ref: 7

LOCK WASHER

€ 2.00
