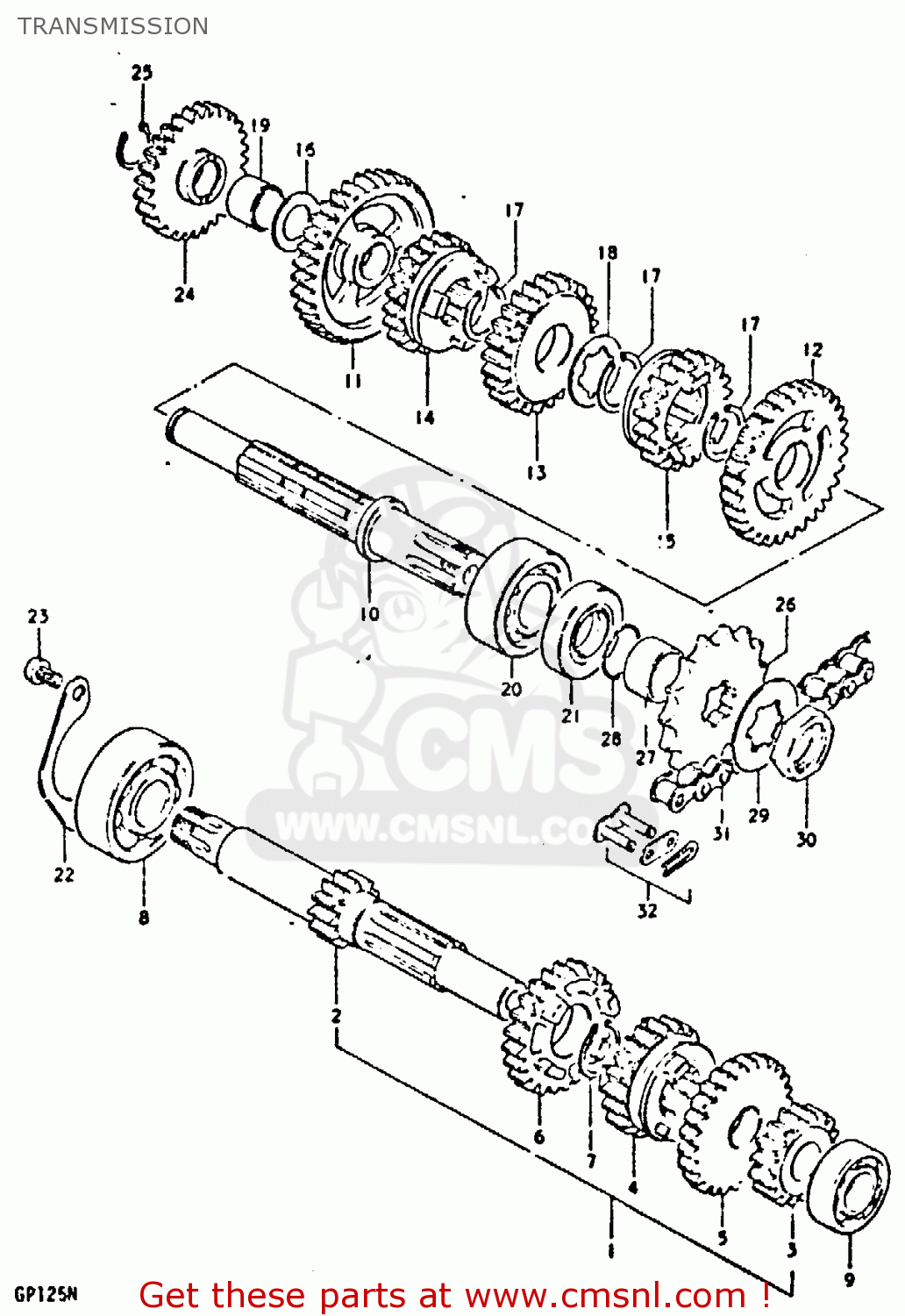

TRANSMISSION

ref

part #

description

quantity

1

2412039100
ref: 1

SHAFT, COUNTER

€ 206.50

2

2412139100
ref: 2

COUNTER SHAFT (NT:11)

€ 87.50

3

2422141301
ref: 3

GEAR,SECOND DRIVE

€ 29.00

4

2423139101
ref: 4

GEAR, 3RD DRIVE (NT:20)

€ 49.50

5

2424139100
ref: 5

GEAR, 4TH DRIVE (NT:23)

€ 48.00

6

2425039101
ref: 6

GEAR, 5TH DRIVE (NT:25)

€ 41.00

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8

0811362040
ref: 8

Bearing

€ 28.00

9

0811360020
ref: 9

BEARING

€ 14.00

10

2413139100
ref: 10

SHAFT, DRIVE

€ 78.00

11

2431048001
ref: 11

GEAR,1ST DRIVEN

€ 54.50

12

2432139100
ref: 12

GEAR, 2ND DRIVEN (NT:29)

€ 44.00

13

2432139100
ref: 13

GEAR, 2ND DRIVEN (NT:29)

€ 44.00

14

2434139100
ref: 14

GEAR, 4TH DRIVEN (NT:22)

€ 43.00

15

2435139100
ref: 15

GEAR, 5TH DRIVEN (NT:20)

€ 41.00

16

0821115241
ref: 16

WASHER,THRUST

€ 4.00

17

0938020007
ref: 17

CIRCLIP

€ 3.00

18

0916720007
ref: 18

WASHER

€ 3.00

19

0930315004
ref: 19

BUSH

€ 5.50

20

0811362040
ref: 20

Bearing

€ 28.00

21

0928325035
ref: 21

SEAL,OIL(25X40X7)

€ 6.50

22

2474148000
ref: 22

RETAINER,CNTR SHAFT BEARING

€ 5.50

23

0211206128
ref: 23

SCREW 6X12

€ 2.00

24

2626028002
ref: 24

GEAR,KICK STARTER IDLE

€ 38.00

25

0833131159
ref: 25

CIRCLIP,15MM

€ 2.00

26

2751148000
ref: 26

SPROCKET,ENGINE

€ 24.50

27

0918020039
ref: 27

SPACER(20X25X12.5)

€ 9.50

28

0928020001
ref: 28

O RING(D:1,ID:19.5)

€ 2.00

29

0916720006
ref: 29

WASHER,LOCK

€ 3.00

30

0914020001
ref: 30

NUT

€ 3.50

31

2760029070
ref: 31
8*122@r118L

CHAIN ASSEMBLY,DRIVE

€ 46.50

32

2762020210
ref: 32

JOINT ASSEMBLY,CHAIN

€ 7.00
