REAR BRAKE

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

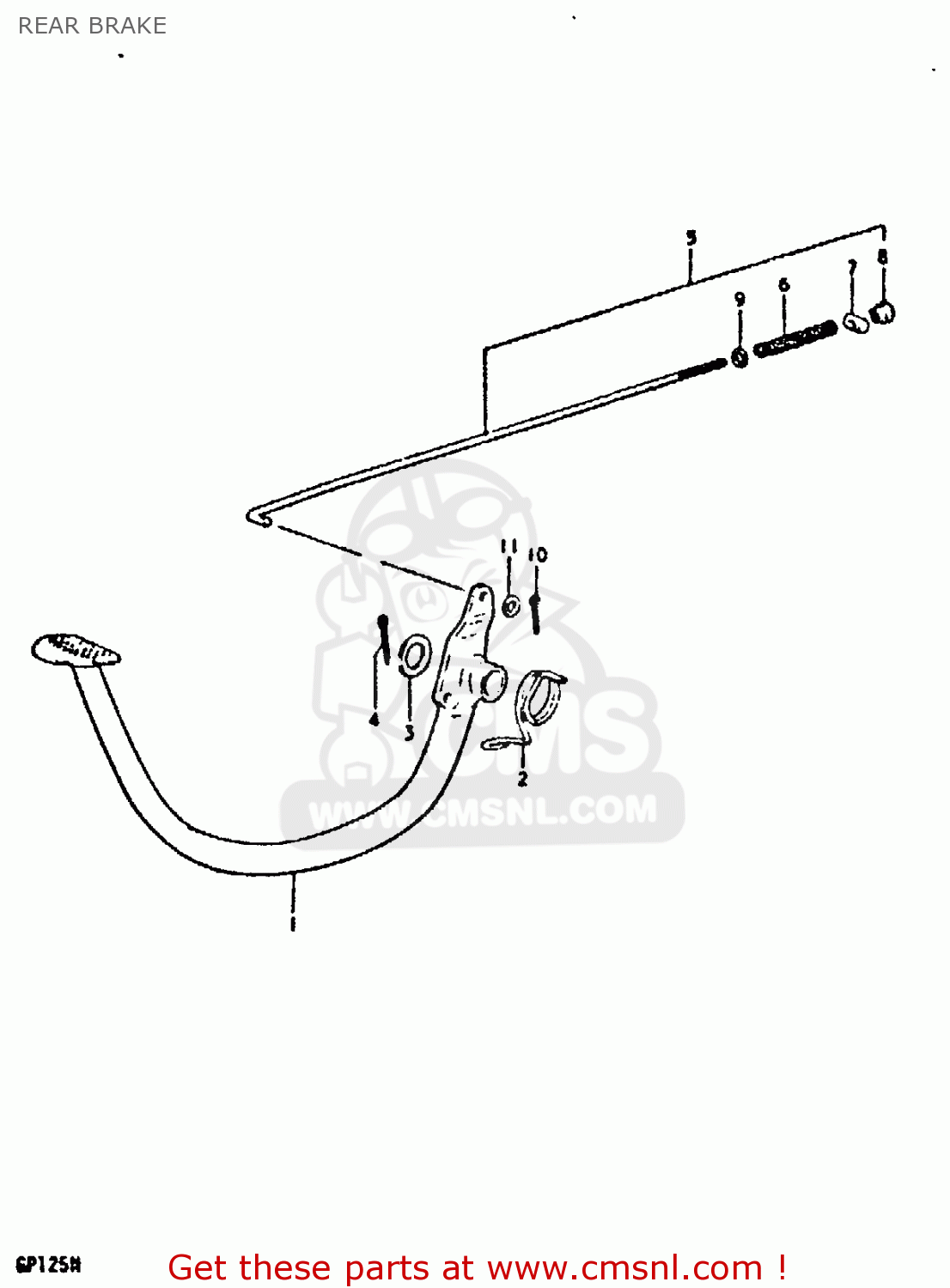

Rear brake diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

4311039600
ref: 1

PEDAL,BRAKE

€ 281.00

0944831013
ref: 2

SPRING

€ 3.00

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

0411130308
ref: 4

COTTER PIN

€ 1.50

4330039100
ref: 5

ROD ASSY, REAR BRAKE

€ 16.00

0944009004
ref: 6

SPRING

€ 2.00

0920911002
ref: 7

PIN(11X18)

€ 2.00

0915006001
ref: 8

NUT

€ 3.50

0832221058
ref: 9

WASHER

€ 2.50

0411120208
ref: 10

PIN 20X20

€ 1.50

0832221068
ref: 11

WASHER

€ 2.00

all assemblies
