Buy Suzuki GP Parts Online


CRANKCASE COVER

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

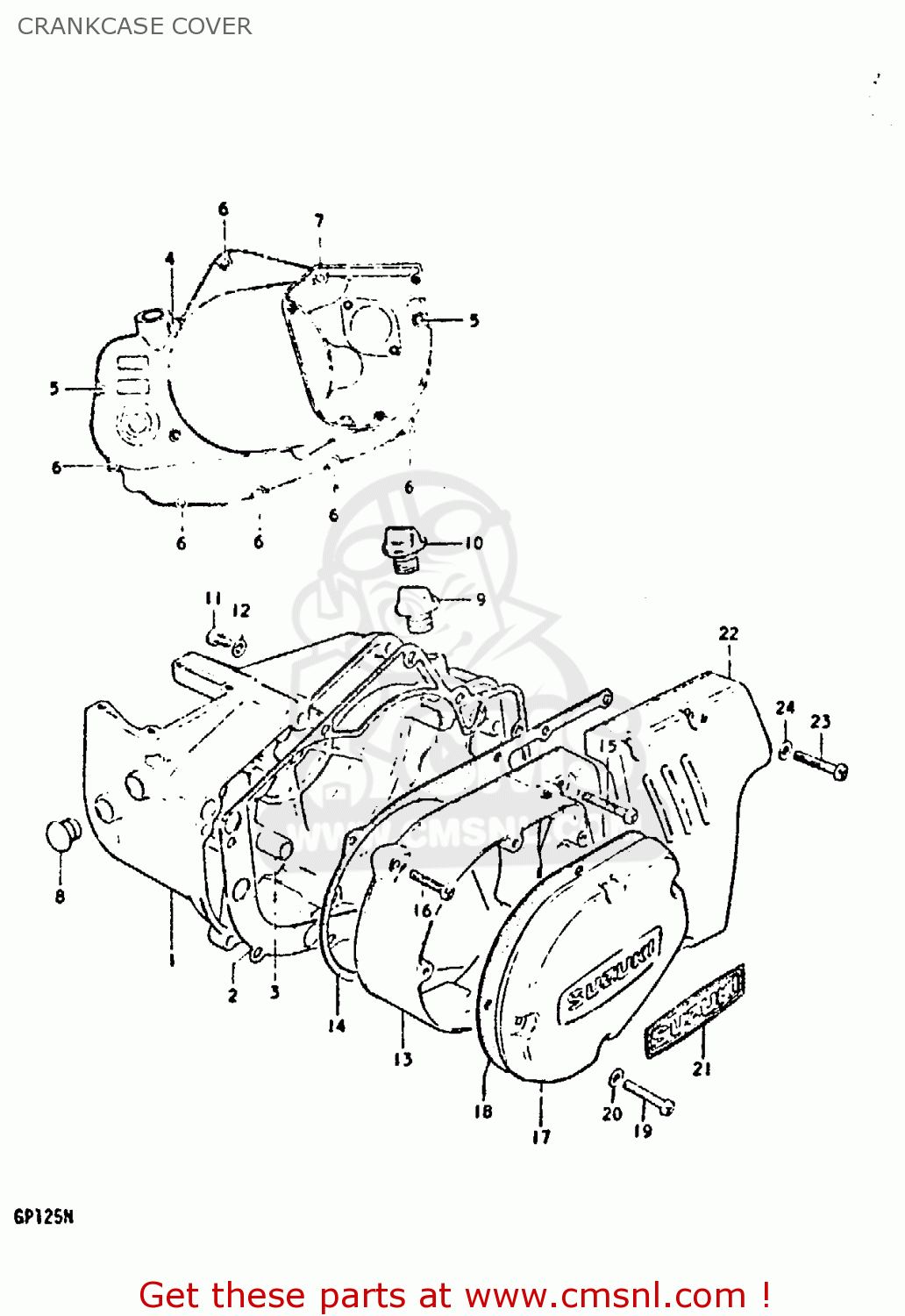

Crankcase cover diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

CRANKCASE COVER GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42
CRANKCASE COVER GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42
CRANKCASE COVER GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42
prices are in EUR
ref
part #
description
quantity
1
1134139101
ref: 1
WITH 09259-20003
COVER, CLUTCH
€ 114.50
2
1148239100
ref: 2
GASKET, CLUTCH COVER (MCA)
1148239100
€ 13.00
3
0920613001
ref: 3
PIN
0920613001
€ 2.50
4
0211206508
ref: 4
SCREW
0211206508
€ 2.50
5
0211206408
ref: 5
SCREW
€ 2.00
6
0211206258
ref: 6
SCREW
€ 2.00
7
0211206208
ref: 7
SCREW
€ 2.00
8
0925014002
ref: 8
Plug
0925014002
€ 4.50
10
0925920003
ref: 10
SCREW TYPE
PLUG,OIL FILTER
0925920003
€ 8.00
11
0912806004
ref: 11
SCREW(6X10)
0912806004
€ 1.50
12
0916806001
ref: 12
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
13
1135139100
ref: 13
COVER, MAGNETO
1135139100
€ 95.50
14
1148339110
ref: 14
E2, E4, E17, E18, E2
GASKET (MCA)
1148339110
€ 25.50
15
0211206358
ref: 15
SCREW (6X35)
€ 2.50
16
0211206258
ref: 16
SCREW
€ 2.00
17
1138139100
ref: 17
CAP, MAGNETO INSPECTION
€ 16.00
18
1149139100
ref: 18
E2, E4, E17, E18, E2
GASKET,MAGNETO INSPECTION CAP (NAS)
1149139100
€ 4.50
19
0211205168
ref: 19
SCREW
0211205168
€ 2.50
20
0832221058
ref: 20
WASHER
€ 2.50
21
6823339100
ref: 21
EMBLEM,MAG INSPECTION CAP
6823339100
€ 10.00
22
1136139101
ref: 22
COVER, ENGINE SPROCKET
1136139101
€ 18.50
23
0211206358
ref: 23
SCREW (6X35)
€ 2.50
24
0832221068
ref: 24
WASHER
0832221068
€ 2.00
