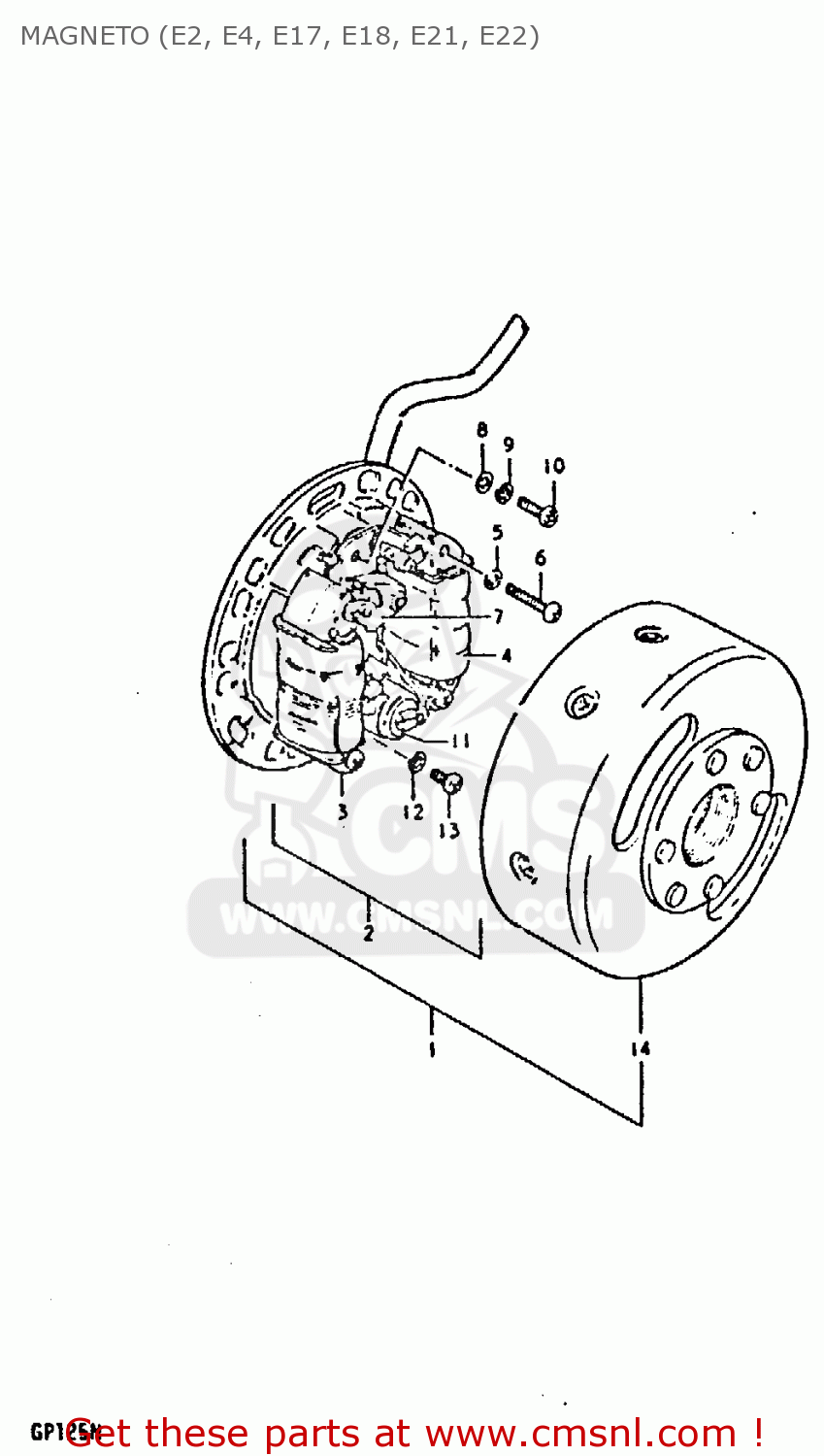

MAGNETO (E2, E4, E17, E18, E21, E22)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

Magneto (e2, e4, e17, e18, e21, e22) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

3210039130
ref: 1
TO 32100-39131

MAGNETO ASSY

€ 207.00

3210148620
ref: 2

STATOR ASSY

€ 207.00

3212048620
ref: 3

COIL, LIGHTING

€ 40.00

3214048010
ref: 4

COIL,PRIMARY

€ 60.50

0832121048
ref: 5

LOCK WASHER

€ 2.00

0211204258
ref: 6

SCREW 4X25

€ 2.00

3224043012
ref: 7

POINT ASSY,CONTACT

€ 18.50

0832221048
ref: 8

WASHER

€ 2.00

0832121048
ref: 9

LOCK WASHER

€ 2.00

0912504001
ref: 10

SCREW(4X10)

€ 4.50

3234143012
ref: 11

CONDENSER

€ 12.50

0832121048
ref: 12

LOCK WASHER

€ 2.00

0211204108
ref: 13

SCREW 4X10

€ 2.00

3210239130
ref: 14

ROTOR, FRYWHEEL

€ 211.50

MAGNETO (E2, E4, E17, E18, E21, E22)

all assemblies
