REAR COMBINATION LAMP (E17, E22)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

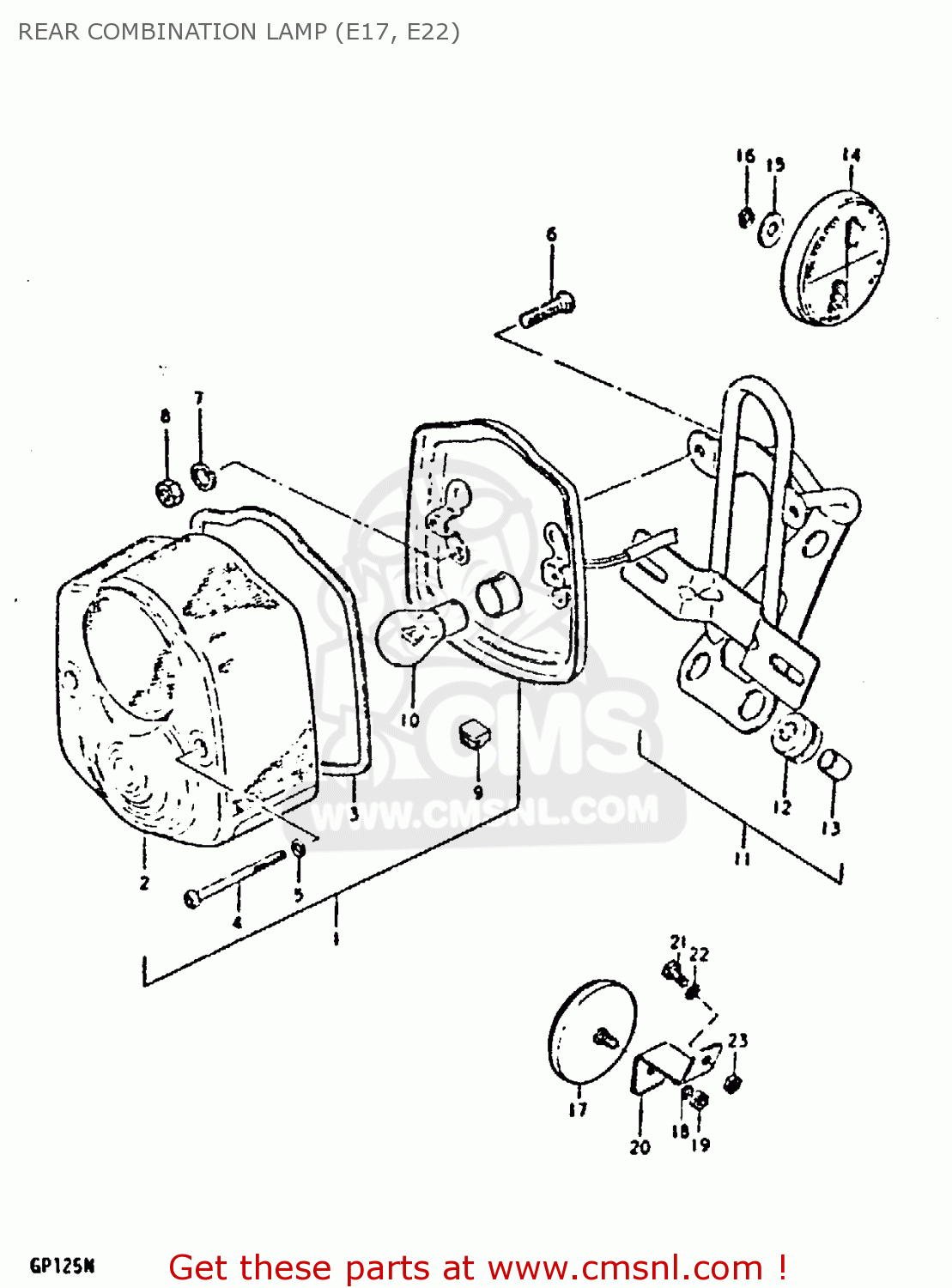

Rear combination lamp (e17, e22) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1-3

3572039171
ref: 1-3
E17

LAMP UNIT, TAIL

€ 0.00

1-4

3572039191999
ref: 1-4
E22

LAMP UNIT, TAIL

€ 0.00

2-2

3571239171
ref: 2-2

LENS

€ 38.50

3571346620
ref: 3

GASKET (NAS)

€ 8.00

3562335110
ref: 4

SCREW

€ 3.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0211205108
ref: 6

SCREW

€ 2.00

0832121058
ref: 7

LOCK WASHER

€ 2.00

0831011058
ref: 8

NUT

€ 2.50

3572846630
ref: 9
E22

GROMMET

€ 0.00

10-1

0947106042
ref: 10-1
E17

BULB (6V,21/5W)

€ 12.50

10-2

0947106034
ref: 10-2
E22, EXECUTED LOCALL

BULB (6V,21/5W)

€ 0.00

3573039191
ref: 11

BRACKET ASSY

€ 75.50

3576535300
ref: 12

CUSHION,RR COMBINATION

€ 3.00

3576635300
ref: 13

SPACER,RR COMBINATION

€ 2.00

17-2

3597045611
ref: 17-2

REFLECTOR,REFLEX

€ 47.50

0832121058
ref: 18

LOCK WASHER

€ 2.00

0831011058
ref: 19

NUT

€ 2.50

3597436600
ref: 20

BRACKET

€ 0.00

0110706108
ref: 21

BOLT

€ 2.00

0832121068
ref: 22

LOCK WASHER

€ 2.50

0831011068
ref: 23

NUT

€ 2.50

REAR COMBINATION LAMP (E17, E22)
