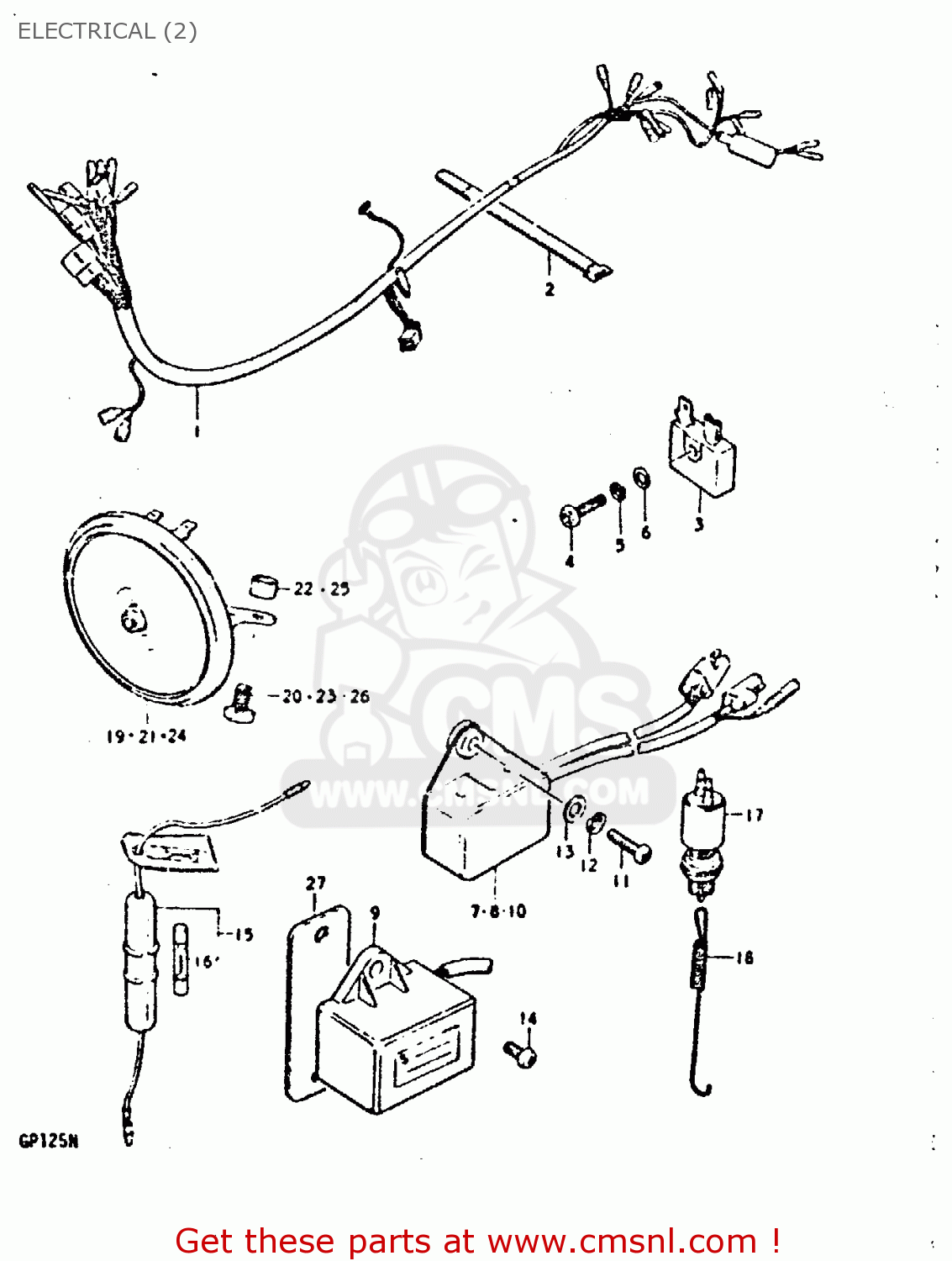

ELECTRICAL (2)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

Electrical (2) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1-4

3661039621
ref: 1-4
E2, E4, E18, E21, E2

WIRING HARNESS

€ 66.50

2-1

0940718301
ref: 2-1

CLAMP

€ 6.00

2-2

0940711302
ref: 2-2

CLAMP

€ 6.00

3280019063
ref: 3

RECTIFIER ASSEMBLY

€ 10.50

0211205208
ref: 4

SCREW 5X20

€ 3.00

0632121058
ref: 5

LOCK WASHER

€ 0.00

0832221058
ref: 6

WASHER

€ 2.50

3674035011
ref: 15

BOX ASSEMBLY,FUSE

€ 11.00

0948110001
ref: 16

FUSE(10A)

€ 2.00

3761053011
ref: 17

SWITCH ASSY,BRAKE LAMP

€ 34.50

0944306016
ref: 18

SPRING

€ 2.50

3850039131
ref: 19

HORN ASSY

€ 48.00

0110706108
ref: 20

BOLT

€ 2.00
