CHAIN CASE

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

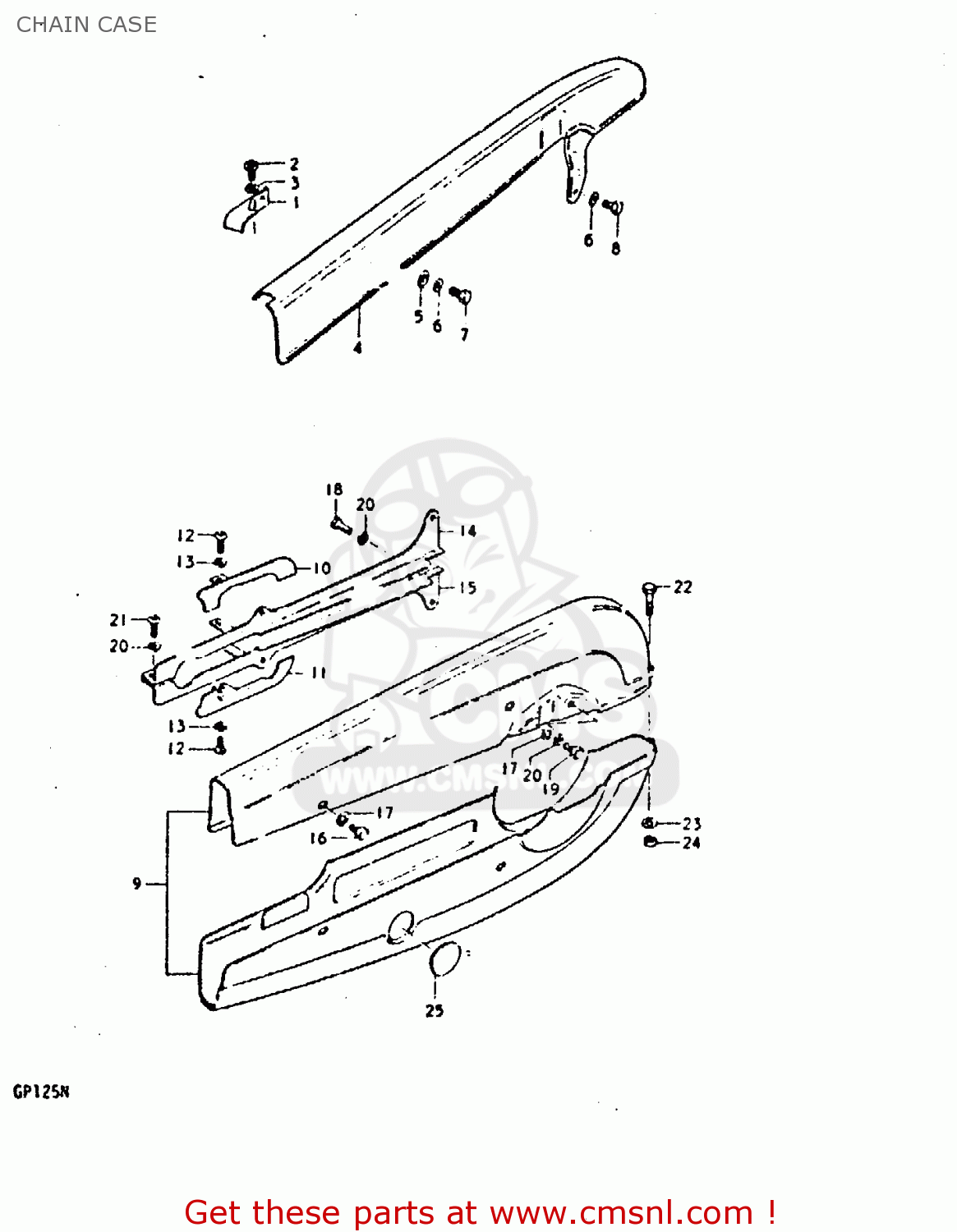

Chain case diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

CHAIN CASE GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

CHAIN CASE GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1

6115039100
ref: 1

BRACKET, CHAIN CASE FRONT

€ 6.50

2

0211206108
ref: 2

SCREW

€ 1.50

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4-1

6131036203
ref: 4-1
TO 61310-36204

CHAIN CASE

€ 149.00

5

0832221068
ref: 5

WASHER

€ 2.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0110706108
ref: 7

BOLT

€ 2.00

8

0110706128
ref: 8

BOLT

€ 2.00
