HEADLAMP (E4)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

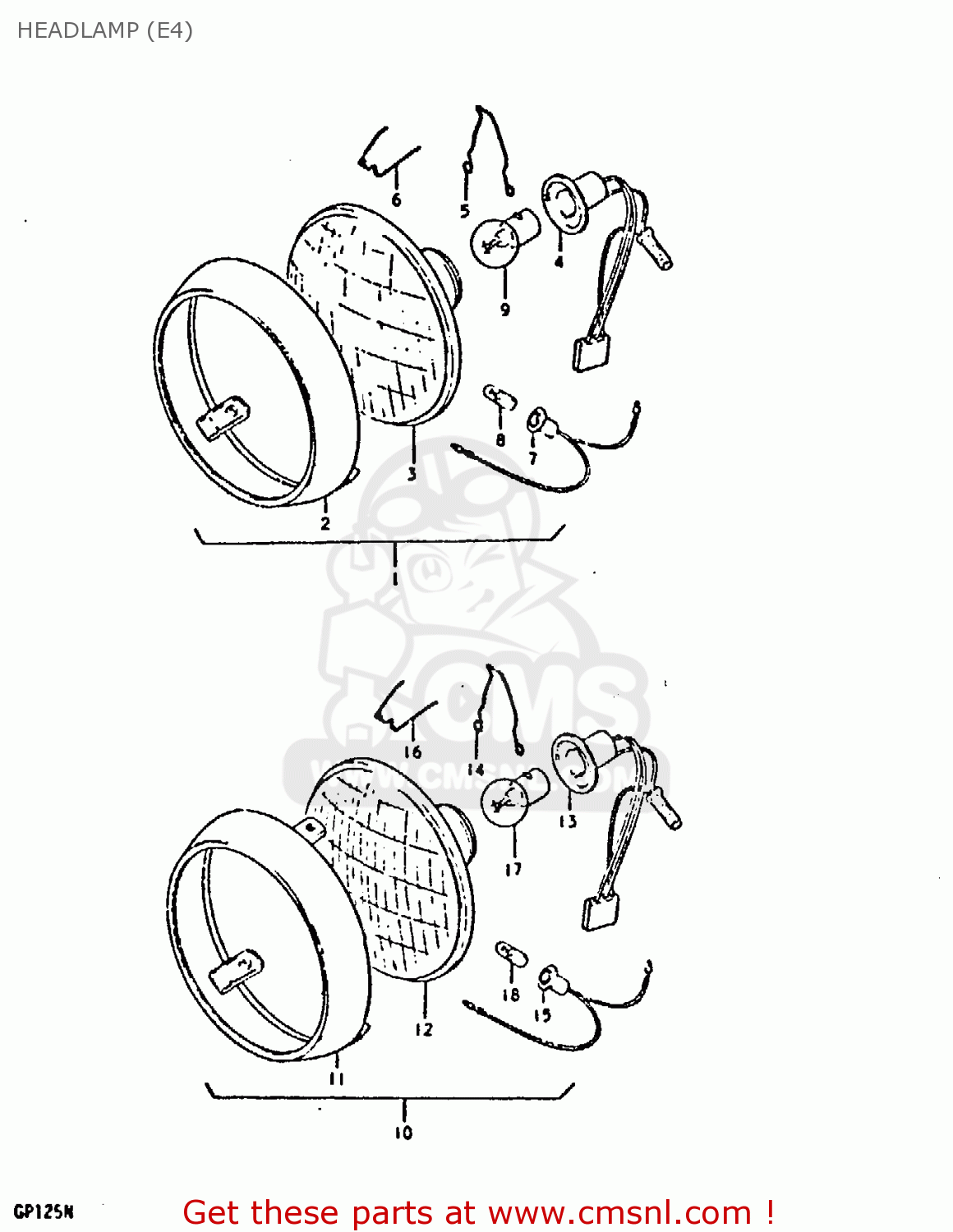

Headlamp (e4) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

HEADLAMP (E4) GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

HEADLAMP (E4) GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

10

3510026440999
ref: 10

HEADLAMP ASSY

€ 0.00

11

3511126440
ref: 11

RIM

€ 46.50

12

3512127650
ref: 12

UNIT

€ 77.00

13

3517136640
ref: 13

SOCKET

€ 0.00

14

3517228660
ref: 14

CLAMP,HEADLAMP

€ 7.00

15

3611828660
ref: 15

SOCKET

€ 11.50

16

3517233630
ref: 16

SPRING

€ 4.00

17

0947106032
ref: 17
EXECUTED LOCALLY

BULB (6V,25/25W)

€ 0.00

18

0947106047
ref: 18
EXECUTED LOCALLY

BULB (6V,4W)

€ 0.00
