AIR CLEANER

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

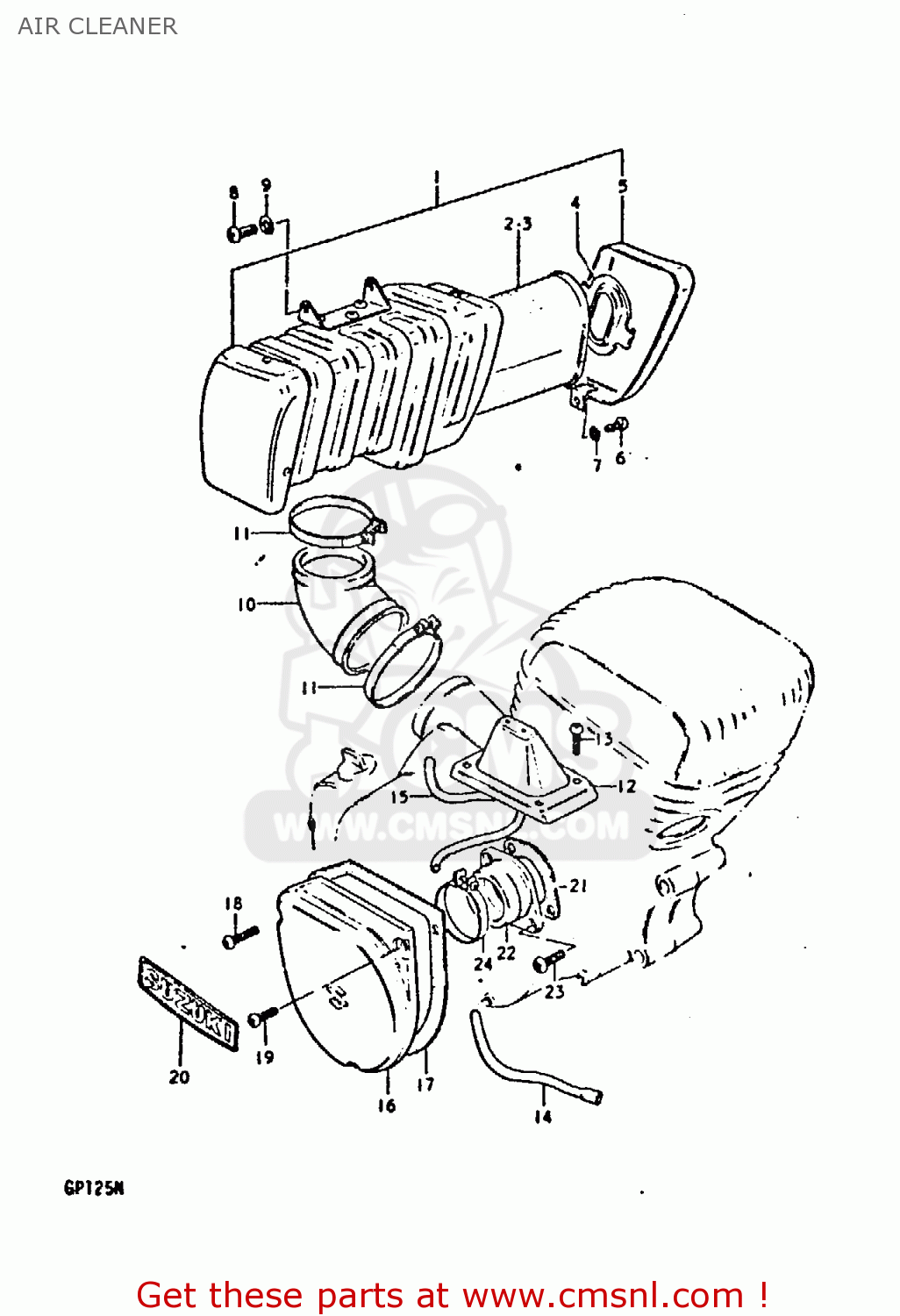

Air cleaner diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

0211206128
ref: 8

SCREW 6X12

€ 2.00

0832221068
ref: 9

WASHER

€ 2.00

1388139100
ref: 10

HOSE,CARBURETOR AIR INLET

€ 13.00

0940262306
ref: 11

CLAMP

€ 6.00

1144039101
ref: 12

CAP,CARBURETOR TOP

€ 22.50

0211205168
ref: 13

SCREW

€ 2.50

1368039100
ref: 14

HOSE, AIR VENT (3.5*6.5*150)

€ 7.00

0934303009
ref: 15

HOSE

€ 8.00

16-2

1138339110
ref: 16-2

CAP, CARB. INSPECTION

€ 27.50

1149239100
ref: 17

GASKET, CAP (MCA)

€ 7.00

0211205208
ref: 18

SCREW 5X20

€ 3.00

0211205168
ref: 19

SCREW

€ 2.50

6823439100
ref: 20

EMBLEM

€ 8.00

1312539100
ref: 21

GASKET,CARBURETOR (NAS)

€ 2.50

1311039101
ref: 22

PIPE,INTAKE

€ 14.50

0211206168
ref: 23

SCREW

€ 2.50

0940238302
ref: 24

CLAMP

€ 3.00

AIR CLEANER

all assemblies
