MAGNETO

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

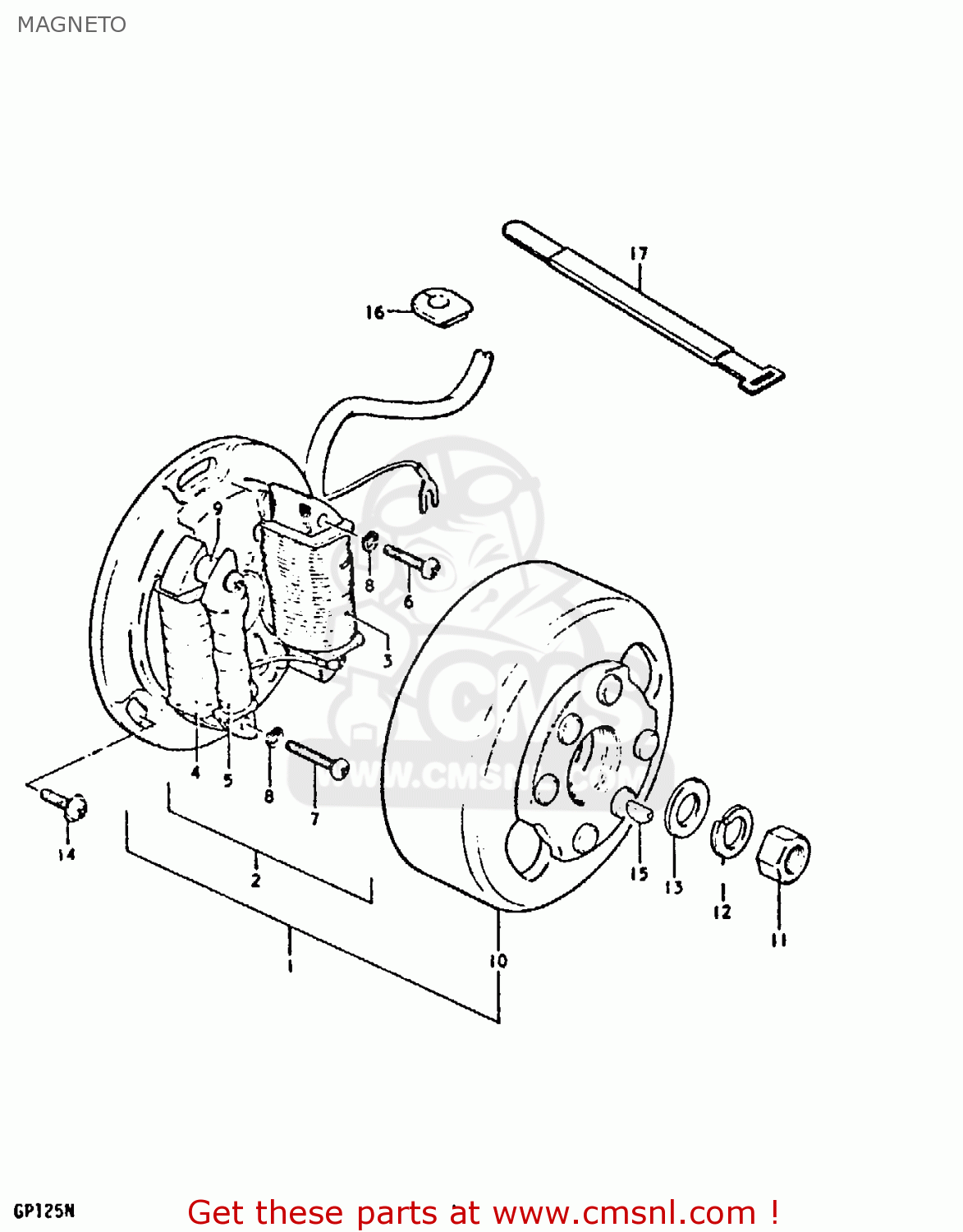

Magneto diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

MAGNETO GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

MAGNETO GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

11

0914010003
ref: 11

NUT (10MM)

€ 3.50

12

0832121108
ref: 12

LOCK WASHER

€ 2.00

13

0832221108
ref: 13

WASHER

€ 2.50

14

0913905011
ref: 14

SCREW(5X14)

€ 3.00

15

0834131039
ref: 15

KEY

€ 2.00

16

0930909007
ref: 16

GROMMET

€ 2.50

17

0940718301
ref: 17

CLAMP

€ 6.00
