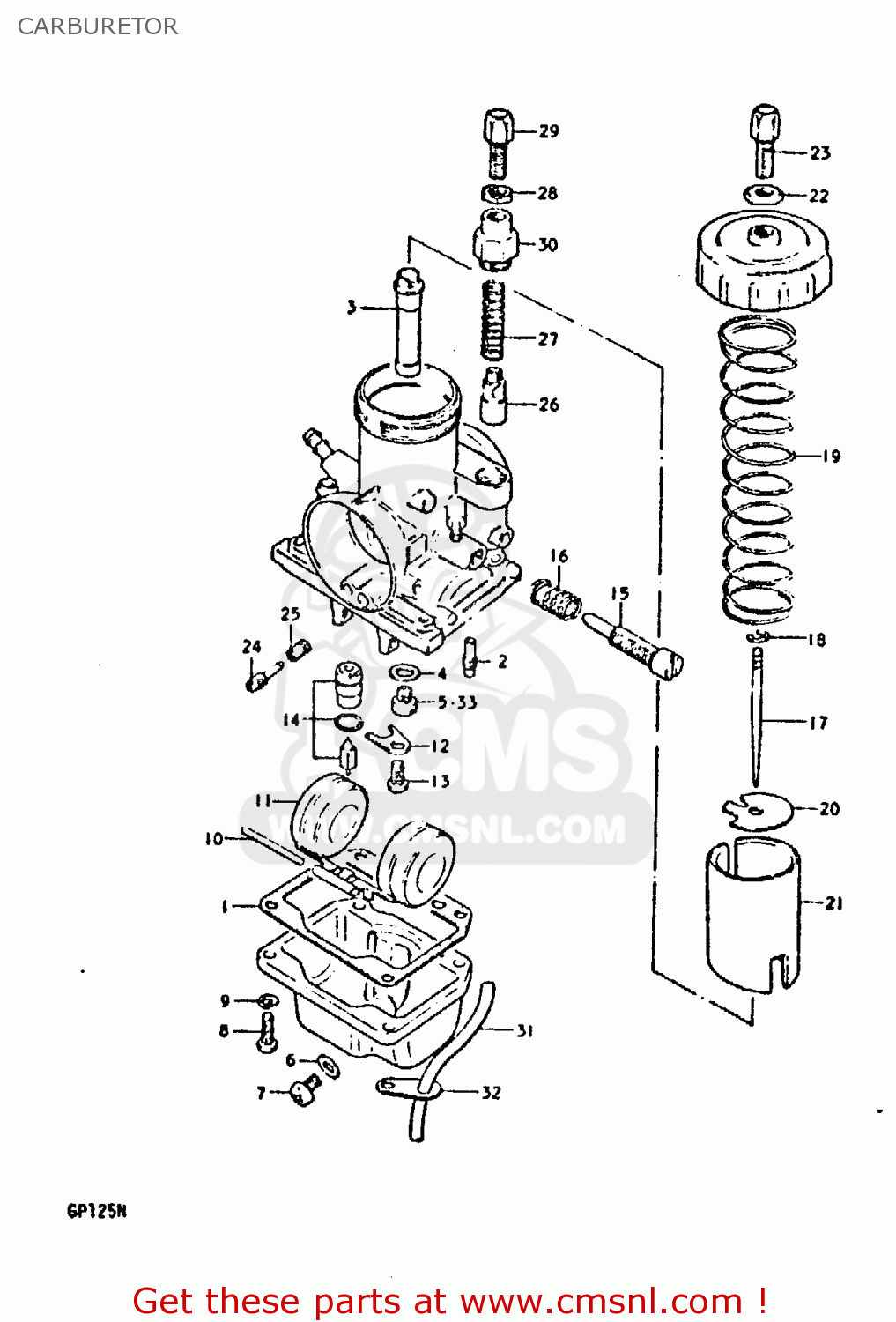

CARBURETOR

ref

part #

description

quantity

0

1320039111
ref: 0

CARBURETOR ASSY

€ 236.50

1

1325139110
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 11.50

2-1

0949225003
ref: 2-1

JET

€ 6.50

3-1

0949400216
ref: 3-1

JET,NEEDLE

€ 22.00

4

1338203110
ref: 4

WASHER

€ 2.50

5-1

0949190003
ref: 5-1

JET

€ 10.50

6

1324905010
ref: 6

GASKET,DRAIN,PLUG (NAS)

€ 1.50

7

1324705010
ref: 7

PLUG

€ 6.00

8

0211204168
ref: 8

SCREW

€ 1.00

9

0832121048
ref: 9

LOCK WASHER

€ 2.00

10

1325401010
ref: 10

PIN,FLOAT

€ 3.00

11

1325239110
ref: 11

FLOAT

€ 26.00

12

1337339110
ref: 12

PLATE

€ 6.50

13

0211104087
ref: 13

SCREW

€ 1.50

14

1337039110
ref: 14

VALVE ASSY, NEEDLE

€ 54.50

15

1326715110
ref: 15

ADJUSTER

€ 7.50

16

1326803110
ref: 16

SPRING,THROTTLE SCREW

€ 3.50

17-1

1338339110
ref: 17-1

NEEDLE, JET (4EJ14)

€ 14.50

18

1339410010
ref: 18
FROM 13384-45010

CLIP

€ 4.50

19

1357330900
ref: 19
FROM 13573-97010

SPRING,THROTTLE VALVE

€ 6.00

20

1358139110
ref: 20

PLATE

€ 4.00

21

1355139110
ref: 21

VALVE,THROTTLE

€ 35.00

22

1366116600
ref: 22

NUT

€ 5.00

23

1357748110
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1326901010
ref: 24

SCREW,PILOT AIR

€ 14.50

25

1326839110
ref: 25

SPRING

€ 4.50

26

1341101010
ref: 26

PLUNGER,STARTER

€ 14.00

27

1341701010
ref: 27

SPRING

€ 3.50

28

1366103010
ref: 28

NUT

€ 3.50

29

1357703010
ref: 29

ADJUSTER,CABLE

€ 8.00

30

1311663110
ref: 30

CAP

€ 0.00

31

1368339110
ref: 31

HOSE

€ 8.00

32

1369330010
ref: 32

PLATE

€ 4.00

33-1

0949187001
ref: 33-1
OPT

JET

€ 6.50

33-2

0949195003
ref: 33-2
OPT

JET

€ 8.50

33-3

0949120003
ref: 33-3
OPT

JET

€ 10.50

33-4

0949120004
ref: 33-4
OPT

JET

€ 8.50

33-5

0949121006
ref: 33-5
OPT

JET

€ 8.50

33-6

0949122004
ref: 33-6
OPT

JET, MAIN

€ 7.00

33-7

0949122005
ref: 33-7
OPT

JET, MAIN (112.5)

€ 11.00
