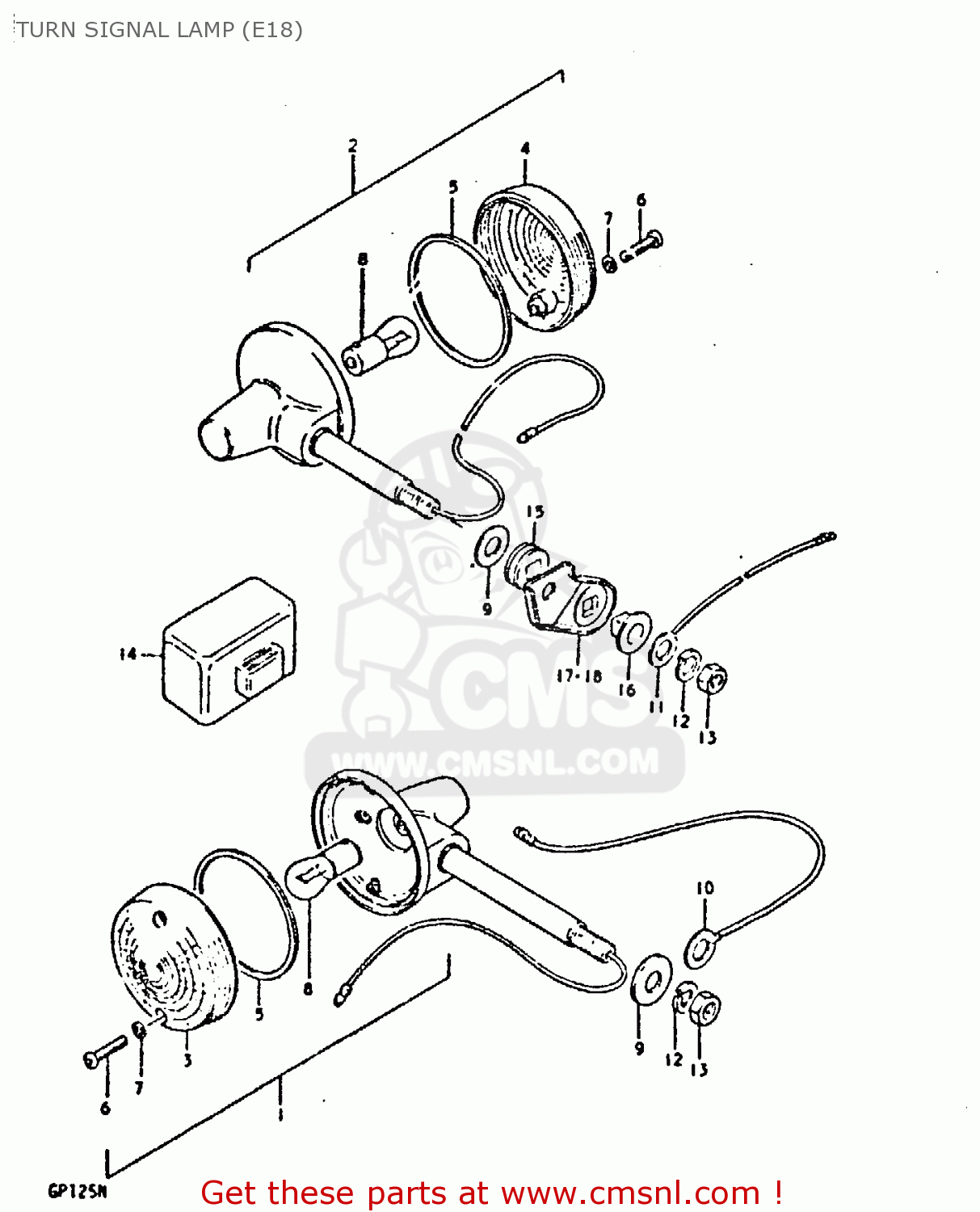

TURN SIGNAL LAMP (E18)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

Turn signal lamp (e18) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1-3

3560139180
ref: 1-3
TO 35601-39191-999

LAMP, FRONT TURN SIGNAL

€ 0.00

2-4

3560339182
ref: 2-4

LAMP, REAR TURN SIGNAL

€ 0.00

3561228620
ref: 3

LENS

€ 10.50

4-2

3565239181
ref: 4-2

LENS

€ 0.00

3561328620
ref: 5

GASKET (NAS)

€ 7.00

3562347610
ref: 6

SCREW

€ 1.50

3562743010
ref: 7

GASKET (NAS)

€ 2.00

0947106041
ref: 8

BULB (6V,21W)

€ 3.50

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

3666033000
ref: 10

LEAD WIRE,EARTH

€ 5.00

3686244000
ref: 11

LEAD WIRE,EARTH

€ 4.00

0832121108
ref: 12

LOCK WASHER

€ 2.00

0831012108
ref: 13

NUT

€ 2.50

3861048611
ref: 14

RELAY, TURN SIGNAL

€ 51.50

3569032200
ref: 15

CUSHION

€ 38.50

3569532400
ref: 16

SPACER,TURN SIGNAL LAMP

€ 4.50

3562039100
ref: 17

BRACKET, REAR RH

€ 4.50

3564039100
ref: 18

BRACKET,RR TURNSIGNAL LAMP,L

€ 5.50

TURN SIGNAL LAMP (E18)

all assemblies
