STAND - FOOTREST

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

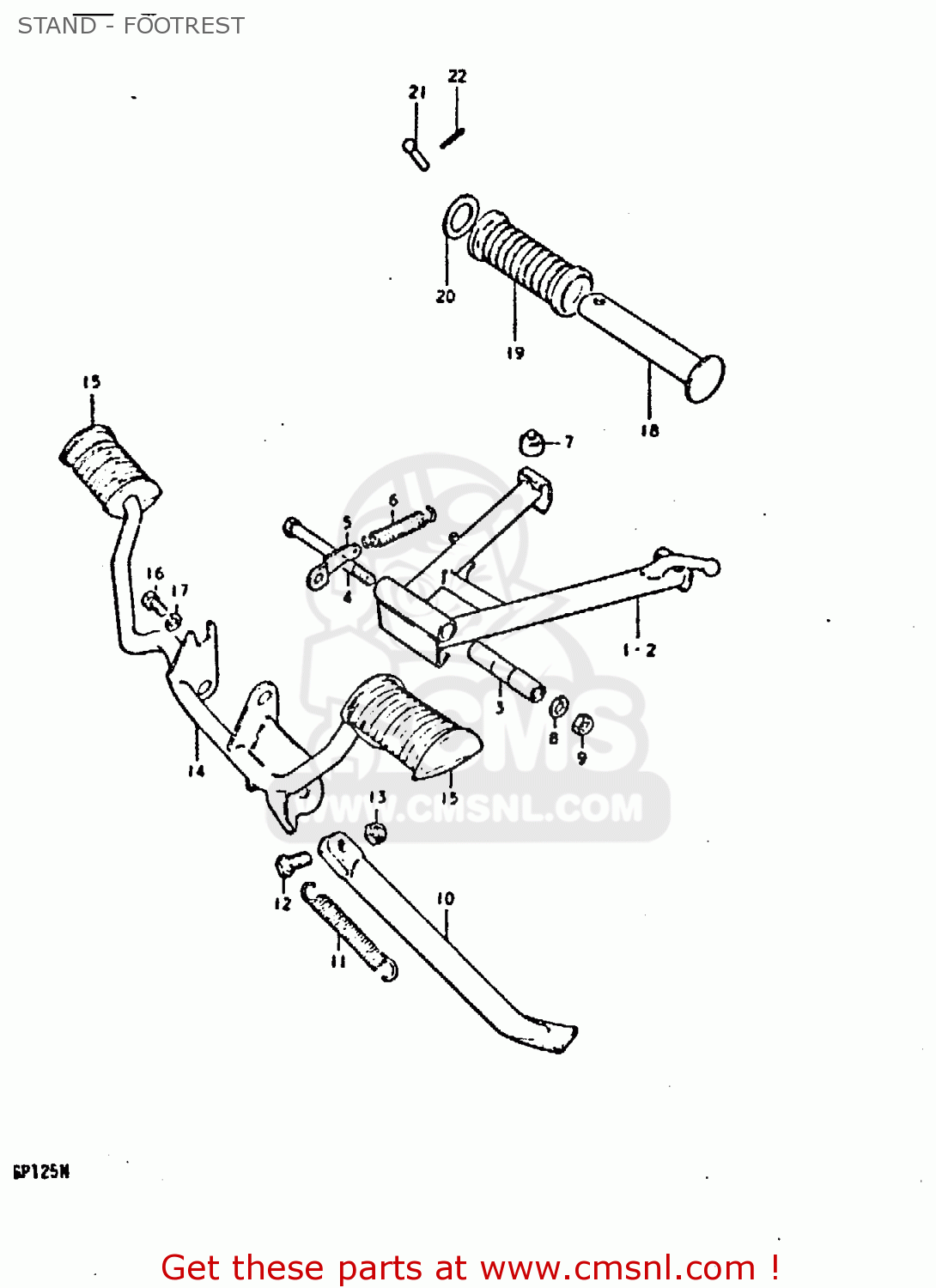

Stand - footrest diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

4210023201
ref: 1

STAND,CENTER

€ 41.50

4221103001
ref: 3

SPACER

€ 4.50

0910010009
ref: 4

BOLT(10X110)

€ 3.50

4225139000
ref: 5

HOOK,CTR STAND SPRING

€ 5.50

0944316002
ref: 6

SPRING

€ 12.00

0932110001
ref: 7

CUSHION

€ 2.50

0832121108
ref: 8

LOCK WASHER

€ 2.00

0831012108
ref: 9

NUT

€ 2.50

10-1

4231039100
ref: 10-1

STAND,PROP

€ 23.50

0944314017
ref: 11

SPRING

€ 6.50

12-1

0910010007
ref: 12-1

BOLT

€ 4.50

0831022108
ref: 13

NUT

€ 2.50

14-1

4351039102
ref: 14-1

BAR, FRONT FOOTREST

€ 52.00

4355139100
ref: 15

RUBBER,FR FOOTREST

€ 7.50

0110708168
ref: 16

BOLT

€ 2.00

0832121088
ref: 17

LOCK WASHER

€ 2.00

4361003001
ref: 18

BAR,FOOTREST RUBBER

€ 5.50

4361203001
ref: 19

RUBBER,PILLION FOOTREST

€ 3.50

0916019006
ref: 20

WASHER (19.5X32X2)

€ 2.00

0920006010
ref: 21

PIN

€ 2.50

0411120208
ref: 22

PIN 20X20

€ 1.50
