MUFFLER

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

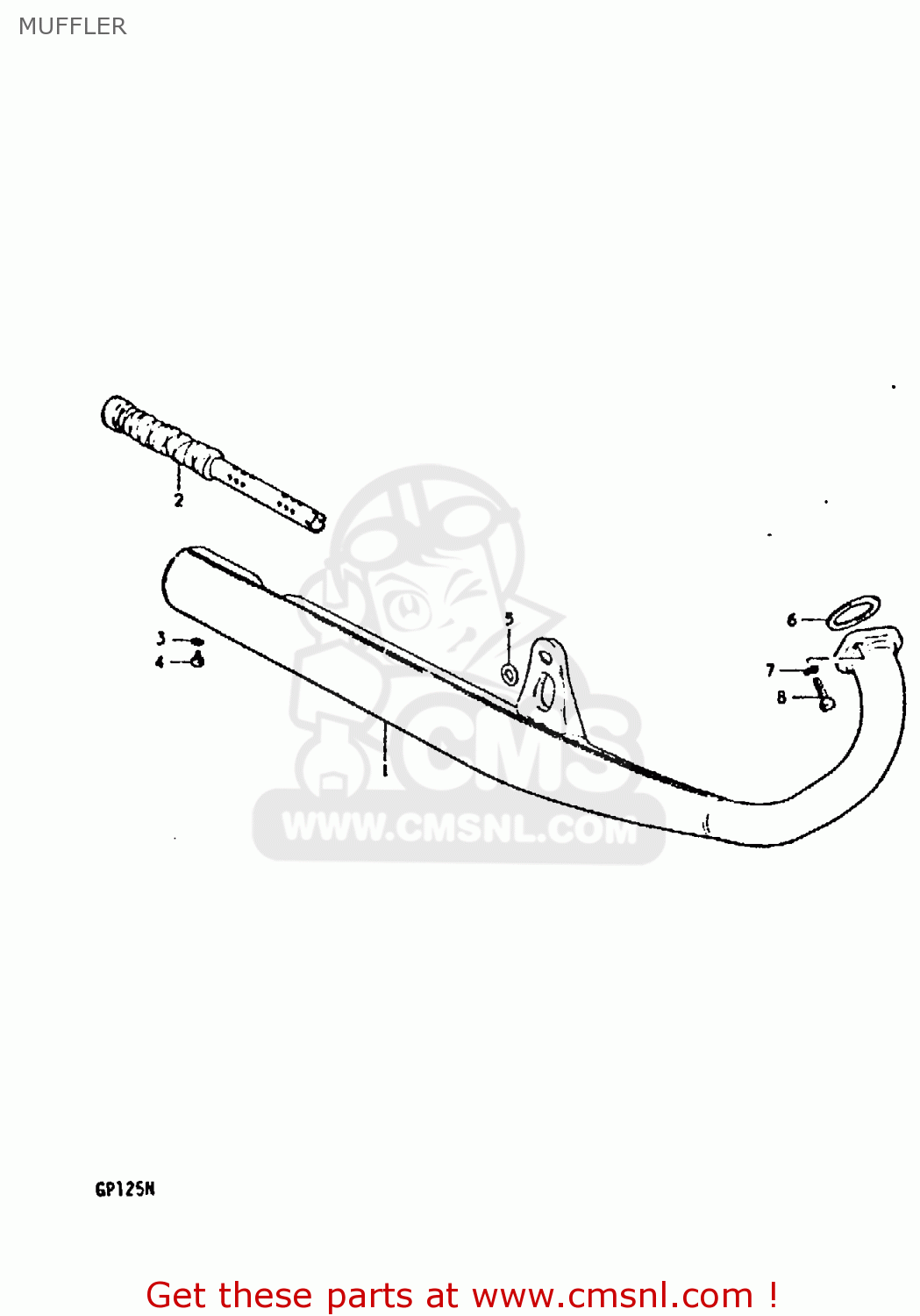

Muffler diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

MUFFLER GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

MUFFLER GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1-5

1430139671
ref: 1-5
E2, E4, E17, E18, E2

MUFFLER ASSY

€ 308.50

2-2

1451039100
ref: 2-2
E2, E4, E6, E17, E18

PIPE, BAFFLE

€ 30.50

3

0832121058
ref: 3

LOCK WASHER

€ 2.00

4

0912805004
ref: 4

BOLT(5X8)

€ 2.00

5

0916012012
ref: 5

WASHER (12.5X24X3.2)

€ 2.50

6

1418111010
ref: 6

GASKET,EXHAUST PIPE (NAS)

€ 8.00

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

0110708258
ref: 8

BOLT

€ 2.50
