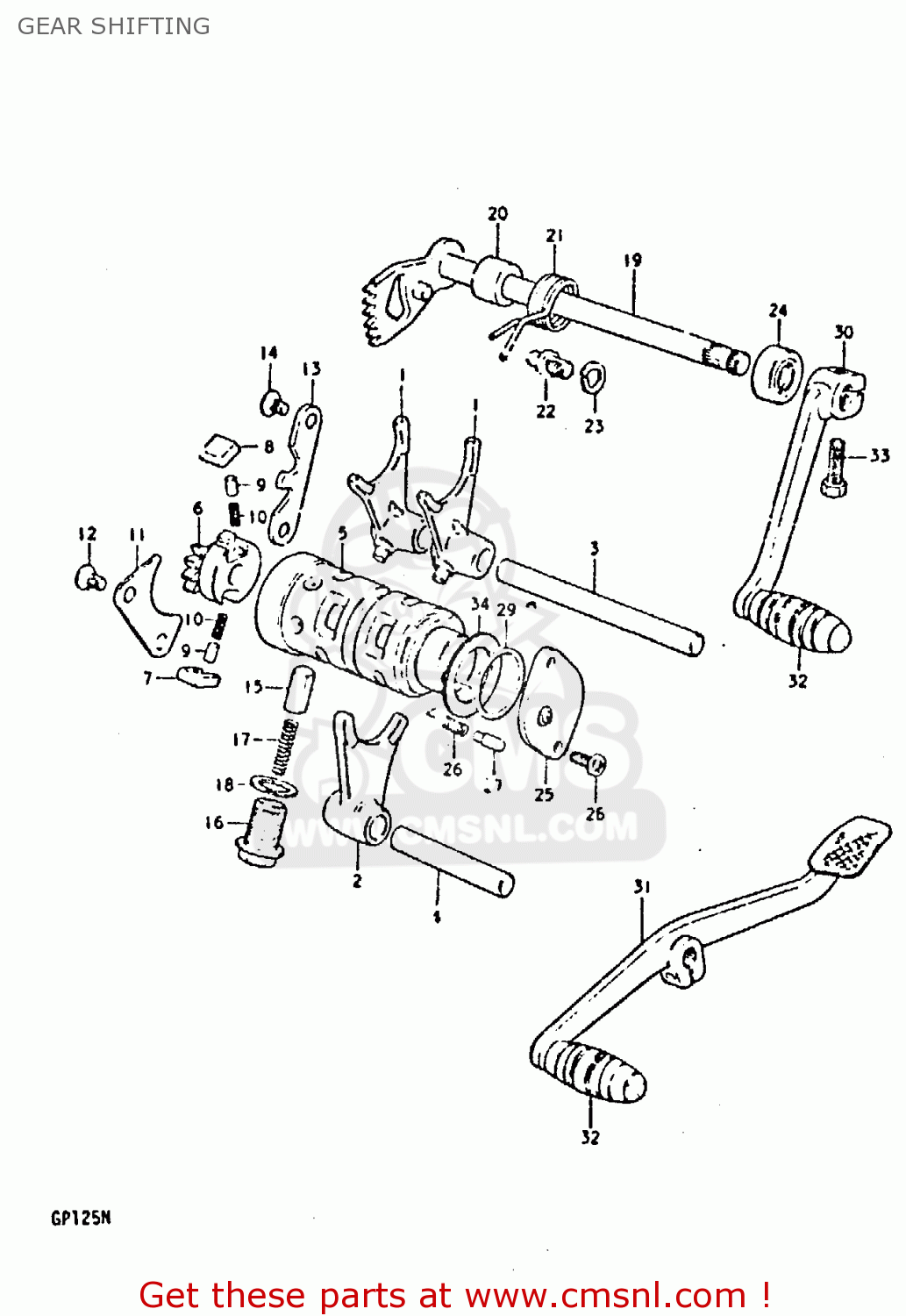

GEAR SHIFTING

ref

part #

description

quantity

1

2521148001
ref: 1

FORK,GEAR SHIFT NO.1

€ 71.50

2

2522141301
ref: 2

FORK,GEAR SHIFT NO.2

€ 71.50

3

2541148000
ref: 3

SHAFT,GEAR SHIFT FORK

€ 15.00

4

2542148000
ref: 4

SHAFT,GEAR SHIFT FORK

€ 19.00

5-1

2531039100
ref: 5-1

CAM,GEAR SHIFT

€ 288.50

5-2

NOTUSED
ref: 5-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6

2532211000
ref: 6

RETAINER,GEAR SHIFT CAM

€ 14.50

7

2532311000
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532411000
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533130000
ref: 11

LIFTER,GEAR SHIFT PAWL

€ 3.50

12

0212206108
ref: 12

SCREW

€ 1.50

13

2534139100
ref: 13

GUIDE,GEAR SHIFT CAM

€ 8.50

14

0212206108
ref: 14

SCREW

€ 1.50

15

2535118000
ref: 15

STOPPER,GEAR SHIFTING

€ 5.00

16

2535211000
ref: 16

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

17

0944005009
ref: 17

SPRING

€ 2.00

18

0916814004
ref: 18

GASKET(14X19.2X2) (NAS)

€ 2.50

19

2551039100
ref: 19

SHAFT,GEAR SHIFT

€ 60.50

20

0918012068
ref: 20

SPACER(12X20X15.3)

€ 3.00

21

0944426017
ref: 21

SPRING

€ 5.00

22

2567101000
ref: 22

STOPPER,GEAR SHIFT CAM

€ 3.00

23-2

0916208005
ref: 23-2

WASHER

€ 2.00

24

0928512002
ref: 24

OIL SEAL

€ 7.00

25

3772029350
ref: 25

BODY,GEAR SHIFT SWITCH

€ 10.50

26

0944004010
ref: 26

SPRING

€ 1.50

27

0920905011
ref: 27

PIN(5X15.5)

€ 2.00

28

0211205128
ref: 28

SCREW

€ 2.50

29

0928026003
ref: 29

O-RING (D:2.4 ID:26.2)

€ 2.50

30

2560039101
ref: 30

LEVER ASSY,GEAR SHIFT

€ 71.00

32

2565216500
ref: 32

RUBBER,GEAR SHIFT PEDAL

€ 4.00

33

0910006091
ref: 33

BOLT

€ 2.00
