REAR COMBINATION LAMP (E2, E4, E18, E21)

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

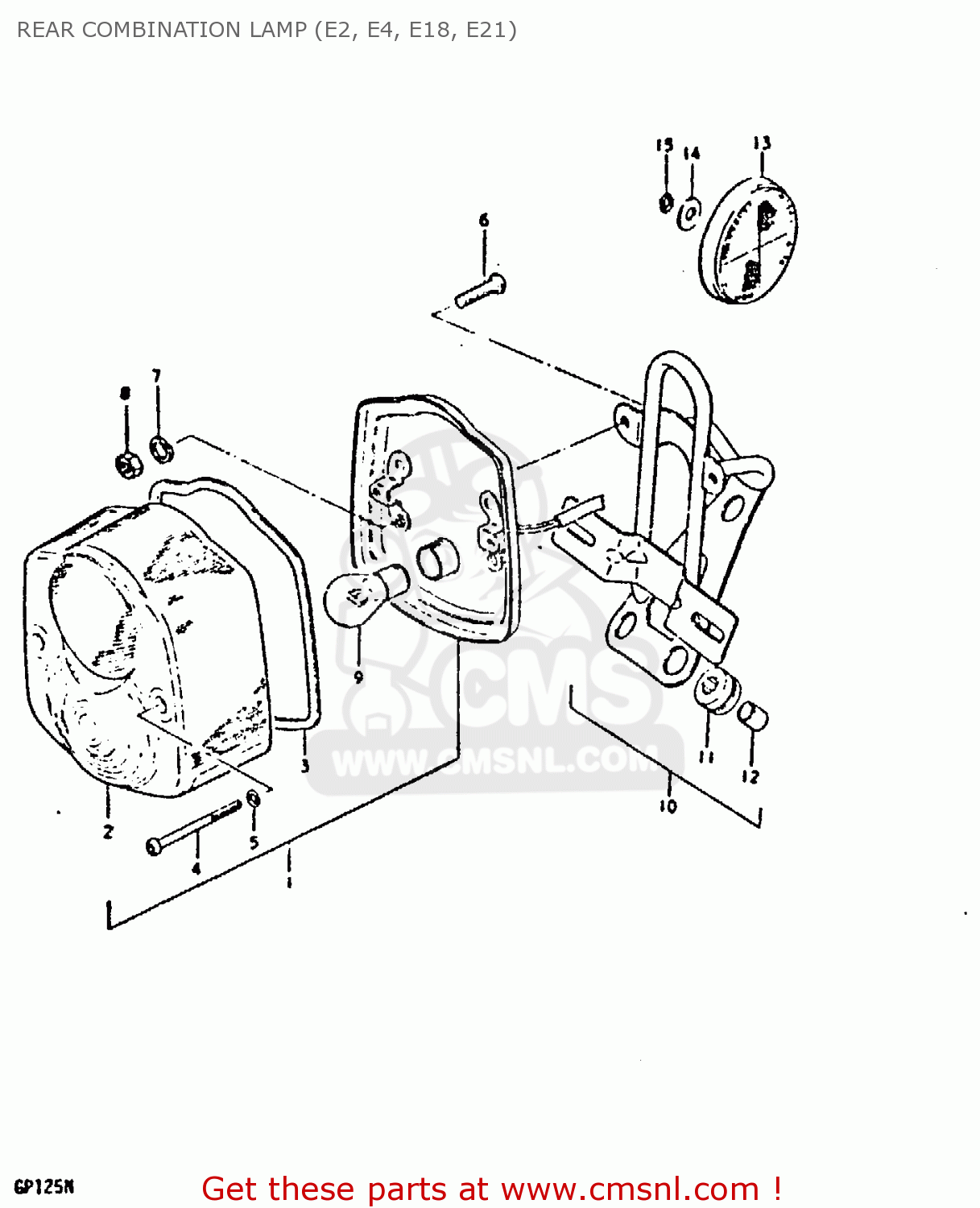

Rear combination lamp (e2, e4, e18, e21) diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1-2

3572039182
ref: 1-2

LAMP UNIT, REAR COMBINATION

€ 81.50

2-2

3571246622
ref: 2-2

LENS

€ 39.00

3571346620
ref: 3

GASKET (NAS)

€ 8.00

3562335110
ref: 4

SCREW

€ 3.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0211205108
ref: 6

SCREW

€ 2.00

0832121058
ref: 7

LOCK WASHER

€ 2.00

0831011058
ref: 8

NUT

€ 2.50

0947106042
ref: 9

BULB (6V,21/5W)

€ 12.50

3573039191
ref: 10

BRACKET ASSY

€ 75.50

3576535300
ref: 11

CUSHION,RR COMBINATION

€ 3.00

3576635300
ref: 12

SPACER,RR COMBINATION

€ 2.00
