CRANKCASE

GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

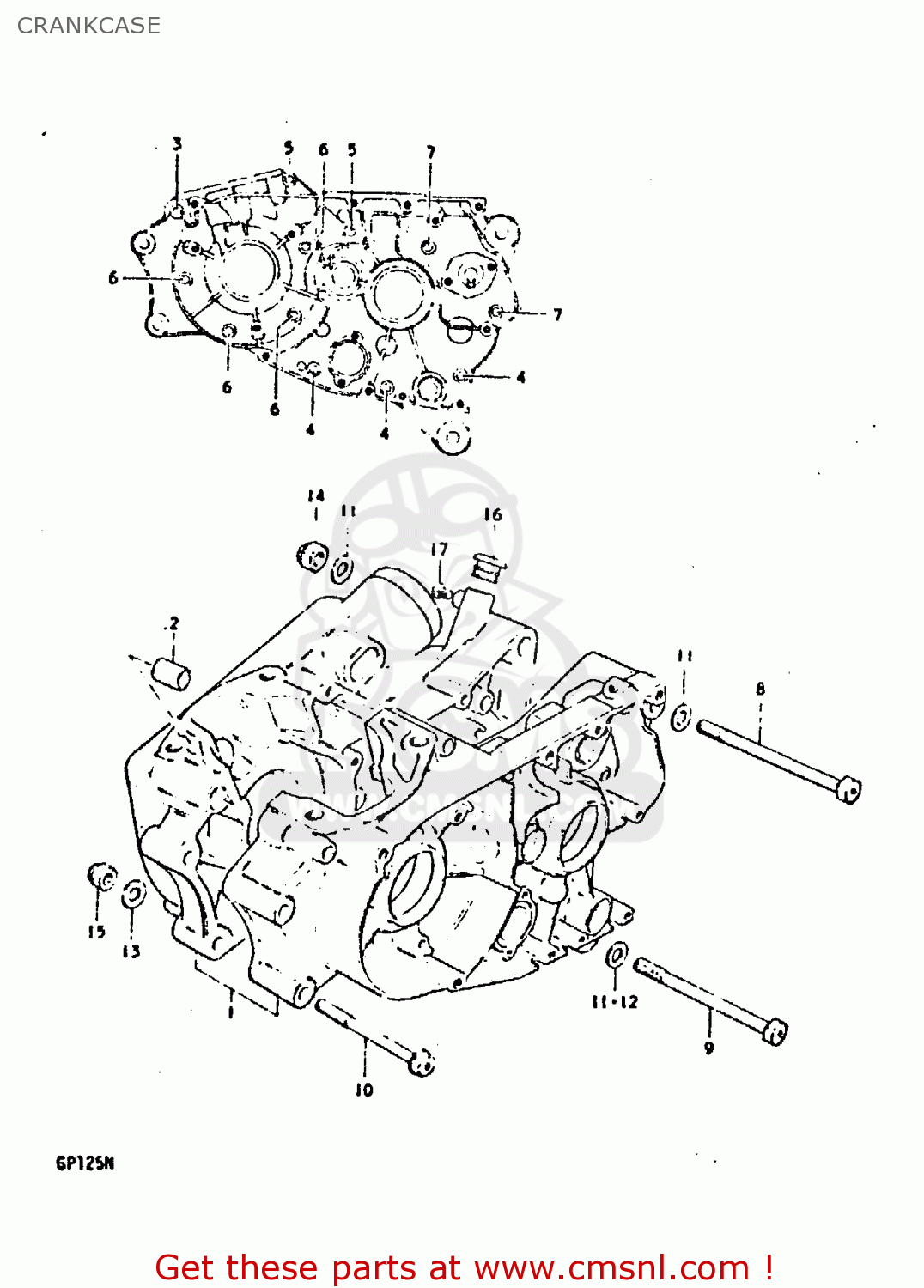

Crankcase diagram GP125U 1979 (N) (01 02 04 06 10 13 14 17 18 21 22 24 32 35 41 42

prices are in EUR

ref

part #

description

quantity

1130039831
ref: 1

CRANKCASE SET

€ 436.00

0920613001
ref: 2

PIN

€ 2.50

0211206708
ref: 3

SCREW 6X70

€ 3.00

0211206658
ref: 4

SCREW 6X65

€ 2.00

0211206557
ref: 5

SCREW

€ 2.50

0211206508
ref: 6

SCREW

€ 2.50

0211206358
ref: 7

SCREW (6X35)

€ 2.50

0910010099
ref: 8

BOLT 10X120

€ 3.50

9-2

0910010116
ref: 9-2

BOLT 10X115

€ 3.50

0151708908
ref: 10

BOLT 8X90

€ 3.50

0832211108
ref: 11

WASHER

€ 2.50

0916010005
ref: 12

WASHER(10.5X20X3.2)

€ 2.00

14-2

0831931108
ref: 14-2

NUT

€ 3.00

15-2

0831931088
ref: 15-2

NUT

€ 2.50

0925014002
ref: 16

Plug

€ 4.50

0211206063
ref: 17

BOLT

€ 2.00

CRANKCASE

all assemblies
