AIR CLEANER

GS1000 1980 (T) (E01 E02 E22 E24)

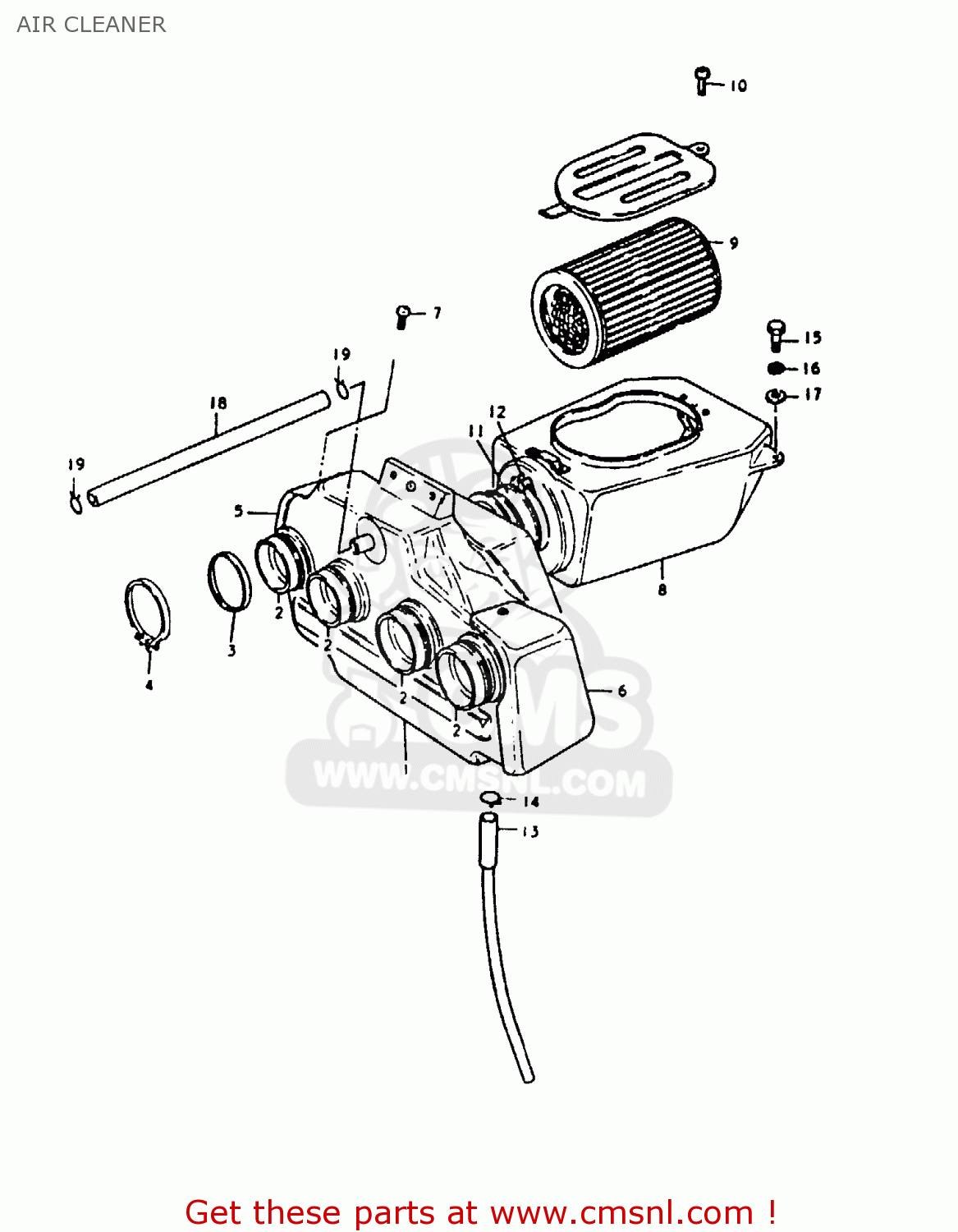

Air cleaner diagram GS1000 1980 (T) (E01 E02 E22 E24)

AIR CLEANER GS1000 1980 (T) (E01 E02 E22 E24)
AIR CLEANER GS1000 1980 (T) (E01 E02 E22 E24)
AIR CLEANER GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1371049020
ref: 1
CASE,AIR CLEANER,FRONT
1371049020
€ 97.50
2
1388149020
ref: 2
TUBE,AIR CLEANER OUTLET
1388149020
€ 16.00
3
1388549000
ref: 3
RING,CARBURETOR AIR IN
€ 8.00
4
0940262206
ref: 4
CLAMP
€ 6.00
5
1383149020
ref: 5
COVER,CASE,RIGHT
1383149020
€ 30.50
6
1383249020
ref: 6
COVER,CASE,LEFT
1383249020
€ 25.00
7
0321104108
ref: 7
SCREW
€ 2.00
8
1370149001
ref: 8
FROM 13700-49820
CASE ASSEMBLY,AIR CLEANER
1370149001
€ 187.00
9
1378049000
ref: 9
FILTER,AIR CLEANER
€ 41.00
10
0211205108
ref: 10
SCREW
0211205108
€ 2.00
11
1379549000
ref: 11
HOSE,AIR CLEANER
1379549000
€ 34.50
12
1379649000
ref: 12
BAND
1379649000
€ 6.00
13
1387000020
ref: 13
DRAIN TUBE
€ 13.50
14
0940114301
ref: 14
CLIP
0940114301
€ 2.00
15
0110706168
ref: 15
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
18
0934311001
ref: 18
HOSE
€ 30.00
19
0940114301
ref: 19
CLIP
0940114301
€ 2.00
