GEAR SHIFTING
GS1000 1980 (T) (E01 E02 E22 E24)

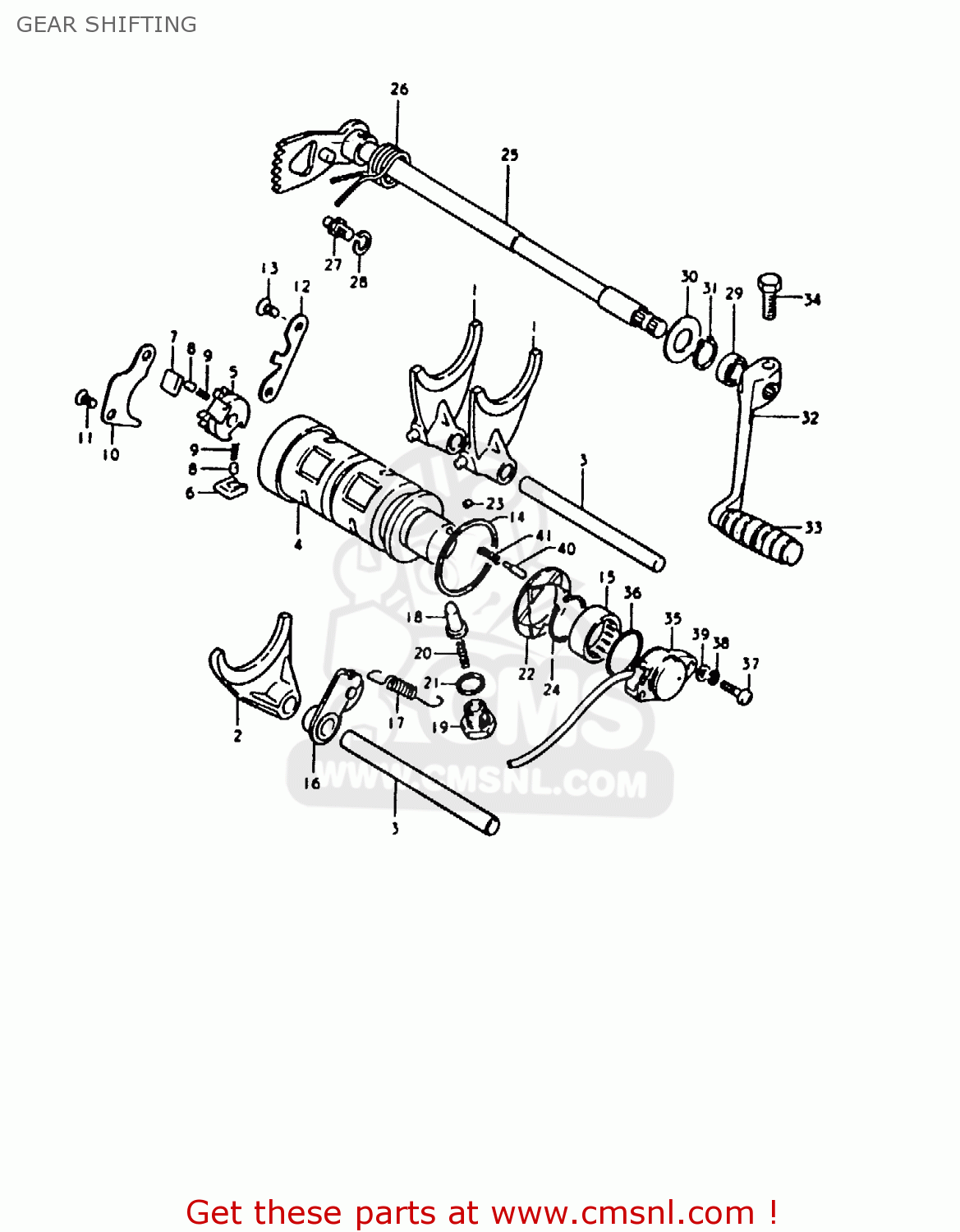

Gear shifting diagram GS1000 1980 (T) (E01 E02 E22 E24)
GEAR SHIFTING GS1000 1980 (T) (E01 E02 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2521134000
ref: 1
4TH & 5TH
FORK,GEAR SHIFT NO.1
€ 54.50
2
2523134000
ref: 2
3RD
FORK,GEAR SHIFT NO.3
€ 72.50
3
2541131000
ref: 3
SHAFT,GEAR SHIFT FORK
€ 14.50
4
2531049000
ref: 4
CAM,GEAR SHIFT
€ 148.00
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533111001
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 2.50
11
0212206128
ref: 11
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
€ 17.50
16
2535034000
ref: 16
STOPPER,GEAR SHIFT CAM
€ 10.50
17
0944308012
ref: 17
SPRING
€ 3.00
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20
0944006018
ref: 20
SPRING
€ 1.50
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2538145000
ref: 22
PLATE,GEAR SHIFT CAM STOPPER
€ 14.00
23
0621104063
ref: 23
PIN 4X6
€ 2.00
24
0833111258
ref: 24
CIRCLIP
€ 2.00
25
2551049000
ref: 25
SHAFT,GEAR SHIFT
€ 63.00
26
0944426012
ref: 26
SPRING
€ 3.50
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0916208005
ref: 28
WASHER
€ 2.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
€ 2.00
32
2560049000
ref: 32
LEVER ASSY,GEAR SHIFT
€ 54.00
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
0110708208
ref: 34
BOLT
€ 3.00
35
3772044600
ref: 35
TERMINAL BASE,NEUTRAL SWITCH
€ 51.00
36
0928026003
ref: 36
O-RING (D:2.4 ID:26.2)
€ 2.50
37
0211205208
ref: 37
SCREW 5X20
€ 3.00
38
0832121058
ref: 38
LOCK WASHER
€ 2.00
39
0832221058
ref: 39
WASHER
€ 2.50
40
0920905011
ref: 40
PIN(5X15.5)
€ 2.00
41
0944004010
ref: 41
SPRING
€ 1.50
