FOOTREST
GS1000 1980 (T) (E01 E02 E22 E24)

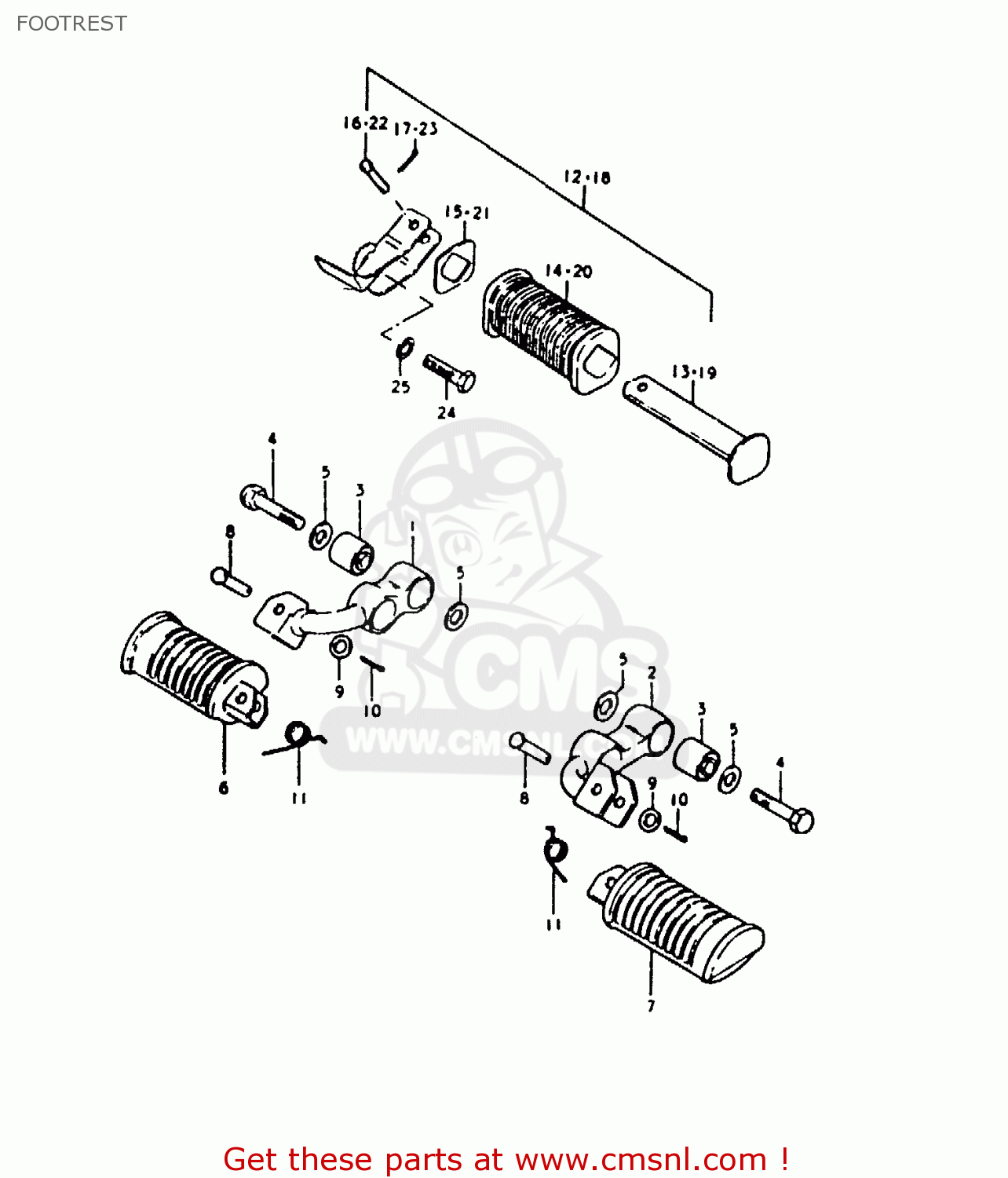

Footrest diagram GS1000 1980 (T) (E01 E02 E22 E24)
FOOTREST GS1000 1980 (T) (E01 E02 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
4351049010
ref: 1
BAR,FRONT FOOTREST
€ 46.50
2
4352049010
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 50.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410007
ref: 4
BOLT
€ 3.50
5
0916010013
ref: 5
WASHER (10.1X21X2.3)
€ 2.00
6
4355049001
ref: 6
RUBBER,FRONT FOOTREST
€ 22.50
7
4356049001
ref: 7
FOOTREST
€ 22.50
8
0920008002
ref: 8
PIN
€ 2.00
9
0832211088
ref: 9
WASHER
€ 2.00
10
0411120208
ref: 10
PIN 20X20
€ 1.50
11
0944814013
ref: 11
SPRING
€ 3.00
12-1
4360049010
ref: 12-1
~F.NO.149604
FOOTREST ASSEMBLY,REAR
€ 26.50
12-2
4370049010
ref: 12-2
~F.NO.149604
FOOTREST ASSEMBLY,PILLION
€ 25.50
13-1
4361045000
ref: 13-1
~F.NO.149604
BAR,REAR FOOTREST
€ 21.50
13-2
4362045000
ref: 13-2
~F.NO.149604
BAR,REAR FOOTREST
€ 13.50
14-1
4361245000
ref: 14-1
~F.NO.149604
RUBBER,PILLION FOOTREST
€ 15.00
14-2
4362245000
ref: 14-2
~F.NO.149604
RUBBER, LH
€ 15.00
15
4363145000
ref: 15
~F.NO.149604
WASHER,REAR FOOTREST RUBBER
€ 16.00
16
0920006010
ref: 16
~F.NO.149604
PIN
€ 2.50
17
0411120158
ref: 17
~F.NO.149604
PIN
€ 1.50
18-1
4360049011
ref: 18-1
F.NO.149605~
FOOTREST ASSEMBLY,REAR
€ 26.50
18-2
4370049011
ref: 18-2
F.NO.149605~
FOOTREST ASSEMBLY,PILLION
€ 25.50
19-1
4361045001
ref: 19-1
F.NO.149605~
BAR,REAR FOOTREST,RIGHT
€ 21.50
19-2
4362045001
ref: 19-2
F.NO.149605~
BAR,REAR FOOTREST,LEFT
€ 13.50
20
4361245001
ref: 20
F.NO.149605~
RUBBER,PILLION FOOTREST
€ 15.00
21
4363145001
ref: 21
F.NO.149605~
WASHER,PILLION FOOTREST RUBBER
€ 16.00
22
0920006010
ref: 22
F.NO.149605~
PIN
€ 2.50
23
0411120158
ref: 23
F.NO.149605~
PIN
€ 1.50
24
0110710308
ref: 24
BOLT 10X30
€ 3.00
25
0832121108
ref: 25
LOCK WASHER
€ 2.00
