GENERATOR

GS1000 1980 (T) (E01 E02 E22 E24)

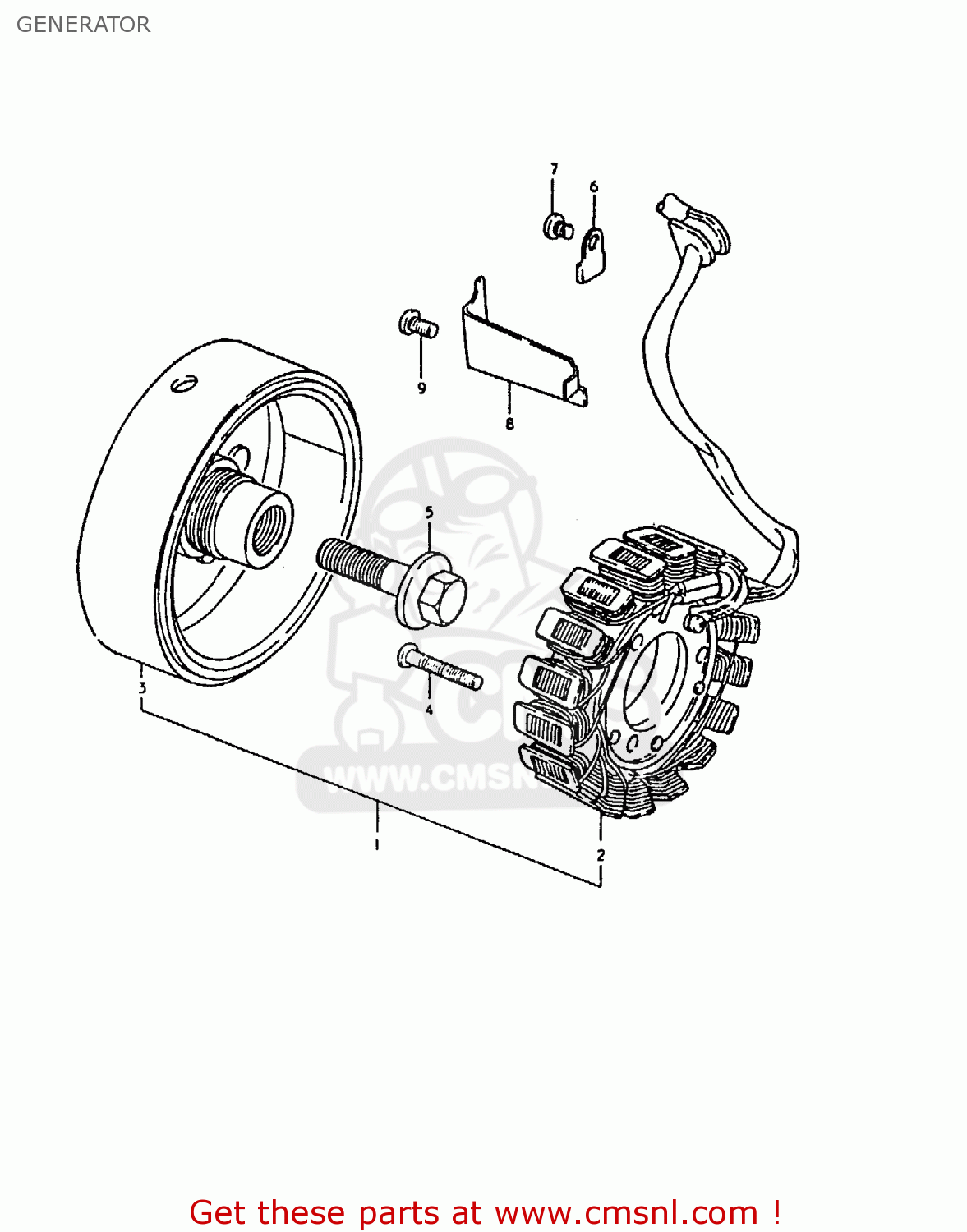

Generator diagram GS1000 1980 (T) (E01 E02 E22 E24)

GENERATOR GS1000 1980 (T) (E01 E02 E22 E24)

GENERATOR GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3140049011
ref: 1

GENERATOR ASSEMBLY

€ 361.50

2

3140149011
ref: 2

STATOR ASSEMBLY

€ 361.50

3

3140249011
ref: 3

ROTOR ASSEMBLY

€ 292.00

4

0211206308
ref: 4

SCREW 6X30

€ 2.50

5

3179149000
ref: 5
TO 09103-12003

BOLT

€ 17.00

6

3149745000
ref: 6

CLAMP,GENERATOR LEAD WIRE

€ 1.50

7

0211205068
ref: 7

SCREW

€ 4.00

8

3149845000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 2.00

9

0211206108
ref: 9

SCREW

€ 1.50
