BATTERY

GS1000 1980 (T) (E01 E02 E22 E24)

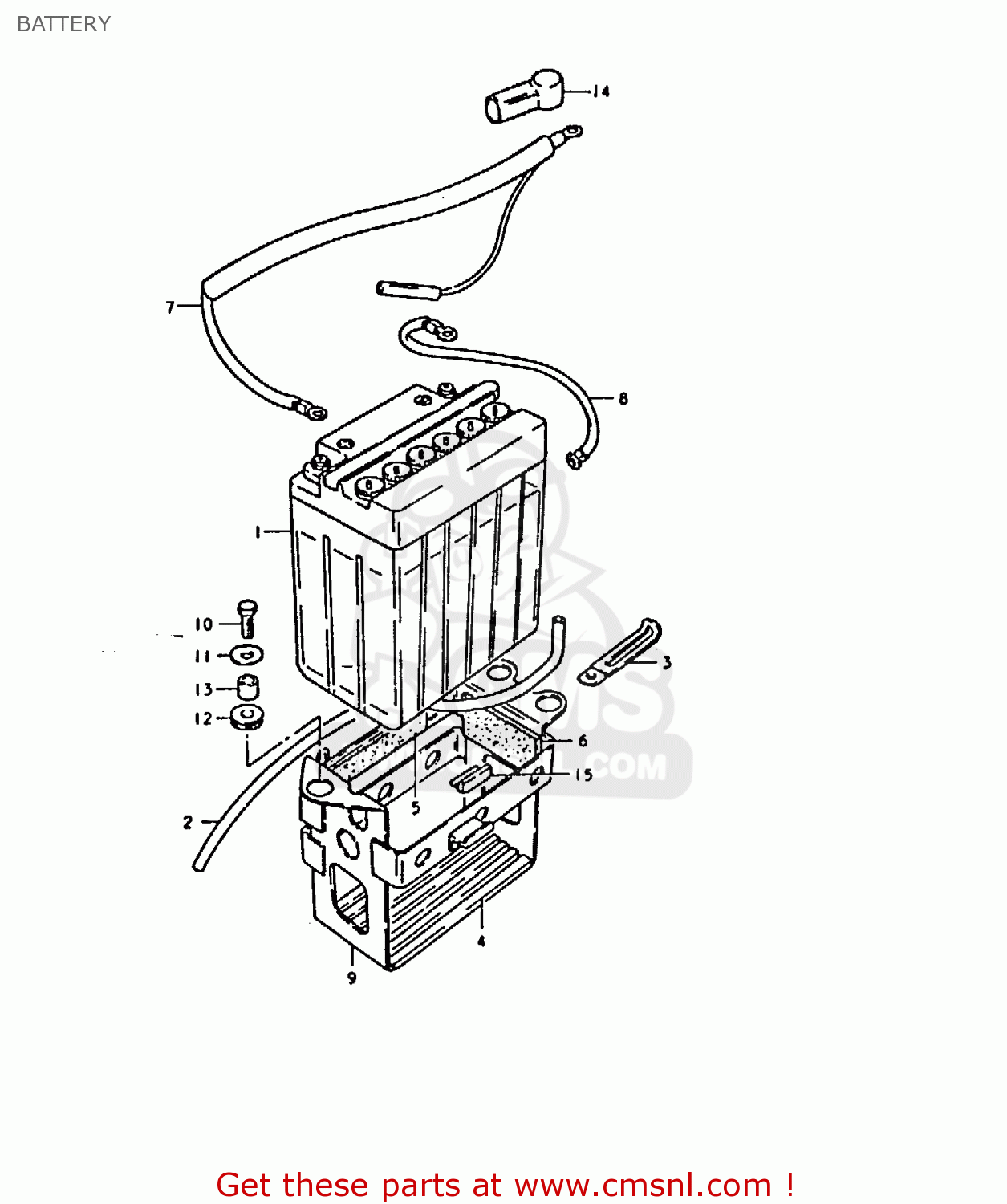

Battery diagram GS1000 1980 (T) (E01 E02 E22 E24)

BATTERY GS1000 1980 (T) (E01 E02 E22 E24)

BATTERY GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

2

3368049000
ref: 2

HOSE,BATTERY EXHAUST

€ 7.00

3

0940406401
ref: 3

CLAMP L:35

€ 2.50

4

3365131000
ref: 4

PROTECTOR,BATTERY

€ 29.00

5

3365249000
ref: 5

PROTECTOR(20X90)X4

€ 2.00

6

3365208410
ref: 6
TO 33651-37000CUT AS

PROTECTOR,BATTERY

€ 5.00

7

3382049000
ref: 7

WIRE,BATTERY PLUS

€ 16.00

8

3385003201
ref: 8

LEAD WIRE,BATTERY(-)

€ 8.50

9

4154049200
ref: 9

HOLDER,BATTERY

€ 49.00

10

0110706168
ref: 10

BOLT, UPPER

€ 3.00

11

0916006020
ref: 11

WASHER

€ 2.00

12

0932008007
ref: 12

CUSHION

€ 4.00

13

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

14

3362445000
ref: 14

CAP,TERMINAL

€ 5.50

15

4711702400
ref: 15

CUSHION,FRAME COVER

€ 2.00
