CYLINDER

GS1000 1980 (T) (E01 E02 E22 E24)

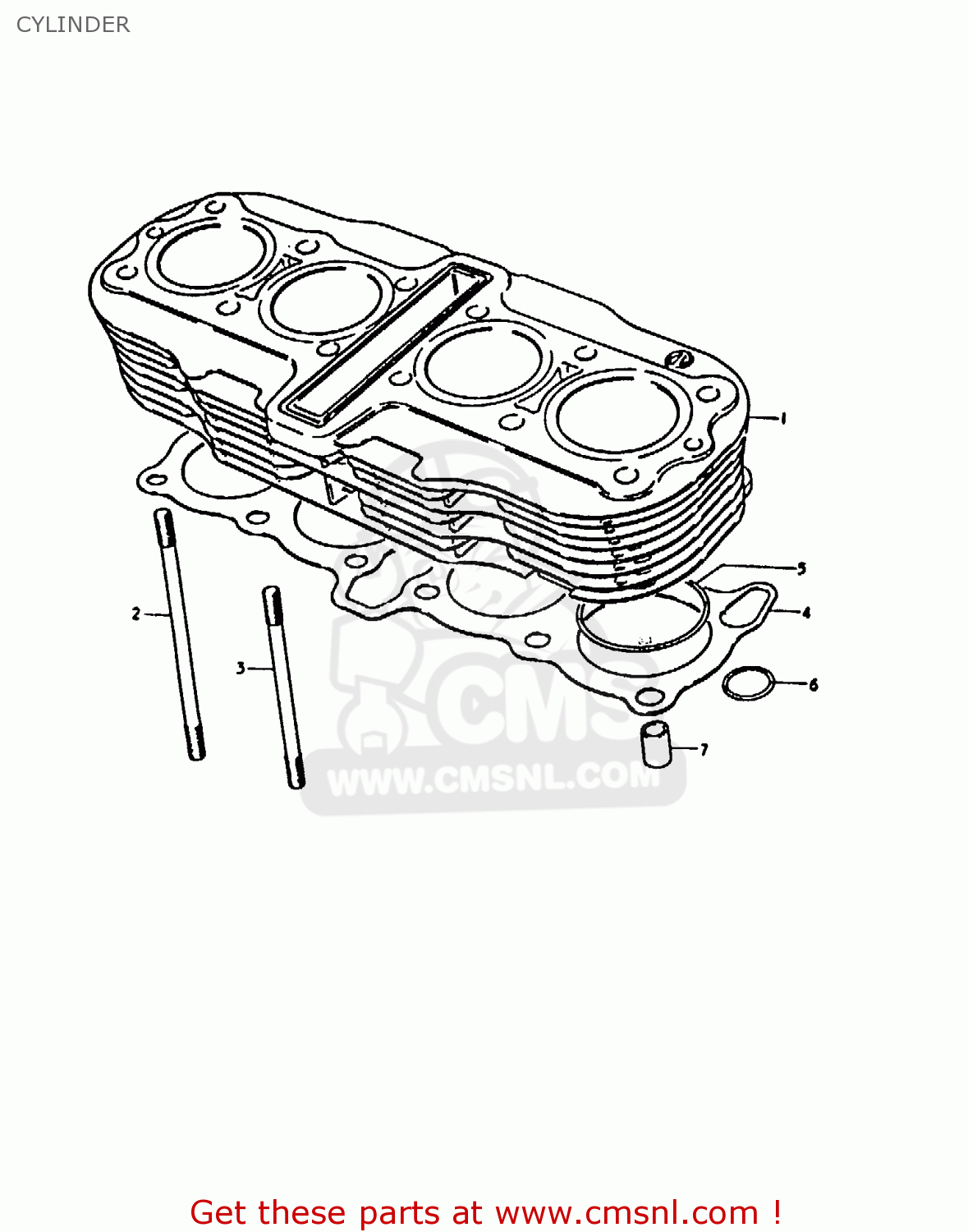

Cylinder diagram GS1000 1980 (T) (E01 E02 E22 E24)

CYLINDER GS1000 1980 (T) (E01 E02 E22 E24)

CYLINDER GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1121049003
ref: 1
FROM 11210-49002

CYLINDER

€ 891.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

1124149000
ref: 4

GASKET,CYLINDER (MCA)

€ 17.00

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00

6

0928021007
ref: 6

O RING(D:3.05)

€ 9.00

7

0920613001
ref: 7

PIN

€ 2.50
