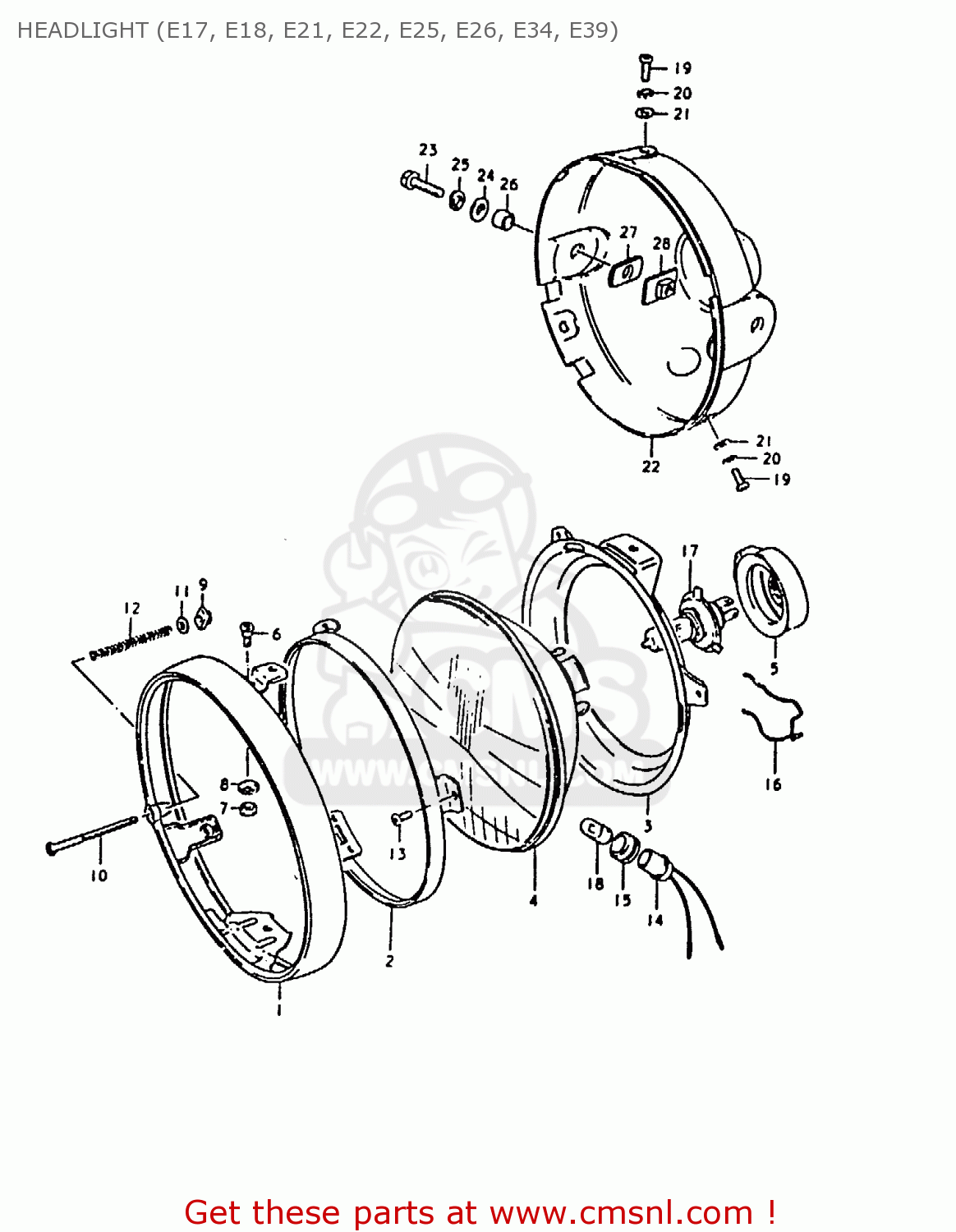

HEADLIGHT (E17, E18, E21, E22, E25, E26, E34, E39)

ref

part #

description

quantity

0

3510049020999
ref: 0

HEADLAMP ASSY

€ 208.00

1

3511145600
ref: 1

RIM

€ 57.50

2

3512745600
ref: 2

RETAINER

€ 39.00

3

3513045600
ref: 3

RING,HEADLAMP UNIT

€ 35.00

4

3512149020
ref: 4

UNIT,HEAD LAMP

€ 136.00

5

3517349020
ref: 5

COVER,HEADLAMP SOCKET

€ 14.00

6

3513625611
ref: 6

SCREW

€ 4.00

7

3513525611
ref: 7

NUT,ADJUSTING

€ 2.50

8

3513345600
ref: 8

SPACER

€ 3.50

9

3513545600
ref: 9

NUT

€ 3.00

10

3515127630
ref: 10

SCREW,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3515445600
ref: 12

SPRING,HEADLAMP ADJUST

€ 3.50

13

0211203088
ref: 13

SCREW

€ 1.50

14

3611830691
ref: 14

SOCKET

€ 12.00

15

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

16

3517249020
ref: 16

CLAMP,HEADLAMP SOCKET

€ 3.50

17

0947112060
ref: 17
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0912505022
ref: 19

SCREW

€ 3.50

20

0916205003
ref: 20

WASHER,LOCK

€ 2.00

21

0916906021
ref: 21

WASHER

€ 2.50

22

5181145002291
ref: 22

HOUSING,HEADLAMP(BLACK)

€ 69.50

23

0120408257
ref: 23

BOLT

€ 2.00

24

0832211088
ref: 24

WASHER

€ 2.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0918008030
ref: 26

SPACER (8.8X12X7)

€ 3.50

27

0932912002
ref: 27

CUSHION

€ 3.00

28

5186045000
ref: 28

PLATE,HEADLAMP HOUSING

€ 2.00

all assemblies
