RIGHT HANDLE SWITCH

GS1000 1980 (T) (E01 E02 E22 E24)

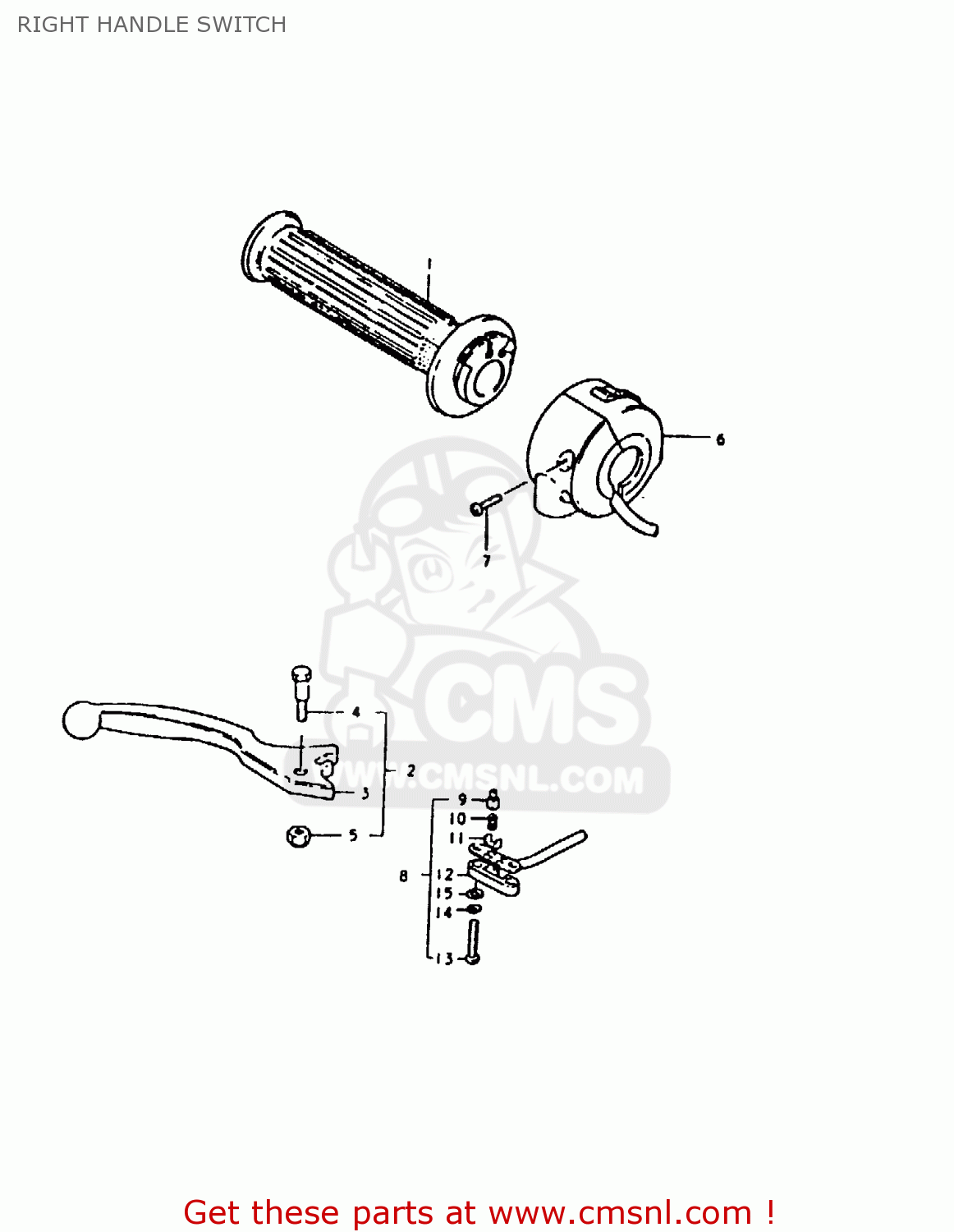

Right handle switch diagram GS1000 1980 (T) (E01 E02 E22 E24)

RIGHT HANDLE SWITCH GS1000 1980 (T) (E01 E02 E22 E24)

RIGHT HANDLE SWITCH GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

0

ref: 0

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5730049101
ref: 2
FROM 57300-49100

LEVER ASSEMBLY,BRAKE

€ 36.50

3

5742049101
ref: 3
FROM 57420-49100

LEVER,BRAKE

€ 36.50

4

5743118621
ref: 4

BOLT

€ 8.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

3720049220
ref: 6

SWITCH ASSY, HANDLE RH

€ 145.50

7

3759149210
ref: 7

SCREW

€ 2.50

8

5746049100
ref: 8

SWITCH ASSEMBLY

€ 40.00

9

5746118600
ref: 9

HOLDER

€ 4.50

10

5746218600
ref: 10

SPRING

€ 4.50

11

5746318600
ref: 11

PLATE

€ 4.50

12

5748133010
ref: 12

COVER,FR BK TERMINAL BASE

€ 19.50

13

0912503105
ref: 13

SCREW

€ 2.50

14

0832121038
ref: 14

LOCK WASHER

€ 1.50

15

0832221038
ref: 15

WASHER

€ 2.00
