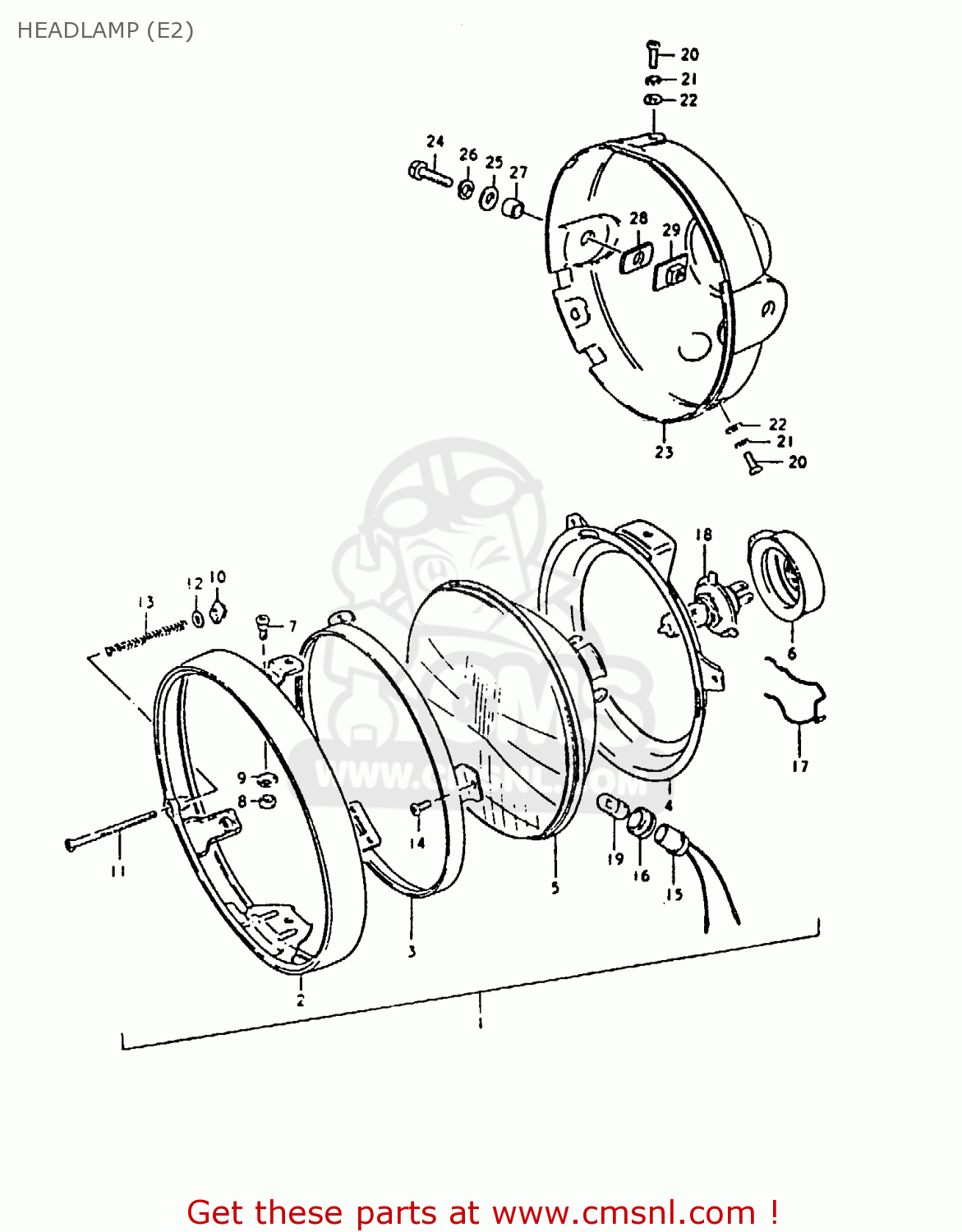

HEADLAMP (E2)

ref

part #

description

quantity

1

3510049040999
ref: 1

HEADLAMP ASSY

€ 230.50

2

3511145600
ref: 2

RIM

€ 57.50

3

3512745600
ref: 3

RETAINER

€ 39.00

4

3513045600
ref: 4

RING,HEADLAMP UNIT

€ 35.00

5

3512149040
ref: 5

UNIT

€ 146.50

6

3517349020
ref: 6

COVER,HEADLAMP SOCKET

€ 14.00

7

3513625611
ref: 7

SCREW

€ 4.00

8

3513525611
ref: 8

NUT,ADJUSTING

€ 2.50

9

3513345600
ref: 9

SPACER

€ 3.50

10

3513545600
ref: 10

NUT

€ 3.00

11

3515127630
ref: 11

SCREW,HEADLAMP ADJUST

€ 3.50

12

3515727630
ref: 12

WASHER

€ 2.50

13

3515445600
ref: 13

SPRING,HEADLAMP ADJUST

€ 3.50

14

0211203088
ref: 14

SCREW

€ 1.50

15

3611830691
ref: 15

SOCKET

€ 12.00

16

3611622630
ref: 16

JOINT,RUBBER

€ 5.00

17

3517249020
ref: 17

CLAMP,HEADLAMP SOCKET

€ 3.50

18

0947112060
ref: 18
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

19

0947112063
ref: 19
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

20

0912505022
ref: 20

SCREW

€ 3.50

21

0916205003
ref: 21

WASHER,LOCK

€ 2.00

22

0916906021
ref: 22

WASHER

€ 2.50

23

5181145002291
ref: 23

HOUSING,HEADLAMP(BLACK)

€ 69.50

24

0120408257
ref: 24

BOLT

€ 2.00

25

0832211088
ref: 25

WASHER

€ 2.00

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0918008030
ref: 27

SPACER (8.8X12X7)

€ 3.50

28

0932912002
ref: 28

CUSHION

€ 3.00

29

5186045000
ref: 29

PLATE,HEADLAMP HOUSING

€ 2.00

all assemblies
