OIL PUMP - OIL FILTER

GS1000 1980 (T) (E01 E02 E22 E24)

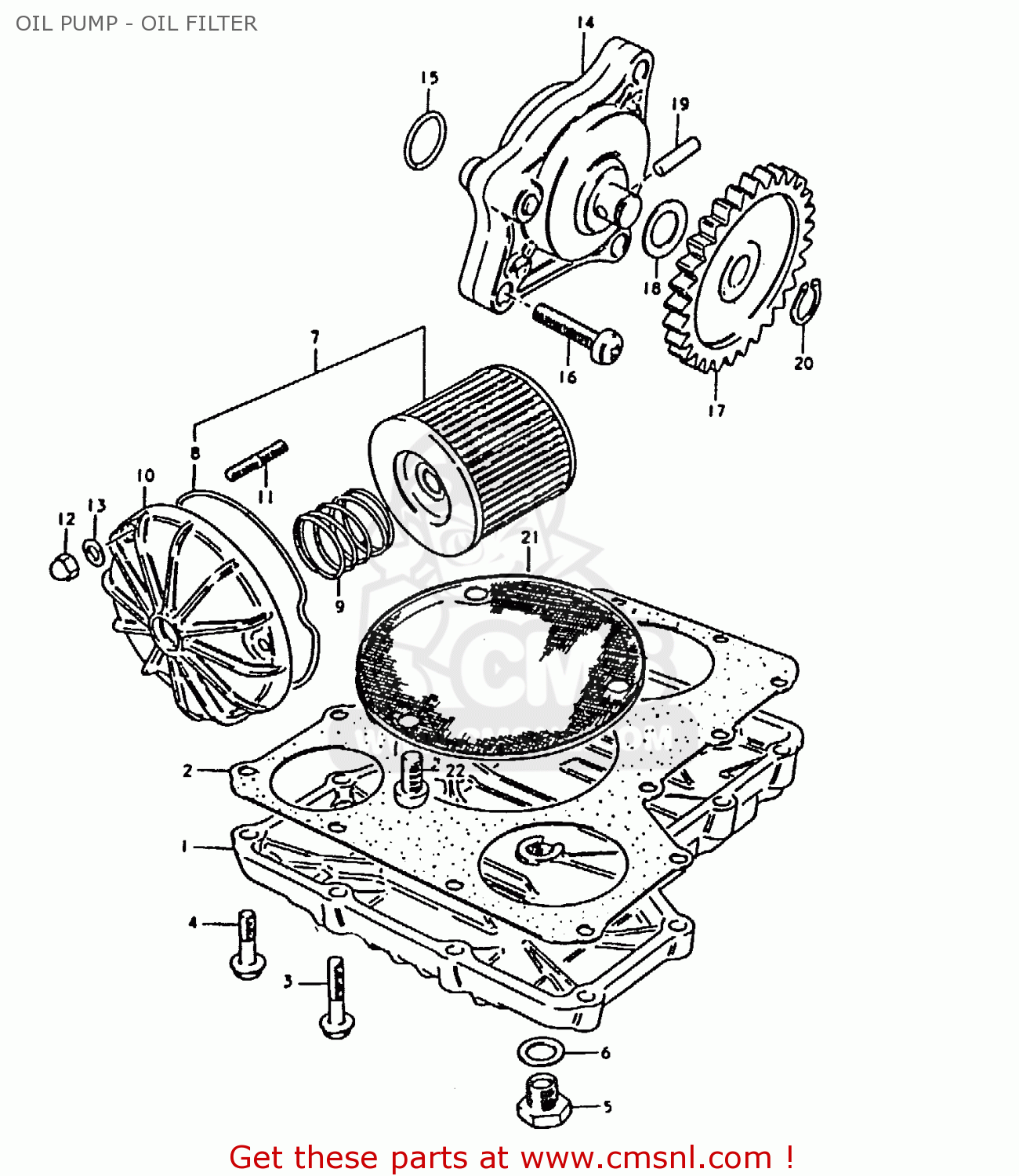

Oil pump - oil filter diagram GS1000 1980 (T) (E01 E02 E22 E24)

OIL PUMP - OIL FILTER GS1000 1980 (T) (E01 E02 E22 E24)
OIL PUMP - OIL FILTER GS1000 1980 (T) (E01 E02 E22 E24)
OIL PUMP - OIL FILTER GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1151145000
ref: 1
PAN,OIL
1151145000
€ 143.50
2
1148945001
ref: 2
GASKET,OIL PAN (MCA)
1148945001
€ 15.50
3
0151706308
ref: 3
BOLT
€ 2.00
4
0151706258
ref: 4
BOLT
0151706258
€ 2.50
5
0924714001
ref: 5
PLUG
0924714001
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
7
1650045810
ref: 7
ENGINE OIL FILTER SET
€ 11.50
8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
9
0944032004
ref: 9
SPRING
0944032004
€ 13.50
10
1651245100
ref: 10
CAP,OIL FILTER
1651245100
€ 37.50
11
0142106208
ref: 11
STUD 6X20
0142106208
€ 2.50
12
0831311068
ref: 12
NUT
0831311068
€ 2.00
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14
1640049011
ref: 14
PUMP ASSEMBLY,OIL
€ 134.00
15
0928013004
ref: 15
O RING(D:1.9,ID:13)
0928013004
€ 2.50
16
0211206258
ref: 16
SCREW
€ 2.00
17
1633149990
ref: 17
GEAR,OIL PUMP DRIVEN
1633149990
€ 84.50
18
0822110185
ref: 18
SHIM
0822110185
€ 2.00
19
0926104009
ref: 19
PIN(4X15.8)
0926104009
€ 1.50
20
0833131109
ref: 20
CIRCLIP
0833131109
€ 2.00
21
1652045000
ref: 21
STRAINER,ENGINE OIL
1652045000
€ 12.00
22
0211206128
ref: 22
SCREW 6X12
0211206128
€ 2.00
