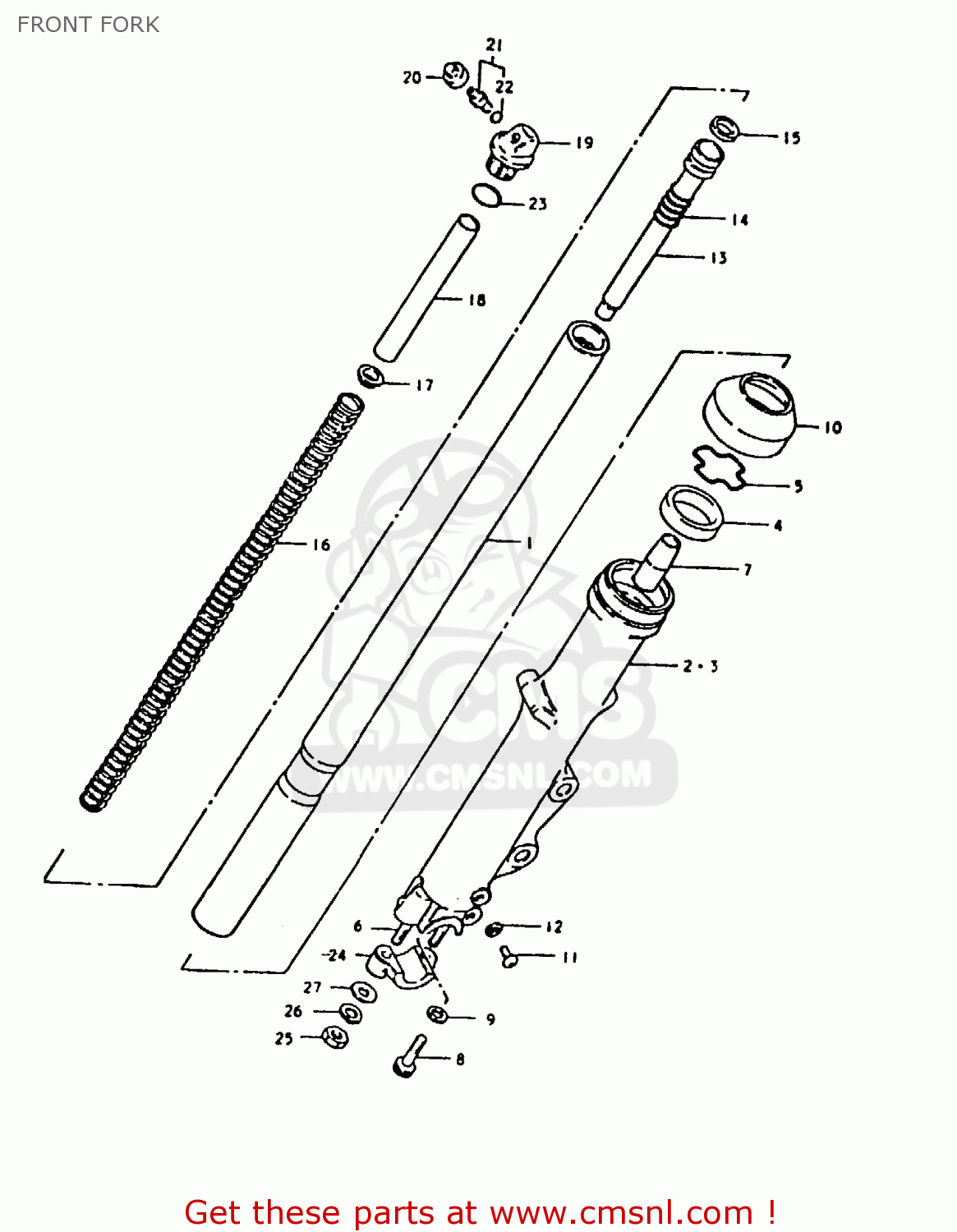

FRONT FORK

ref

part #

description

quantity

0

5110349001
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

0

5110449001
ref: 0

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5111049001
ref: 1

TUBE,FORK,INNER

€ 350.50

2

5113049001
ref: 2

TUBE,FORK,OUTER,RIGHT

€ 189.00

3

5114049001
ref: 3

TUBE,OUTER,LEFT

€ 0.00

4

5115349000
ref: 4

OIL SEAL,FRONT FORK

€ 16.50

5

5115640301
ref: 5

RING,STOPPER

€ 4.50

6

0142108308
ref: 6

STUD BOLT

€ 2.00

7

5119549071
ref: 7

PIECE,OIL LOCK

€ 12.00

8

5114716510
ref: 8

BOLT,FORK CYLINDER(10X25)

€ 3.50

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5117349002
ref: 10

SEAL,DUST

€ 13.00

11

0211204088
ref: 11

SCREW

€ 1.50

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

5114649000
ref: 13

CYLINDER,FRONT FORK

€ 78.00

14

5117749000
ref: 14

SPRING,REBOUND

€ 7.50

15

5119649000
ref: 15

RING,PISTON

€ 9.00

16

5117149000
ref: 16

SPRING,FRONT FORK

€ 42.00

17

5117238010
ref: 17

GUIDE,FRONT FORK SPRING C

€ 9.50

18

5117649000
ref: 18

SPACER,FRONT FORK SPRING

€ 3.50

19

5135141211
ref: 19

CAP

€ 41.00

20

5129449000
ref: 20

CAP,VALVE

€ 22.50

21

5129349001
ref: 21

VALVE

€ 18.00

22

5111741211
ref: 22

O RING

€ 6.50

23

5111716310
ref: 23

O RING

€ 4.50

24

5113249000
ref: 24

HOLDER,AXLE

€ 30.00

25

0914008005
ref: 25

NUT (8MM)

€ 1.50

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0832221088
ref: 27

WASHER

€ 2.00
