LEFT HANDLE SWITCH (GS1000ET E22, GS1000HT, GS1000T)

GS1000 1980 (T) (E01 E02 E22 E24)

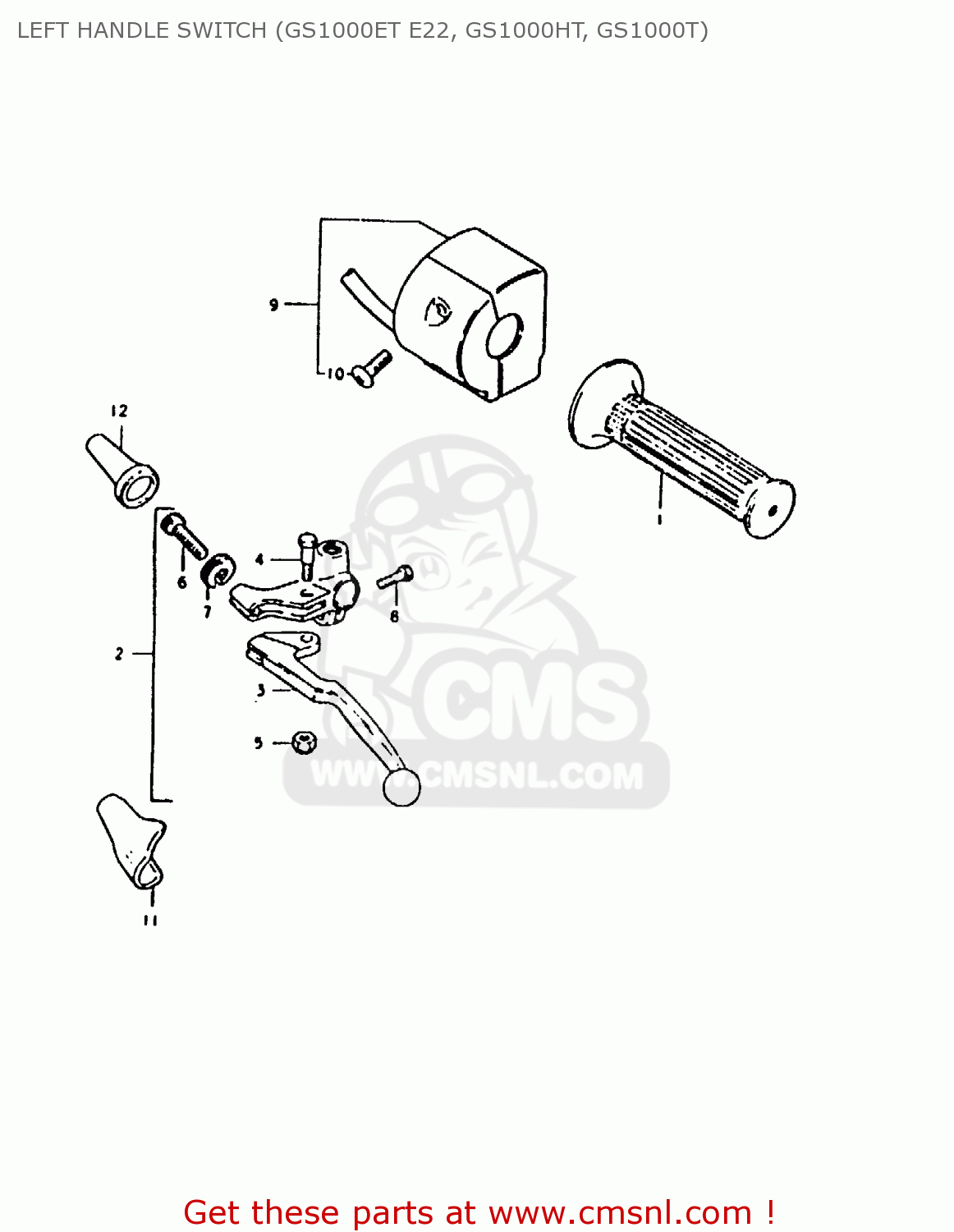

Left handle switch (gs1000et e22, gs1000ht, gs1000t) diagram GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

ref: 0

5721145030
ref: 1

GRIP,LEFT

€ 18.50

5750049100
ref: 2

LEVER ASSEMBLY

€ 49.50

5762049100
ref: 3

LEVER,CLUTCH

€ 28.50

5743111011
ref: 4

BOLT,LEVER

€ 6.00

0831921068
ref: 5

NUT 6MM

€ 2.00

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

0110706208
ref: 8

BOLT

€ 2.00

3740049110
ref: 9

SWITCH ASSY, HANDLE LH

€ 149.00

3759149210
ref: 10

SCREW

€ 2.50

5766131000
ref: 11

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 12

BOOT,CLUTCH CABLE

€ 2.50
