FRONT WHEEL (GS1000ET, GS1000HT)

GS1000 1980 (T) (E01 E02 E22 E24)

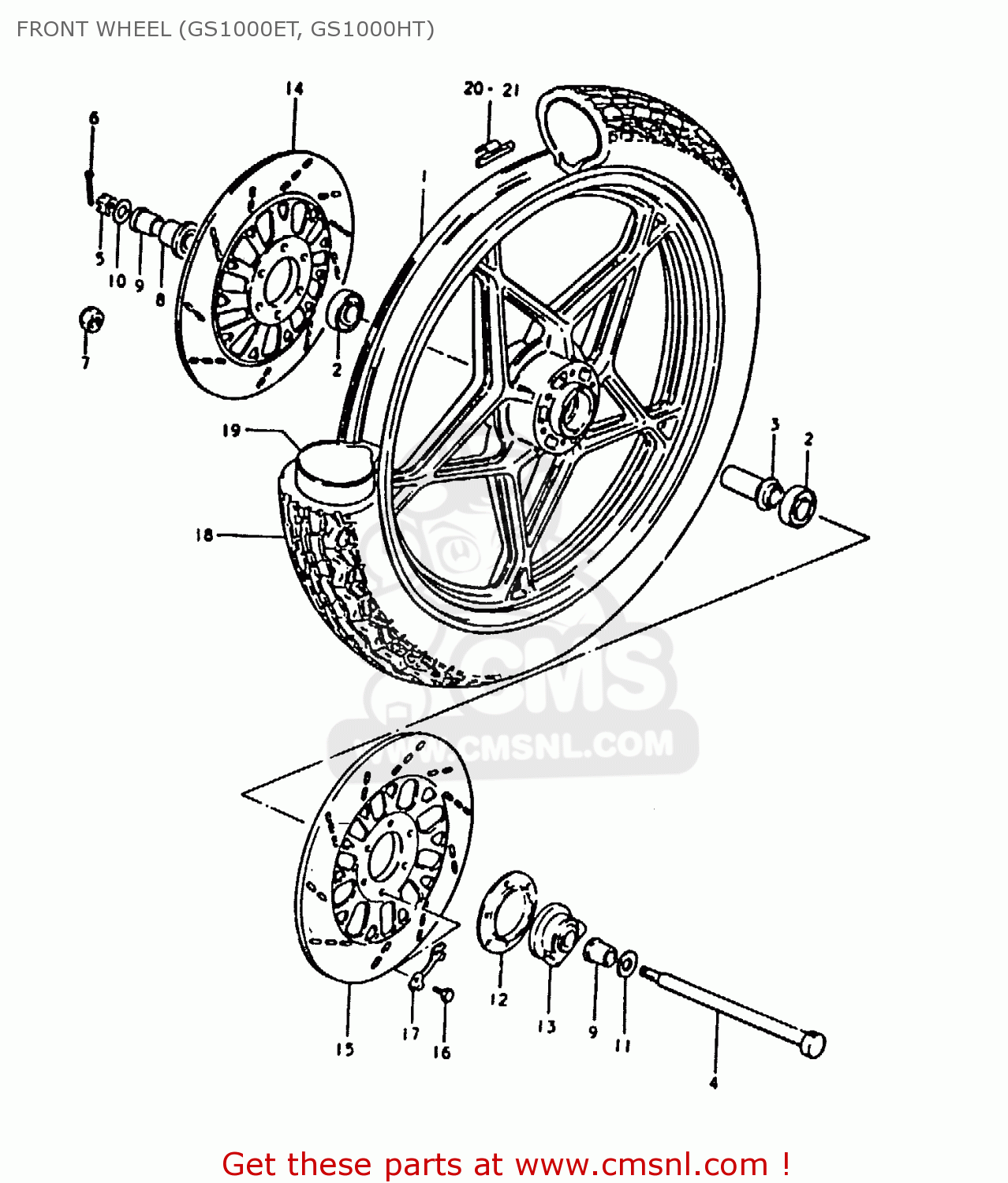

Front wheel (gs1000et, gs1000ht) diagram GS1000 1980 (T) (E01 E02 E22 E24)

FRONT WHEEL (GS1000ET, GS1000HT) GS1000 1980 (T) (E01 E02 E22 E24)
FRONT WHEEL (GS1000ET, GS1000HT) GS1000 1980 (T) (E01 E02 E22 E24)
FRONT WHEEL (GS1000ET, GS1000HT) GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
5411147604
ref: 1
WHEEL, FRONT
€ 491.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
5474018402
ref: 8
SPACER,FR AXLE,R
5474018402
€ 18.50
9
5474149000
ref: 9
SPACER,FR AXLE,L
5474149000
€ 16.50
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
0832211148
ref: 11
WASHER
0832211148
€ 2.00
12
5487145010
ref: 12
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
13
5460018401
ref: 13
BOX ASSEMBLY,SPEEDOMETER GEAR
5460018401
€ 90.50
14
5921145250
ref: 14
DISC,FR BRAKE,R
5921145250
€ 155.50
15
5922145250
ref: 15
DISC,FR BRAKE,L
5922145250
€ 149.00
16
0910008140
ref: 16
BOLT(8X25)
0910008140
€ 2.00
17
0916908016
ref: 17
WASHER
0916908016
€ 3.50
18
5510049010
ref: 18
TIRE,FRONT
€ 319.00
19
5520015010
ref: 19
TUBE,INNER
€ 41.00
20
5541145100
ref: 20
(0~3)
BALANCER,WHEEL
5541145100
€ 7.00
21
5541245100
ref: 21
(0~3)
BALANCER,WHEEL
5541245100
€ 4.00
