FUEL TANK

GS1000 1980 (T) (E01 E02 E22 E24)

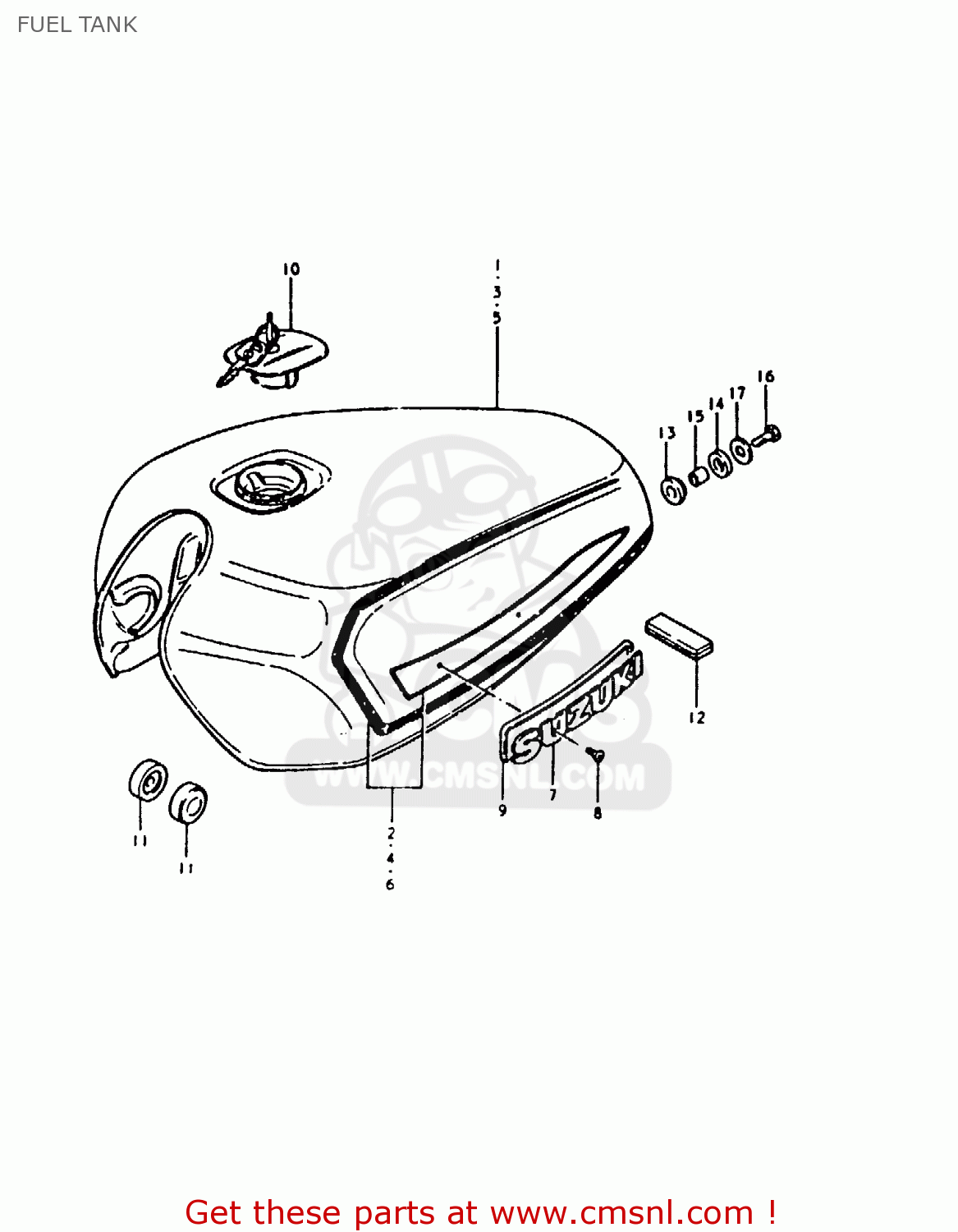

Fuel tank diagram GS1000 1980 (T) (E01 E02 E22 E24)

FUEL TANK GS1000 1980 (T) (E01 E02 E22 E24)
FUEL TANK GS1000 1980 (T) (E01 E02 E22 E24)
FUEL TANK GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
441004908000J
ref: 1
TANK, FUEL (RED)
€ 764.50
2
681104907071W
ref: 2
TAPE SET
€ 0.00
3-1
NOTUSED
ref: 3-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3-2
441004908005K
ref: 3-2
TANK, FUEL (BLUE)
€ 764.50
4
681104907071V
ref: 4
TAPE SET
€ 59.00
5
441004908008E
ref: 5
TANK, FUEL (BLACK)
€ 764.50
6
681104907071V
ref: 6
TAPE SET
€ 59.00
7
6811145010
ref: 7
EMBLEM,FUEL TANK
6811145010
€ 26.00
8
0213203065
ref: 8
SCREW 3X6
0213203065
€ 2.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
4420049701
ref: 10
CAP SET,FUEL TANK
€ 121.00
11
0932910007
ref: 11
CUSHION
0932910007
€ 3.00
12
0932901005
ref: 12
CUSHION
0932901005
€ 11.50
13
0932012013
ref: 13
CUSHION
0932012013
€ 3.00
14
0932012017
ref: 14
CUSHION
0932012017
€ 2.50
15
0918008067
ref: 15
SPACER(8.5X12X19)
0918008067
€ 2.50
16
0110708308
ref: 16
BOLT (8X30)
0110708308
€ 2.50
17
0916008002
ref: 17
WASHER (8.5X29X1.6)
0916008002
€ 2.00
