REAR SWINGING ARM

GS1000 1980 (T) (E01 E02 E22 E24)

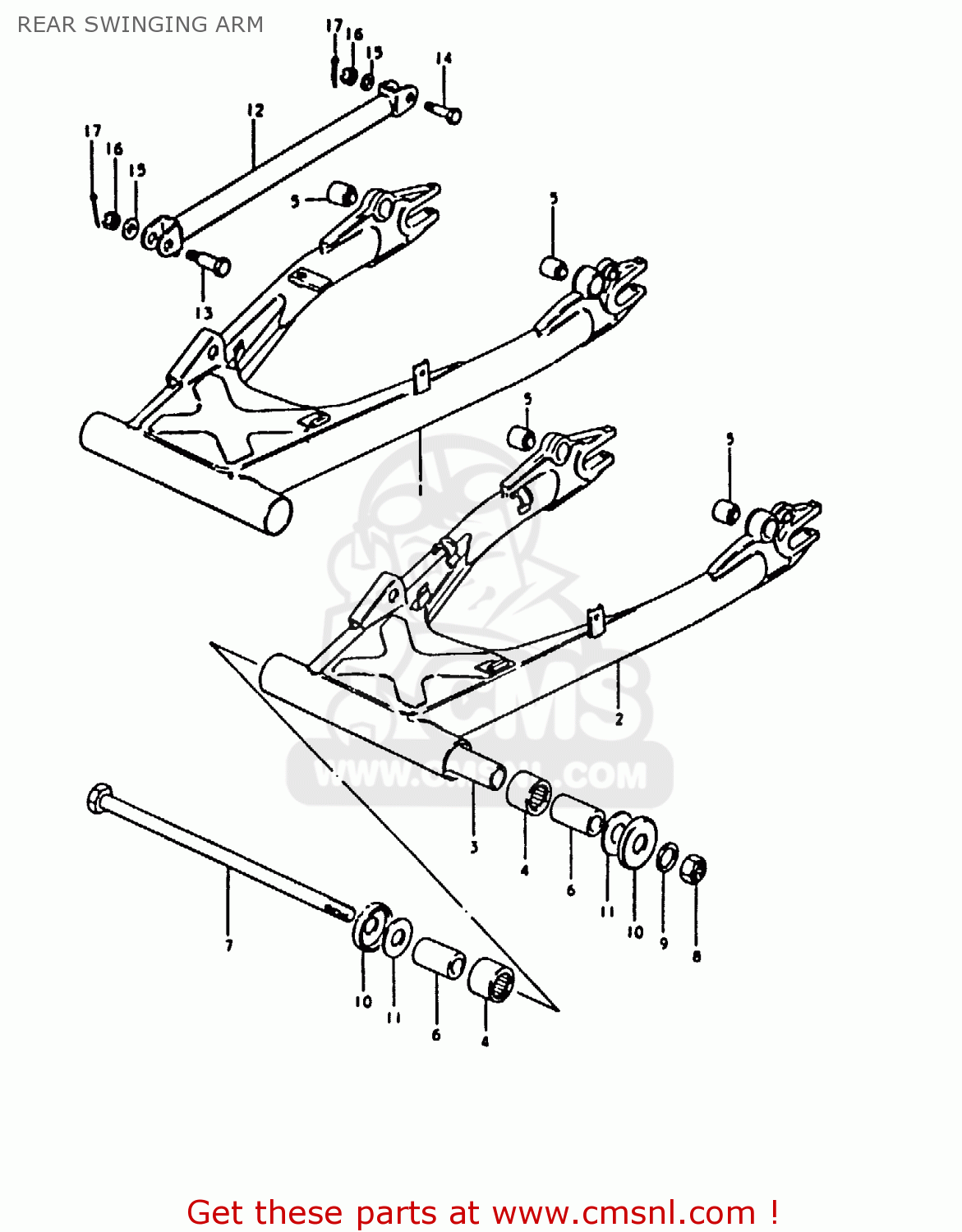

Rear swinging arm diagram GS1000 1980 (T) (E01 E02 E22 E24)

REAR SWINGING ARM GS1000 1980 (T) (E01 E02 E22 E24)
REAR SWINGING ARM GS1000 1980 (T) (E01 E02 E22 E24)
REAR SWINGING ARM GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6110049810019
ref: 1
WITH 69480-49002
SWING ARM ASSEMBLY,REAR
6110049810019
€ 261.50
2
6110049811019
ref: 2
WITH 69480-49003
SWING ARM ASSEMBLY,REAR
€ 261.50
3
0926325024
ref: 3
BEARING(25X33X30)
0926325024
€ 31.50
4
0931910008
ref: 4
BUSH
0931910008
€ 10.50
5
6128249000
ref: 5
SPACER,RR SWGARM PIVOT CTR
6128249000
€ 24.00
6
6121149000
ref: 6
SHAFT,REAR SWING ARM
6121149000
€ 45.00
7
0831921168
ref: 7
NUT 16MM
0831921168
€ 5.00
8
0832211168
ref: 8
WASHER
0832211168
€ 2.00
9
6125149000
ref: 9
SPACER,RR SWGARM PIVOT
6125149000
€ 17.50
10
6126249000
ref: 10
COVER,RR SWGARM DUST SEAL
6126249000
€ 17.50
11
0821116381
ref: 11
WASHER
0821116381
€ 2.50
12
6431049000019
ref: 12
LINK,REAR TORQUE
6431049000019
€ 16.00
13
0911110011
ref: 13
BOLT
0911110011
€ 8.00
14
0910110017
ref: 14
BOLT(10X39)
0910110017
€ 5.00
15
0832211108
ref: 15
WASHER
€ 2.50
16
0831441108
ref: 16
NUT
0831441108
€ 2.50
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
