CYLINDER HEAD COVER

GS1000 1980 (T) (E01 E02 E22 E24)

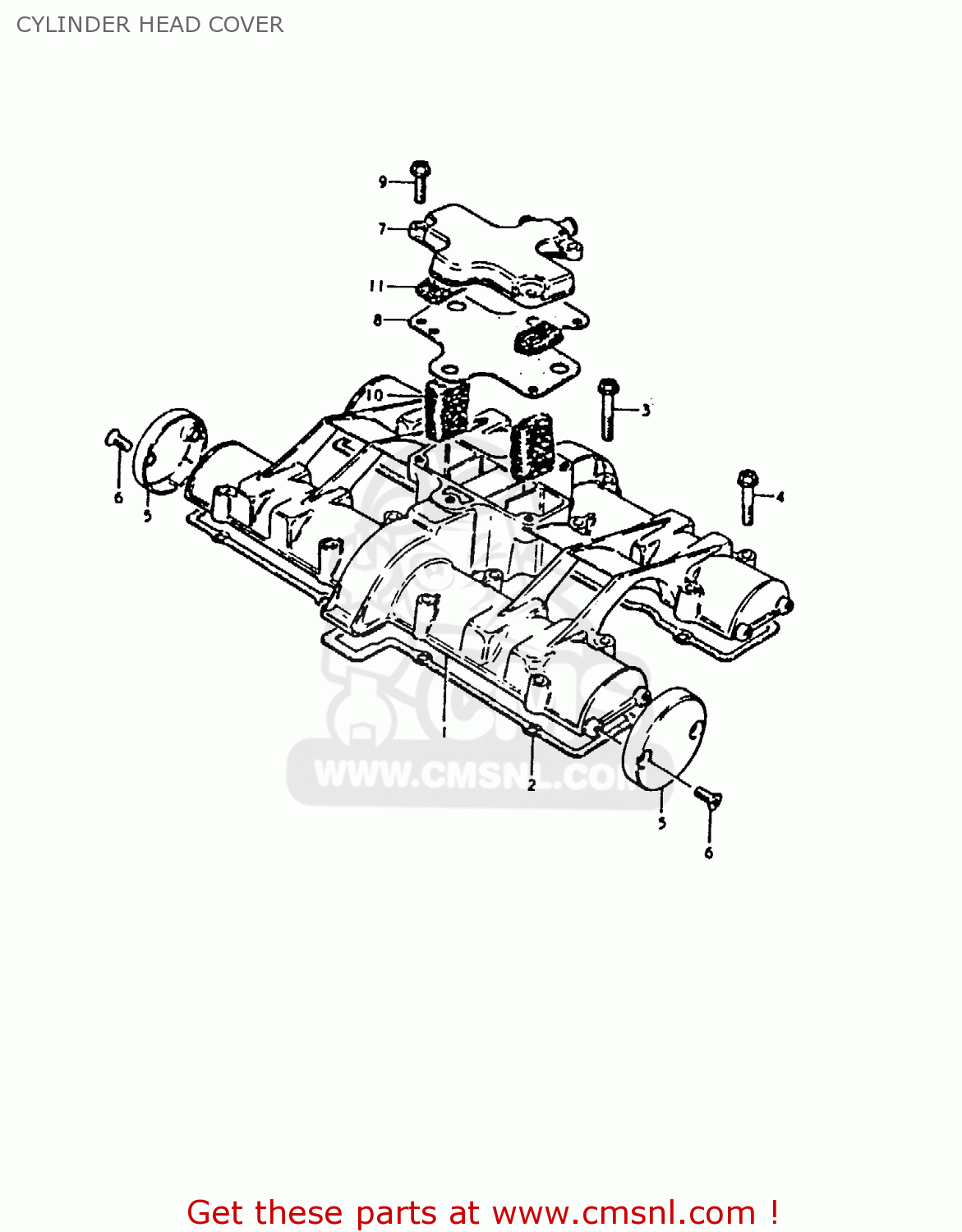

Cylinder head cover diagram GS1000 1980 (T) (E01 E02 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

1117149001
ref: 1-1
FROM 11171-49000 TO

COVER,CYLINDER HEAD

€ 175.00

1-2

1117149002
ref: 1-2

COVER,CYLINDER HEAD

€ 175.00

1117349002
ref: 2
FORM 11173-49001

GASKET,CYLINDER HEAD COVER (MCA)

€ 60.50

0151706408
ref: 3

BOLT

€ 2.50

0151706358
ref: 4

BOLT 6X35

€ 2.50

1117449000
ref: 5

CAP,CYLINDER HEAD COVER

€ 38.00

0213205127
ref: 6

SCREW 5X12

€ 2.50

1117647010
ref: 7

COVER,BREATHER

€ 32.50

1117747001
ref: 8

GASKET (MCA)

€ 19.50

0151706258
ref: 9

BOLT

€ 2.50

1118645000
ref: 10

COVER,BREATHER

€ 5.50

1118745000
ref: 11

SEPARATOR,OIL BREATHER

€ 6.50
