REAR FENDER EXTENSION

GS1000 1980 (T) (E01 E02 E22 E24)

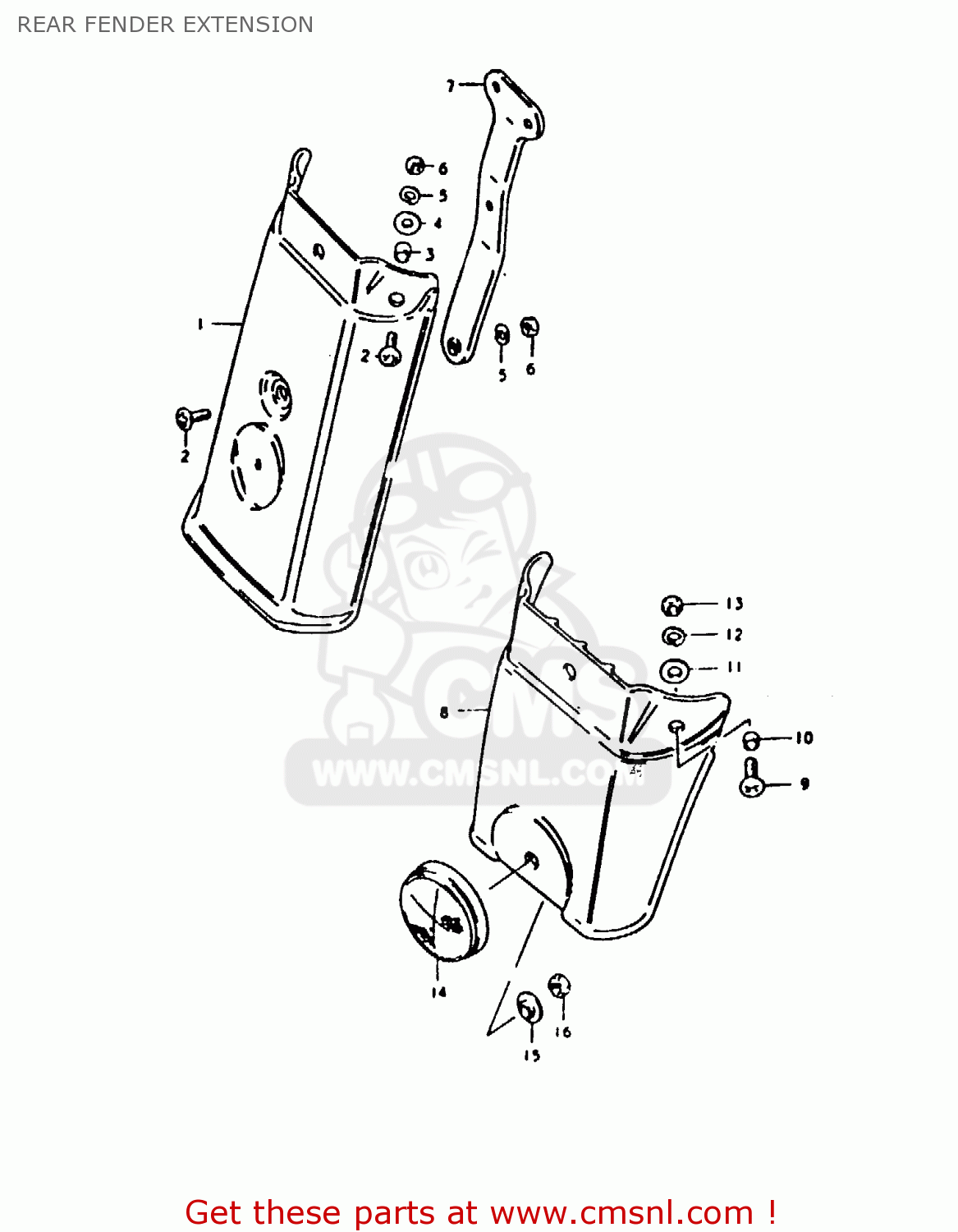

Rear fender extension diagram GS1000 1980 (T) (E01 E02 E22 E24)

REAR FENDER EXTENSION GS1000 1980 (T) (E01 E02 E22 E24)
REAR FENDER EXTENSION GS1000 1980 (T) (E01 E02 E22 E24)
REAR FENDER EXTENSION GS1000 1980 (T) (E01 E02 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6331149010
ref: 1
E17,E18,E39
EXTENSION, REAR FENDER
6331149010
€ 62.50
2
0912506009
ref: 2
E17,E18,E39
SCREW (6X15)
0912506009
€ 3.00
3
0918006001
ref: 3
E17,E18,E39
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
4
0916006028
ref: 4
E17,E18,E39
WASHER(6.5X18X1)
0916006028
€ 1.50
5
0832121068
ref: 5
E17,E18,E39
LOCK WASHER
0832121068
€ 2.50
6
0831011068
ref: 6
E17,E18,E39
NUT
0831011068
€ 2.50
7
6331245000
ref: 7
E17,E18,E39
BRACE, REAR FENDER EXTENSION
6331245000
€ 3.50
8
6331149000
ref: 8
E22,E25,E26
EXTENSION,REAR FENDER
6331149000
€ 16.00
9
0912506009
ref: 9
E22,E25,E26
SCREW (6X15)
0912506009
€ 3.00
10
0918006001
ref: 10
E22,E25,E26
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
11
0916006028
ref: 11
E22,E25,E26
WASHER(6.5X18X1)
0916006028
€ 1.50
12
0832121068
ref: 12
E22,E25,E26
LOCK WASHER
0832121068
€ 2.50
13
0831011068
ref: 13
E22,E25,E26
NUT
0831011068
€ 2.50
14
3597045611
ref: 14
E22,E25,E26
REFLECTOR,REFLEX
€ 47.50
15
0918006048
ref: 15
E22,E25,E26
SPACER
0918006048
€ 2.00
16
0831011058
ref: 16
E22,E25,E26
NUT
0831011058
€ 2.50
