BATTERY

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

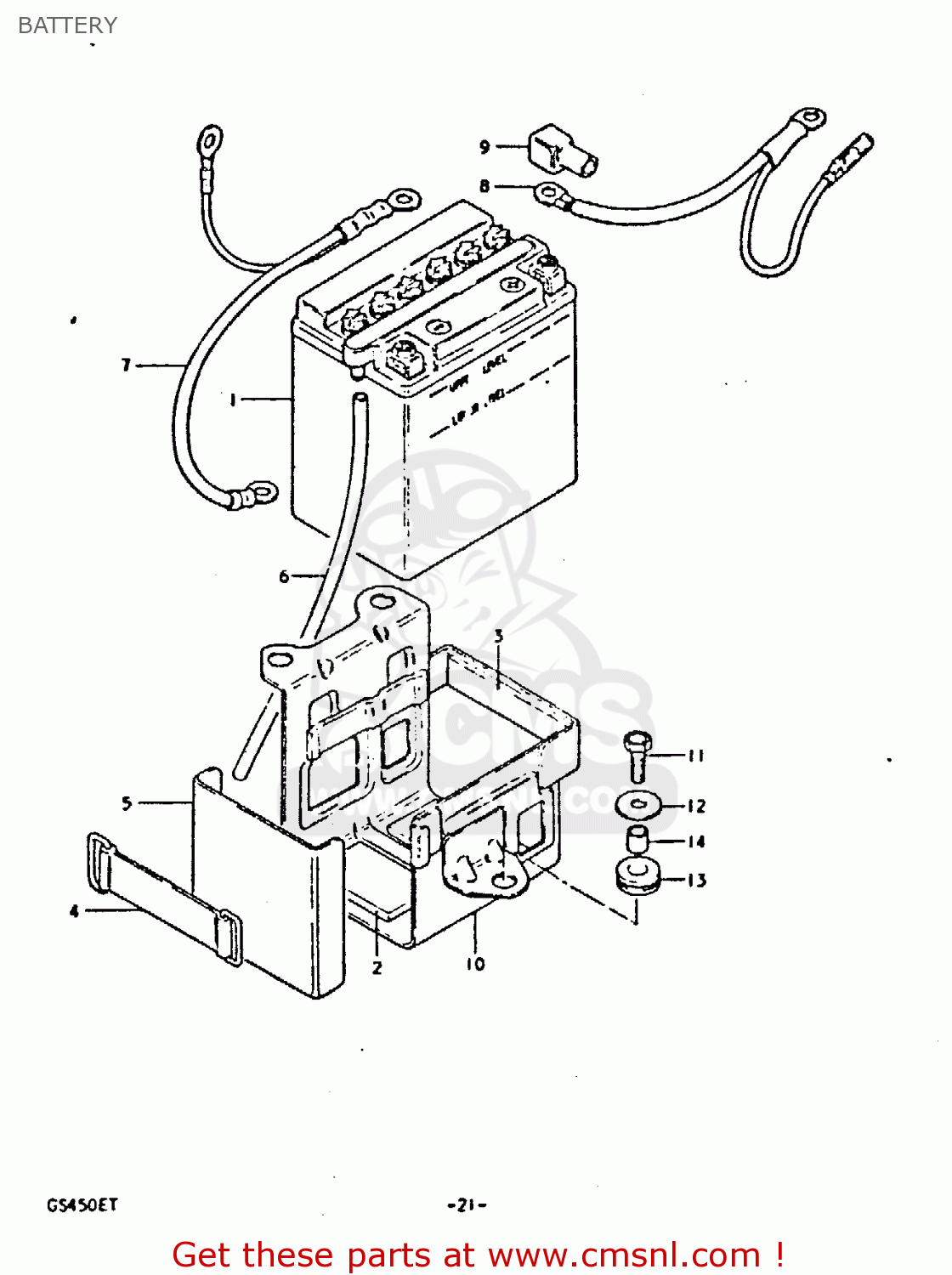

Battery diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

3365125001
ref: 2

CUSHION,BATTERY

€ 4.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0946200008
ref: 4

BAND

€ 4.50

3366144100
ref: 5

COVER,BATTERY

€ 4.50

3368008401
ref: 6

HOSE,BATTERY EXHAUST

€ 4.50

3385044101
ref: 7

CORD,BATTERY MINUS

€ 8.50

3382045001
ref: 8

WIRE,BATTERY PLUS

€ 19.50

3362445000
ref: 9

CAP,TERMINAL

€ 5.50

4154044100
ref: 10

HOLDER,BATTERY

€ 26.00

0110706208
ref: 11

BOLT

€ 2.00

0916006007
ref: 12

WASHER

€ 2.00

0932008001
ref: 13

CUSHION

€ 3.50

0918006011
ref: 14

SPACER (6.1X9X9)

€ 2.00
