CARBURETOR

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

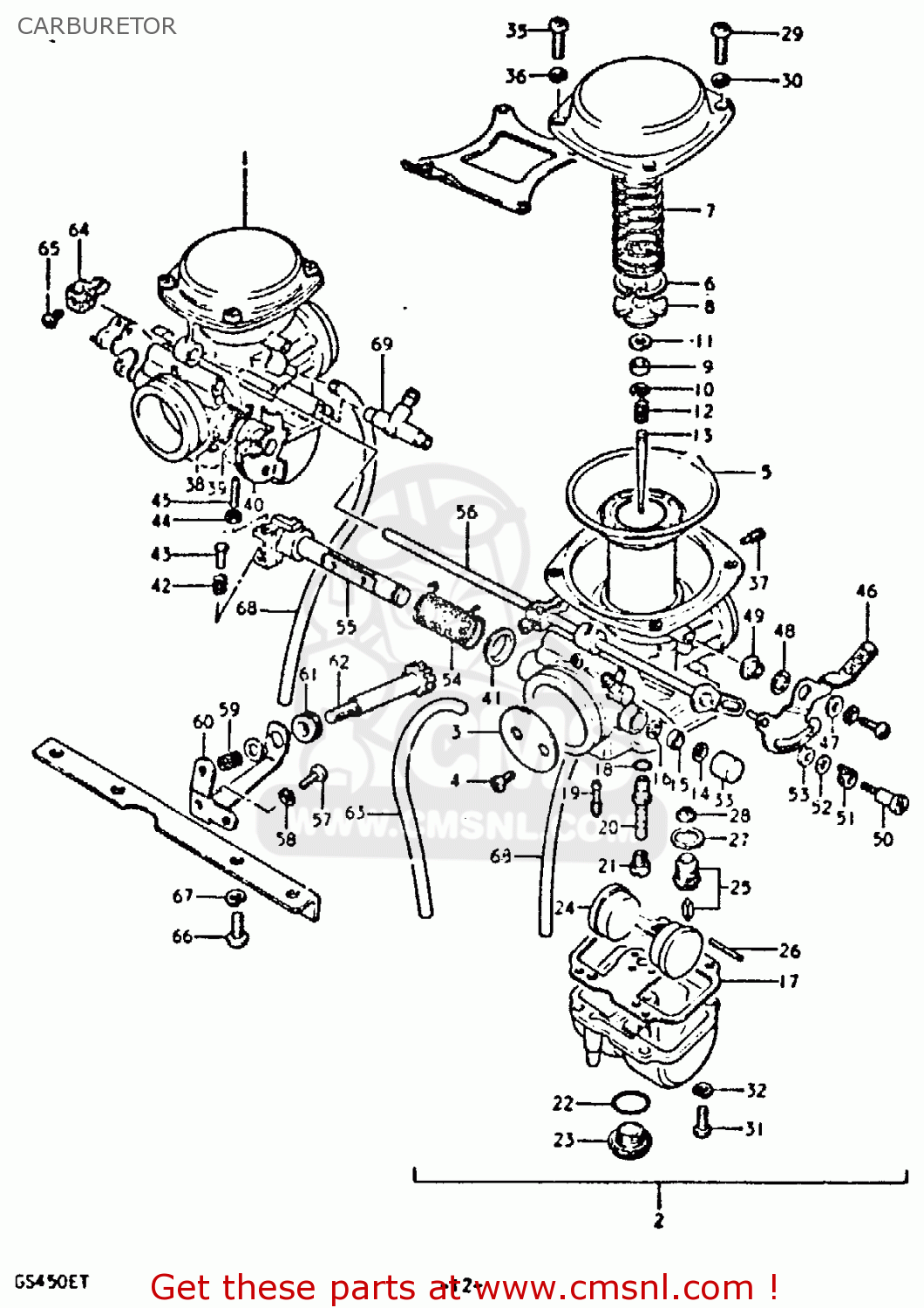

Carburetor diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

CARBURETOR GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
CARBURETOR GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
CARBURETOR GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
1320044100
ref: 0
CARBURETOR ASSY
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-1
1320144100
ref: 1-1
CARBURETOR ASSY, RH
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
1320244100
ref: 2-1
CARBURETOR ASSY, LH
€ 0.00
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
1355144110
ref: 3
VALVE,THROTTLE
€ 0.00
4
1360444080
ref: 4
SCREW
1360444080
€ 3.50
5
1350044110
ref: 5
DIAPHRAGM
1350044110
€ 222.00
6
1358144030
ref: 6
E RING
1358144030
€ 6.50
7
1350344030
ref: 7
SPRING,DIAPHRAGM
1350344030
€ 8.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1338744030
ref: 9
RING
1338744030
€ 5.00
10
1339444010
ref: 10
CLIP
€ 3.50
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12
1338844030
ref: 12
SPRING
1338844030
€ 6.00
13
1338344100
ref: 13
NEEDLE, JET (4C3-3)
1338344100
€ 13.50
14
1361744080
ref: 14
E RING
1361744080
€ 3.50
15
1355747070
ref: 15
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
16
1355644010
ref: 16
SEAL
€ 3.50
17
1325144012
ref: 17
GASKET,FLOAT CHAMBER (NAS)
1325144012
€ 13.50
18
1329531210
ref: 18
O-RING
1329531210
€ 2.50
19
0949217007
ref: 19
JET, PILOT (17.5)
€ 8.00
20
0949400271
ref: 20
JET, NEEDLE (Y-6)
0949400271
€ 16.00
21-1
0949123013
ref: 21-1
JET,MAIN
0949123013
€ 11.50
21-2
NOTUSED
ref: 21-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
1324644010
ref: 22
O-RING
1324644010
€ 5.00
23
1324732210
ref: 23
SCREW,GUIDE
1324732210
€ 13.00
24
1325231210
ref: 24
FLOAT
1325231210
€ 33.50
25
1337044010
ref: 25
VALVE ASSY,NEEDLE
1337044010
€ 57.00
26
1325401010
ref: 26
PIN,FLOAT
1325401010
€ 3.00
27
1339216600
ref: 27
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
28
1337644080
ref: 28
FILTER
1337644080
€ 6.50
29
0211105158
ref: 29
SCREW
0211105158
€ 2.50
30
0832121058
ref: 30
LOCK WASHER
0832121058
€ 2.00
31
0211204128
ref: 31
SCREW
0211204128
€ 1.50
32
0832121048
ref: 32
LOCK WASHER
0832121048
€ 2.00
33
1357847070
ref: 33
CAP
1357847070
€ 5.50
34
1343644010
ref: 34
GASKET
€ 7.00
35
0211205168
ref: 35
SCREW
0211205168
€ 2.50
36
0832121058
ref: 36
LOCK WASHER
0832121058
€ 2.00
37
0949332003
ref: 37
JET,AIR(1.6)
0949332003
€ 9.00
38
1357331610
ref: 38
FOR RH CARBURETOR
SPRING
€ 0.00
39
1357444110
ref: 39
FOR RH CARBURETOR
RING
€ 0.00
40
1355044120
ref: 40
FOR RH CARBURETOR
SHAFT ASSEMBLY
€ 0.00
41
1338744110
ref: 41
FOR LH CARBURETOR
RING
€ 0.00
42
1326844110
ref: 42
FOR LH CARBURETOR
SPRING,THROTTLE SCREW
€ 0.00
43
1356344110
ref: 43
FOR LH CARBURETOR
PIN,THROTTLE LEVER
€ 0.00
44
1360747070
ref: 44
FOR LH CARBURETOR
NUT
1360747070
€ 4.00
45
1360547070
ref: 45
FOR LH CARBURETOR
SCREW
1360547070
€ 5.50
46
1341344110
ref: 46
FOR LH CARBURETOR
LEVER,STARTER
€ 19.50
47
1343244110
ref: 47
FOR LH CARBURETOR
WASHER,STARTER LEVER (4.1X12X0.8)
1343244110
€ 2.00
48
1361544010
ref: 48
FOR LH CARBURETOR
WASHER,STARTER LEVER
1361544010
€ 3.00
49
1343231210
ref: 49
FOR LH CARBURETOR
RING,STARTER LEVER
1343231210
€ 3.00
50
1360544110
ref: 50
FOR LH CARBURETOR
SCREW
1360544110
€ 5.50
51
1338844110
ref: 51
FOR LH CARBURETOR
SPRING,STARTER LEVER S
€ 0.00
52
1343244120
ref: 52
FOR LH CARBURETOR
WASHER
€ 2.50
53
1343233110
ref: 53
FOR LH CARBURETOR
WASHER
1343233110
€ 5.00
54
1357344110
ref: 54
FOR LH CARBURETOR
SPRING
€ 0.00
55
1355044110
ref: 55
FOR LH CARBURETOR
SHAFT ASSEMBLY
€ 0.00
56
1341044110
ref: 56
SHAFT,STARTER
1341044110
€ 29.00
57
0211205088
ref: 57
SCREW
0211205088
€ 2.00
58
0832121058
ref: 58
LOCK WASHER
0832121058
€ 2.00
59
1327193011
ref: 59
SPRING
1327193011
€ 4.50
60
1362744110
ref: 60
BRACKET,THROTTLE ADJUST
€ 12.50
61
1368144110
ref: 61
BUSHING,THROTTLE ADJUSTER
1368144110
€ 13.00
62
1326747070
ref: 62
SCREW
1326747070
€ 21.00
63
1368344050
ref: 63
HOSE (4.5*8*180)
€ 0.00
64
1342244110
ref: 64
ARM, STARTER
€ 0.00
65
1360544080
ref: 65
SCREW
€ 3.00
66
0211206128
ref: 66
SCREW 6X12
0211206128
€ 2.00
67
0832121068
ref: 67
LOCK WASHER
0832121068
€ 2.50
68
1368344010
ref: 68
HOSE
€ 14.00
69
1368544110
ref: 69
NIPPLE
1368544110
€ 34.50
