REAR COMBINATION LAMP (E22)

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

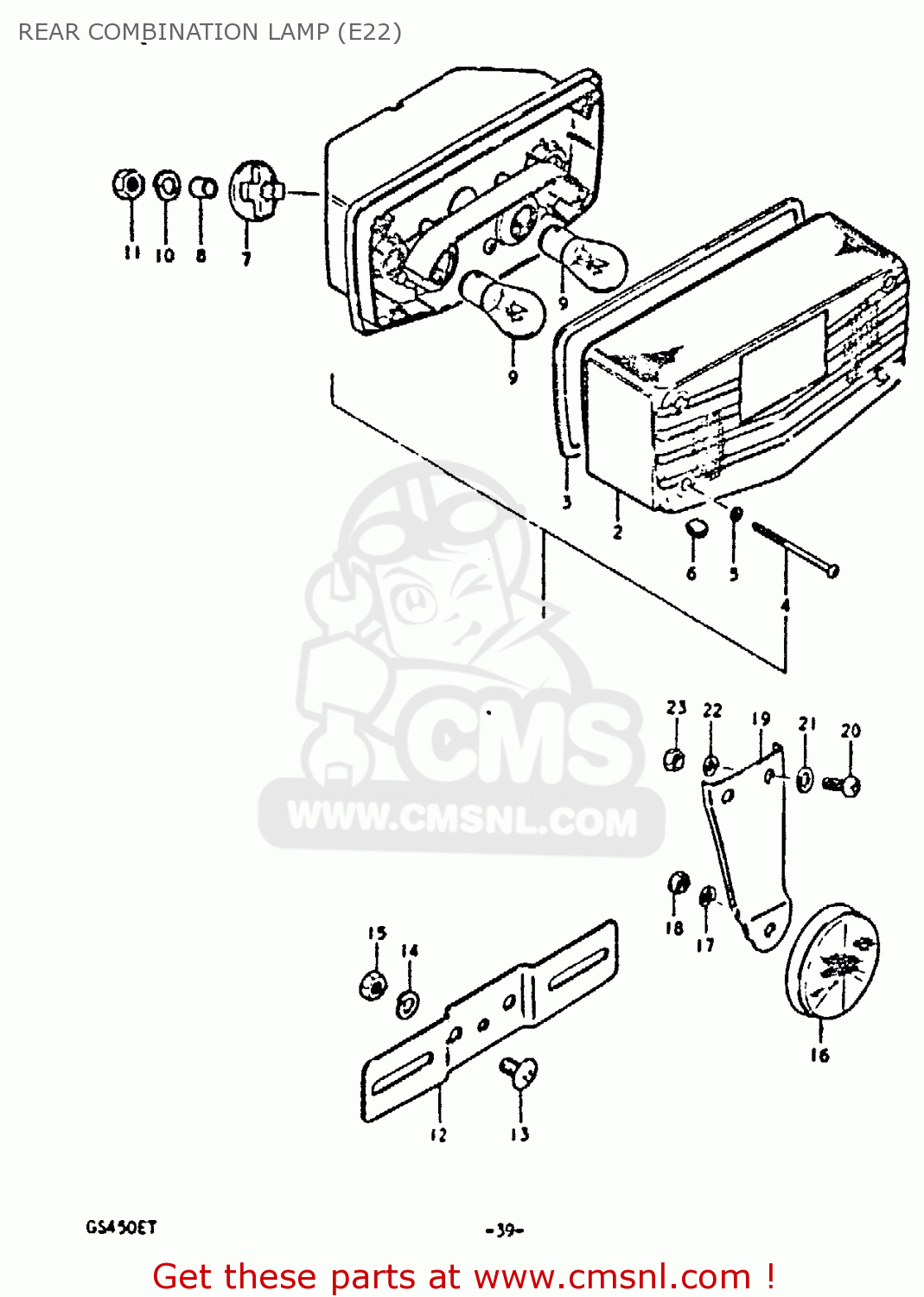

Rear combination lamp (e22) diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

3571044190999
ref: 1

LAMP ASSY, REAR COMBINATION

€ 0.00

3571244190
ref: 2

LENS

€ 39.50

3571344130
ref: 3

GASKET,REAR COMBINATION LAMP LENS (NAS)

€ 6.50

3572344130
ref: 4

SCREW

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

3576544130
ref: 7

CUSHION,REAR COMBINATION LAMP

€ 6.50

3576744130
ref: 8

SPACER,REAR COMBINATION LAMP

€ 2.00

0947112046
ref: 9
PHILIPS @m K15827

BULB(12V21/5W)

€ 1.50

0832121068
ref: 10

LOCK WASHER

€ 2.50

0831011068
ref: 11

NUT

€ 2.50

3592744110
ref: 12

PLATE,RR LICENSE

€ 22.50

0214206167
ref: 13

SCREW

€ 2.00

0832121068
ref: 14

LOCK WASHER

€ 2.50

0831011068
ref: 15

NUT

€ 2.50

3597030910
ref: 16

REFLEX REFLECTOR,RR

€ 47.50

0832121058
ref: 17

LOCK WASHER

€ 2.00

0831011058
ref: 18

NUT

€ 2.50

3597444190
ref: 19

BRACKET

€ 0.00

0211205128
ref: 20

SCREW

€ 2.50

0832221058
ref: 21

WASHER

€ 2.50

0832121058
ref: 22

LOCK WASHER

€ 2.00

0831011058
ref: 23

NUT

€ 2.50
