FRONT BRAKE HOSE

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

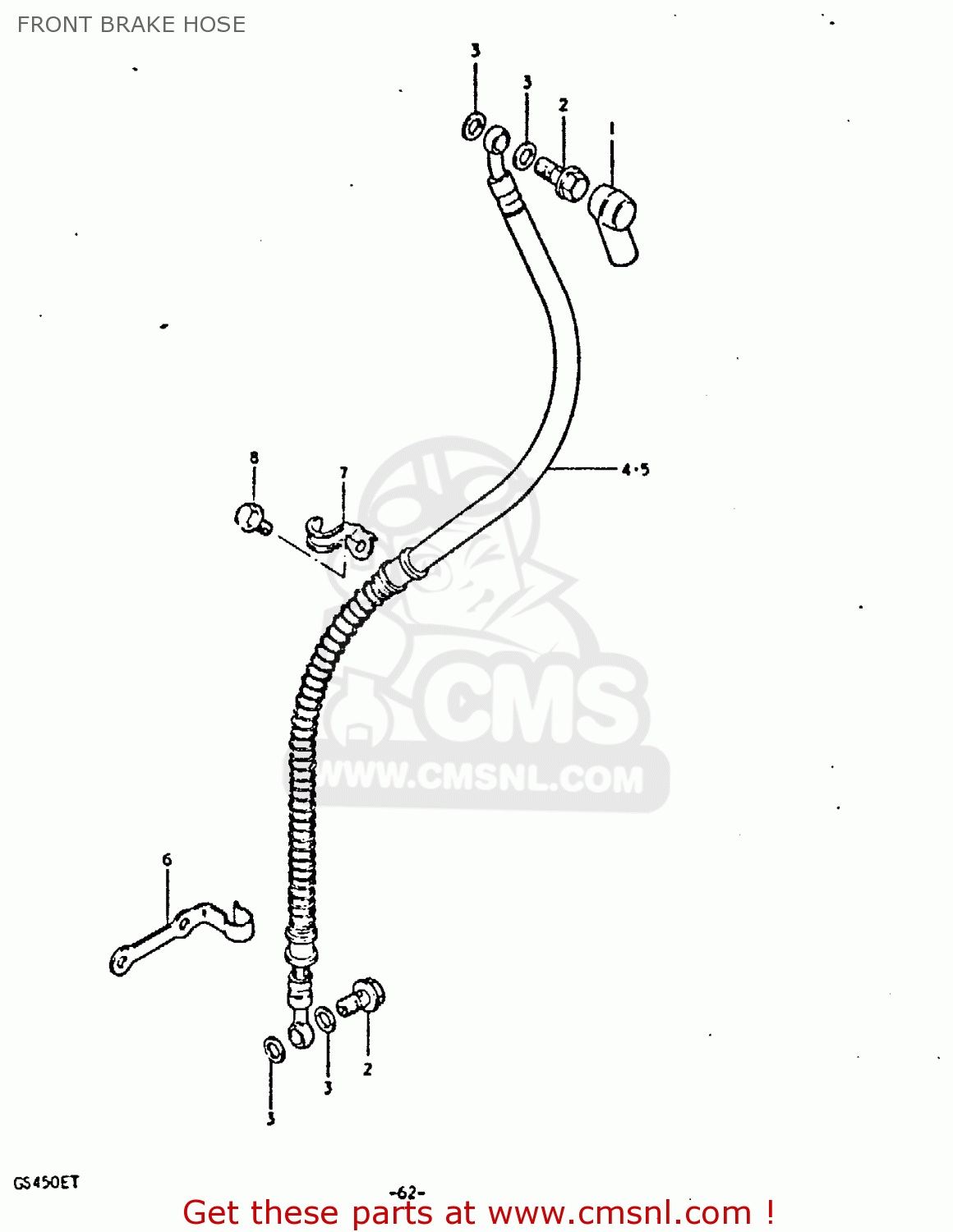

Front brake hose diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

FRONT BRAKE HOSE GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

FRONT BRAKE HOSE GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010007
ref: 2

BOLT,UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4

5948011401
ref: 4

HOSE,FRONT BRAKE

€ 65.50

5

5948011411
ref: 5

HOSE,FRONT BRAKE

€ 60.00

6

5926849001
ref: 6

GUIDE,BRAKE HOSE NO.2

€ 7.00

7

5924611400
ref: 7

GUIDE,BRAKE HOSE NO.3

€ 4.50

8

0151406105
ref: 8

BOLT

€ 1.50
