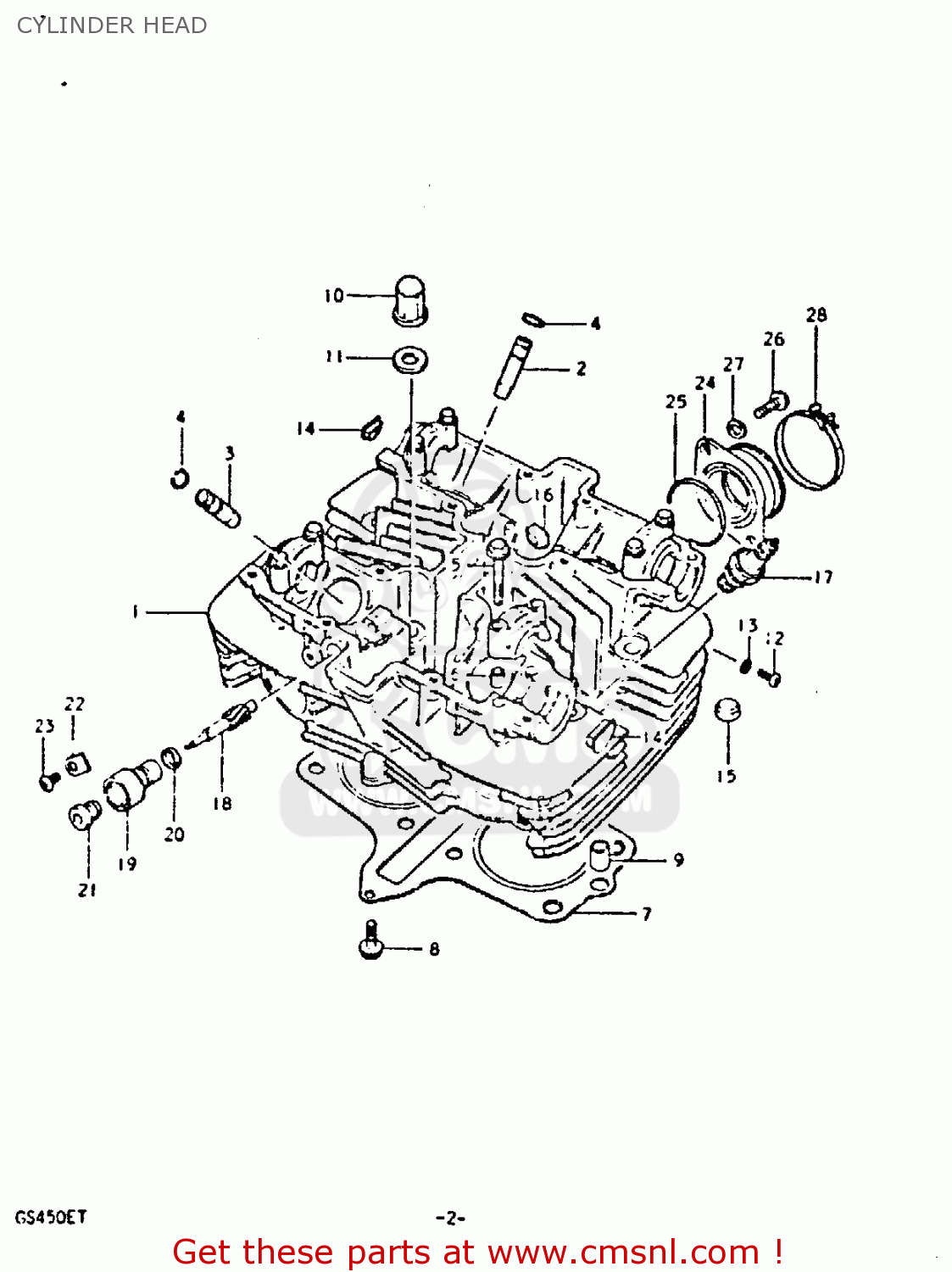

CYLINDER HEAD

ref

part #

description

quantity

1

1110044830
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 382.50

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114144100
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 117.00

8

0151706308
ref: 8

BOLT

€ 2.00

9

0421111189
ref: 9

PIN

€ 2.00

10

0915910026
ref: 10

NUT

€ 6.00

11

0916810019
ref: 11

GASKET (NAS)

€ 3.50

12

0211205088
ref: 12

SCREW

€ 2.00

13

0916805010
ref: 13

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

14

0924123002
ref: 14

PLUG

€ 8.50

15

1115145000
ref: 15

PAD,CYLINDER HEAD

€ 3.00

16

1115245000
ref: 16

PAD

€ 3.50

17-1

0948200225
ref: 17-1

SPARK PLUG

€ 3.00

17-2

0948200196
ref: 17-2

SPARK PLUG W24ES-U

€ 3.50

18

2643145001
ref: 18

GEAR,TACHOMETER DRIVEN

€ 43.00

19

2644145000
ref: 19

SLEEVE,TACHOMETER DRIVE

€ 18.00

20

2645145000A
ref: 20

SEAL,TACHOMETER DRIVEN

€ 4.50

21

0928905002
ref: 21

SEAL,OIL(5X12X8)

€ 11.00

22

2644933000
ref: 22

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

23

0912805101
ref: 23

SCREW(5X12)

€ 1.50

24

1311044001
ref: 24

PIPE,INTAKE

€ 40.00

25

0928040003
ref: 25

O-RING (D:2.4 ID:39.7)

€ 3.50

26

0211206208
ref: 26

SCREW

€ 2.00

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

0940254303
ref: 28

CLAMP

€ 4.00
