CYLINDER

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

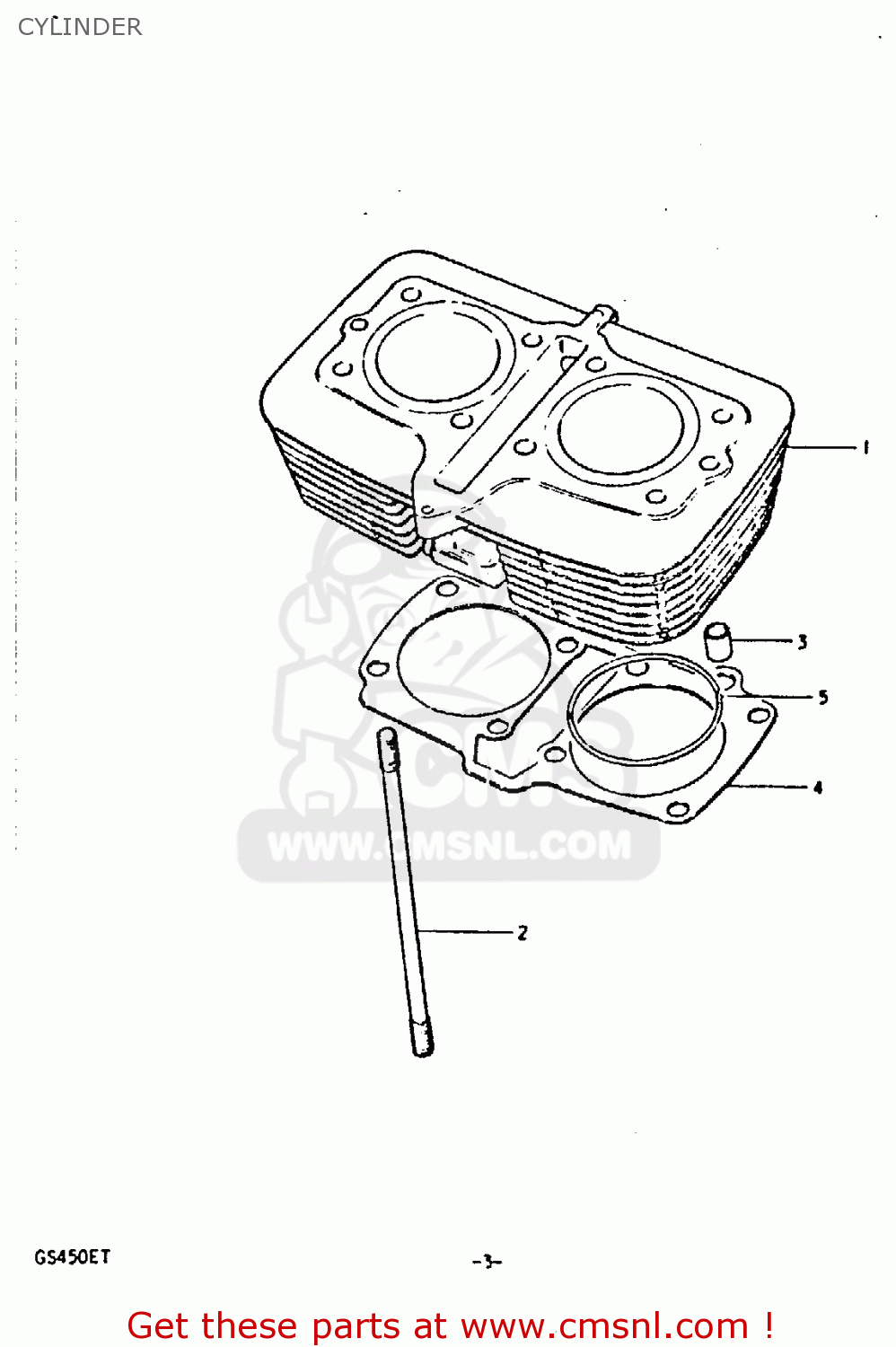

Cylinder diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

CYLINDER GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

CYLINDER GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1121044100
ref: 1

CYLINDER

€ 522.00

2

0910810028
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4-1

1124144100
ref: 4-1

GASKET,CYLINDER (MCA)

€ 12.50

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00
