HEADLAMP (E4)

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

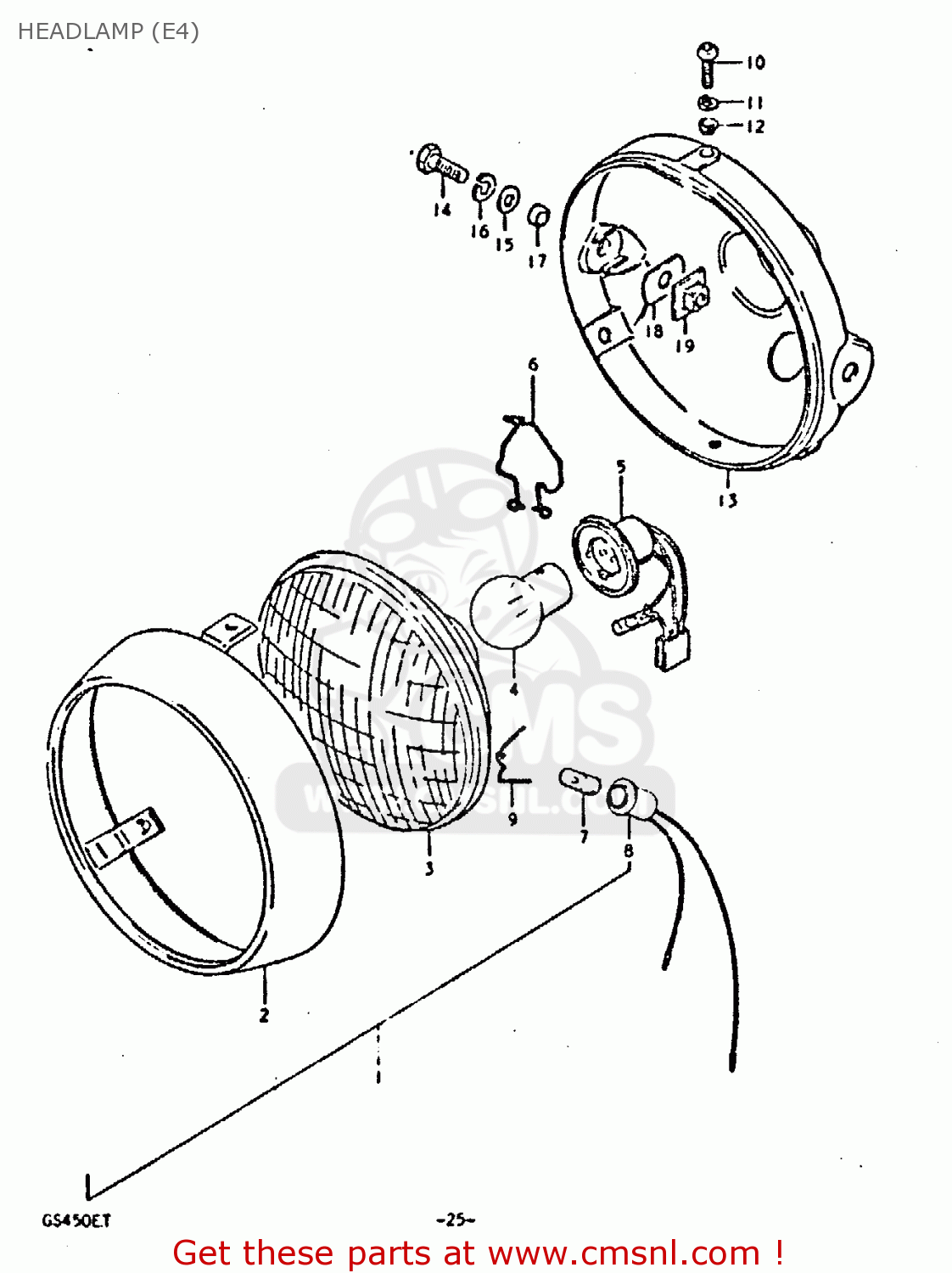

Headlamp (e4) diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

HEADLAMP (E4) GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
HEADLAMP (E4) GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
HEADLAMP (E4) GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3510044630
ref: 1
HEADLAMP ASSY
€ 0.00
2
3511144630
ref: 2
RIM
3511144630
€ 46.50
3
3512118650
ref: 3
UNIT
€ 0.00
4
0947112047
ref: 4
PHILIPS NO. 12725/86
BULB
€ 0.00
5
3517136640
ref: 5
SOCKET
€ 0.00
6
3517228660
ref: 6
CLAMP,HEADLAMP
3517228660
€ 7.00
7
0947112032
ref: 7
PHILIPS NO. 12929
BULB
€ 6.00
8
3611828660
ref: 8
SOCKET
3611828660
€ 11.50
9
3512811030
ref: 9
SPRING,HEAD LA
3512811030
€ 2.50
10
0912505022
ref: 10
SCREW
0912505022
€ 3.50
11
0916205003
ref: 11
WASHER,LOCK
0916205003
€ 2.00
12
0916906021
ref: 12
WASHER
0916906021
€ 2.50
13
5181144000291
ref: 13
HOUSING,HEADLAMP(BLACK)
5181144000291
€ 63.00
14
0120408257
ref: 14
BOLT
0120408257
€ 2.00
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16
0832121088
ref: 16
LOCK WASHER
0832121088
€ 2.00
17
0918008030
ref: 17
SPACER (8.8X12X7)
0918008030
€ 3.50
18
0932912002
ref: 18
CUSHION
0932912002
€ 3.00
19
5186045000
ref: 19
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
