REAR SWINGING ARM

GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

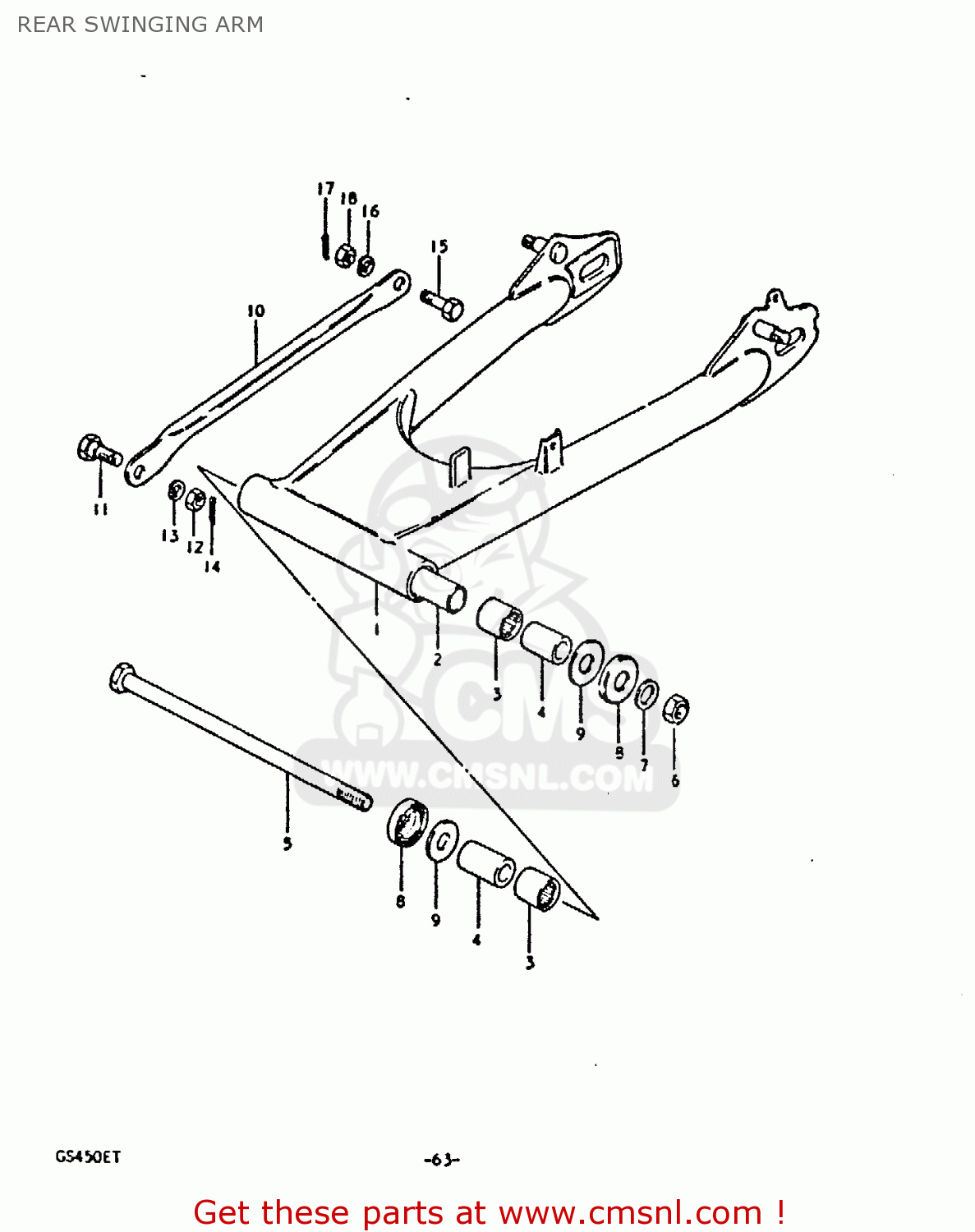

Rear swinging arm diagram GS450E 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

6110044820019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 180.00

6128144001
ref: 2

SPACER,SWINGINGARM CTR

€ 12.00

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

6125145001
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

6121131001
ref: 5

SHAFT,REAR SWING ARM

€ 62.50

0831921148
ref: 6

NUT 14MM

€ 3.00

0832211148
ref: 7

WASHER

€ 2.00

6126245002
ref: 8

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0916014020
ref: 9

WASHER(14.2X34X1)

€ 2.50

10-1

6431144000
ref: 10-1
FOR CAST WHEELS

TORQUE LINK,REAR

€ 13.00

10-2

6431131001
ref: 10-2
FOR SPOKE WHEELS

TORQUE LINK,REAR

€ 28.00

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

0831022108
ref: 12

NUT

€ 2.50

0832121108
ref: 13

LOCK WASHER

€ 2.00

0411120158
ref: 14

PIN

€ 1.50

0910110003
ref: 15

BOLT(10X31)

€ 4.00

0832121108
ref: 16

LOCK WASHER

€ 2.00

0411120158
ref: 17

PIN

€ 1.50

0831011108
ref: 18

NUT

€ 2.50
